MAX3625B
Low-Jitter, Precision Clock
Generator with Three Outputs
________________________________________________________________ Maxim Integrated Products 1
19-4978; Rev 0; 10/09
For pricing, delivery, and ordering information, please contact Maxim Direct at 1-888-629-4642,
or visit Maxim’s website at www.maxim-ic.com.
EVALUATION KIT
AVAILABLE
General Description
The MAX3625B is a low-jitter, precision clock generator
optimized for networking applications. The device inte-
grates a crystal oscillator and a phase-locked loop
(PLL) clock multiplier to generate high-frequency clock
outputs for Ethernet, 10G Fibre Channel, and other net-
working applications.
Maxim’s proprietary PLL design features ultra-low jitter
and excellent power-supply noise rejection, minimizing
design risk for network equipment.
The MAX3625B has three LVPECL outputs. Selectable
output dividers and a selectable feedback divider allow
a range of output frequencies.
Applications
Ethernet Networking Equipment
Fibre Channel Storage Area Network
Features
♦ Crystal Oscillator Interface: 24.8MHz to 27MHz
♦ CMOS Input: Up to 320MHz
♦ Output Frequencies
Ethernet: 62.5MHz, 125MHz, 156.25MHz, 312.5MHz
10G Fibre Channel: 159.375MHz, 318.75MHz
♦ Low Jitter
0.14ps RMS (1.875MHz to 20MHz)
0.36ps RMS (12kHz to 20MHz)
♦ Excellent Power-Supply Noise Rejection
♦ No External Loop Filter Capacitor Required
Ordering Information
CRYSTAL
OSCILLATOR
LVCMOS
DIVIDERS:
M = 24, 25
NA = 10, 2, 4, 5
NB = 10, 2, 4, 5
REF_IN
X_IN
X_OUT
0
1
0
1 PFD FILTER
RESET
RESET
RESET LOGIC/POR
DIVIDER
M
RESET
DIVIDER
NB
DIVIDER
NA
VCO
620MHz TO 648MHz
LVPECL
BUFFER
QA
QA_OE
QA
LVPECL
BUFFER
QB1
QB1
LVPECL
BUFFER
QB0
FB_SEL
QB_OE
QB0
SELB[1:0]
SELA[1:0] IN_SEL BYPASS MR
MAX3625B
SELA[1:0]
RESET
SELB[1:0]
FB_SEL
BYPASS
33pF
27pF

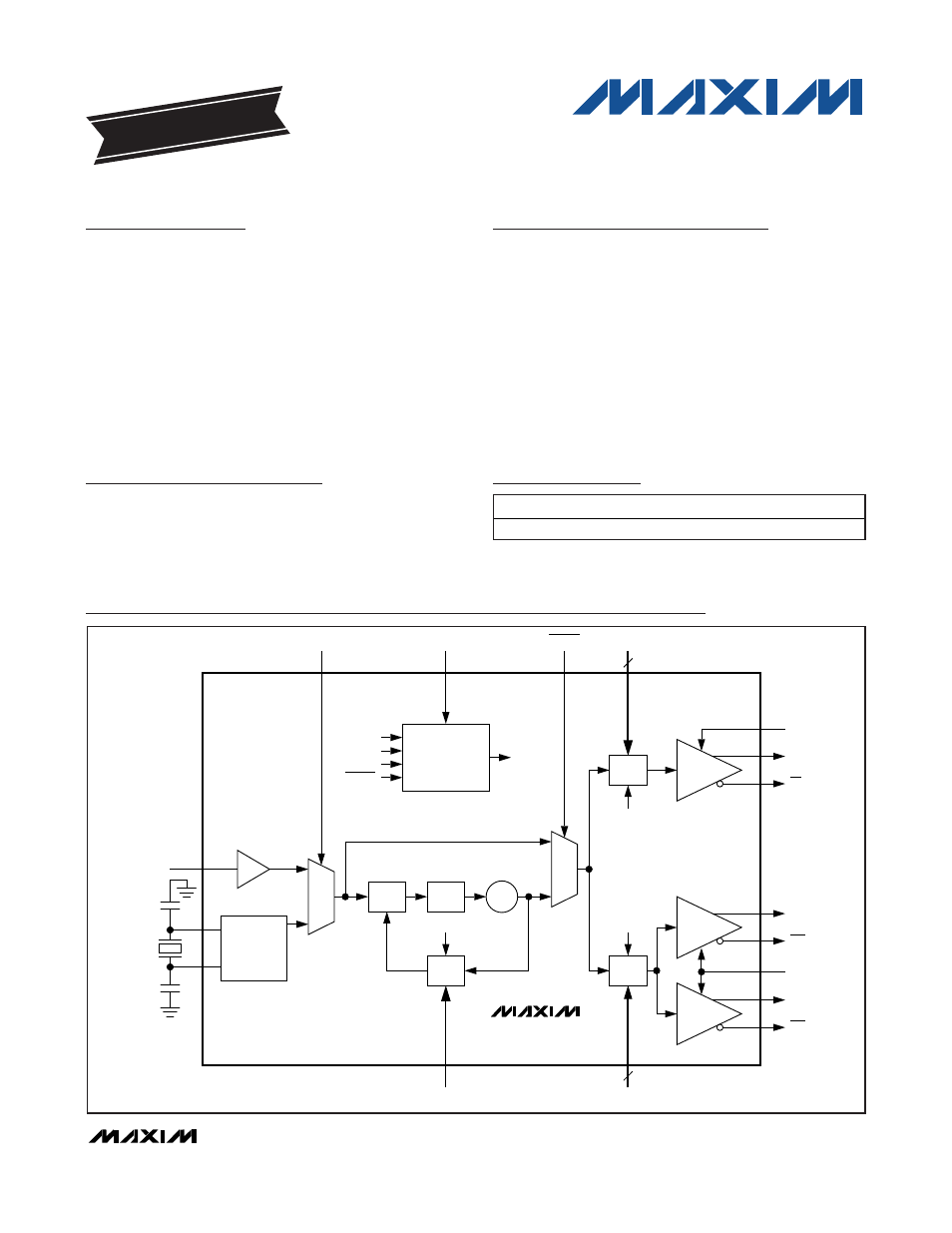

Block Diagram
+ Denotes a lead(Pb)-free/RoHS-compliant package.
* EP = Exposed pad. Typical Application Circuit appears at end of data sheet.
PART TEMP RANGE PIN-PACKAGE
MAX3625BEUG+ -40
°C to +85°C 24
TSSOP-EP*
