Technical
Description
Atmel’s FingerChip biometric module includes the AT77C101B-CB02V FingerChip sen-
sor (8-bit parallel interface) connected through a flex cable to the module itself.
Module Size and Length
of Flex
The board size of the module is 55 mm x 72 mm. It has three screw holes for easy fixing
to the motherboard or casing of the final system.
The flexible cable is 5 cm long. It is a single straight cable made of copper.

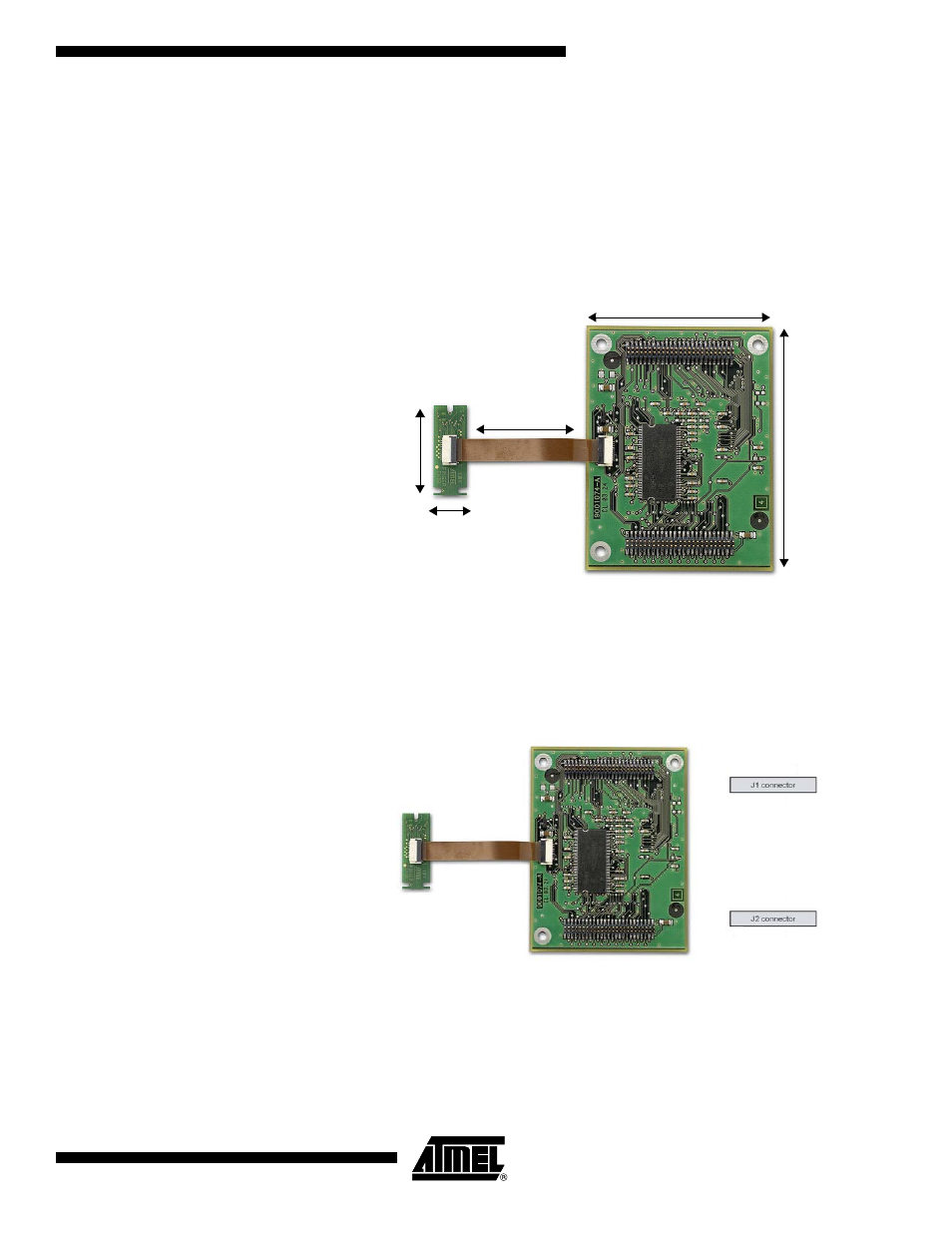

Figure 3. AT77SM0101BCB02VKE Board Dimensions
The dimensions of the sensor are 26.6 mm x 9.85 mm x 2.6 mm for the PCB. The die
size is 1.7 mm x 17.3 mm.
Description of
Motherboard Interface
Figure 4. Motherboard Interface
55 mm
72 mm
50 mm
9.85 mm
26.6 mm
49
50
49
50
1
2
1
2
