DS1202, DS1202S
032697 11/11

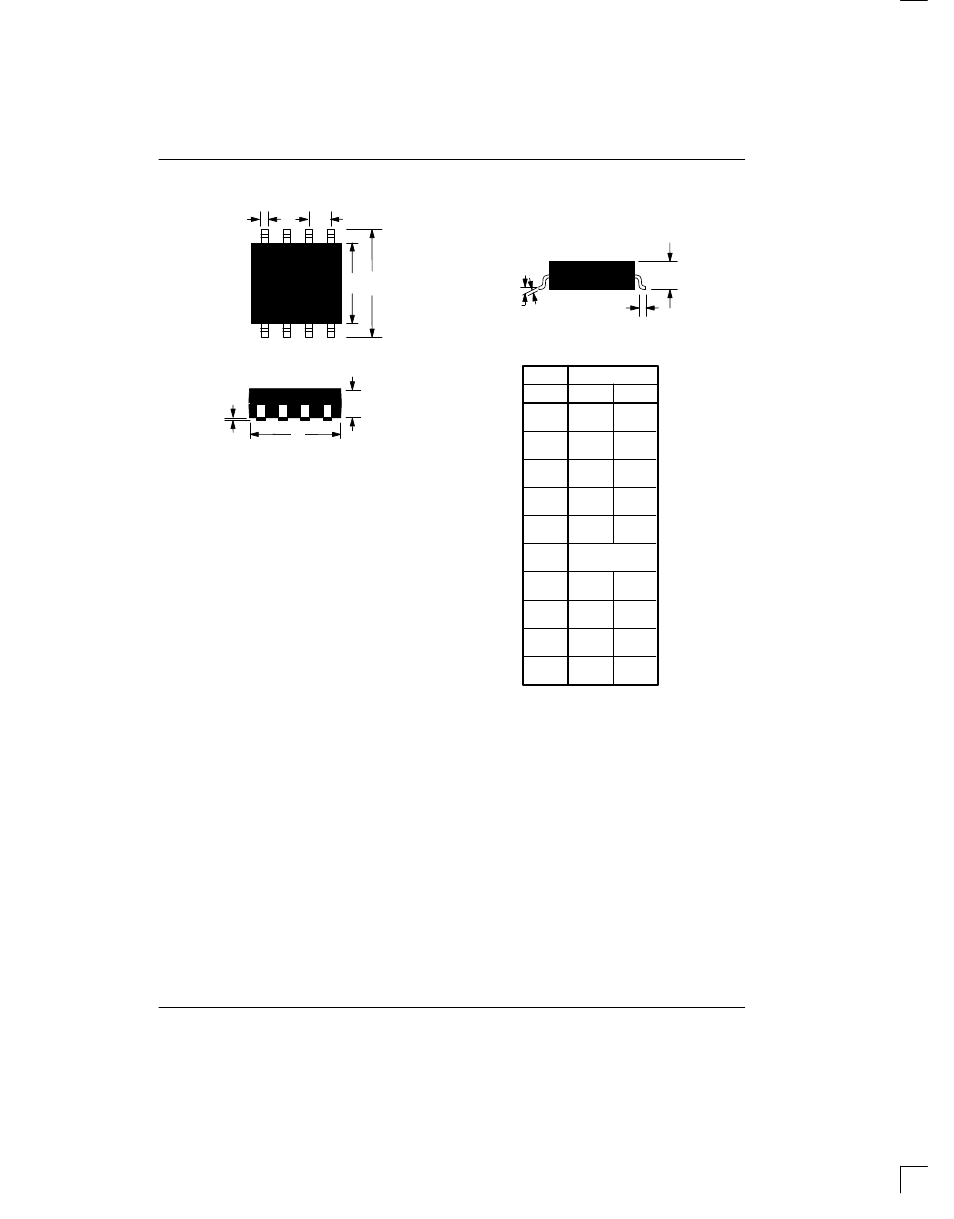

DS1202S8 8–PIN SOIC 200 MIL
1
B
J
K G
C
E
0–8 deg. typ.
DIM MIN MAX
8–PIN PKG
A IN. 0.203 0.213
MM 5.16 5.41
B IN. 0.203 0.213
MM 5.16 5.41
C IN. 0.070 0.074
MM 1.78 1.88
E IN. 0.004 0.010
MM 0.102 0.390
F IN. 0.074 0.84
MM 1.88 2.13
G IN. 0.050 BSC
MM 1.27 BSC
H IN. 0.302 0.318
MM 7.67 8.07
J IN. 0.006 0.010
MM 0.152 0.254
K IN. 0.013 0.020
MM 0.33 0.508
L IN. 0.19 0.030
MM 4.83 0.762
A
H
L
F
