DS1202, DS1202S
032697 10/11

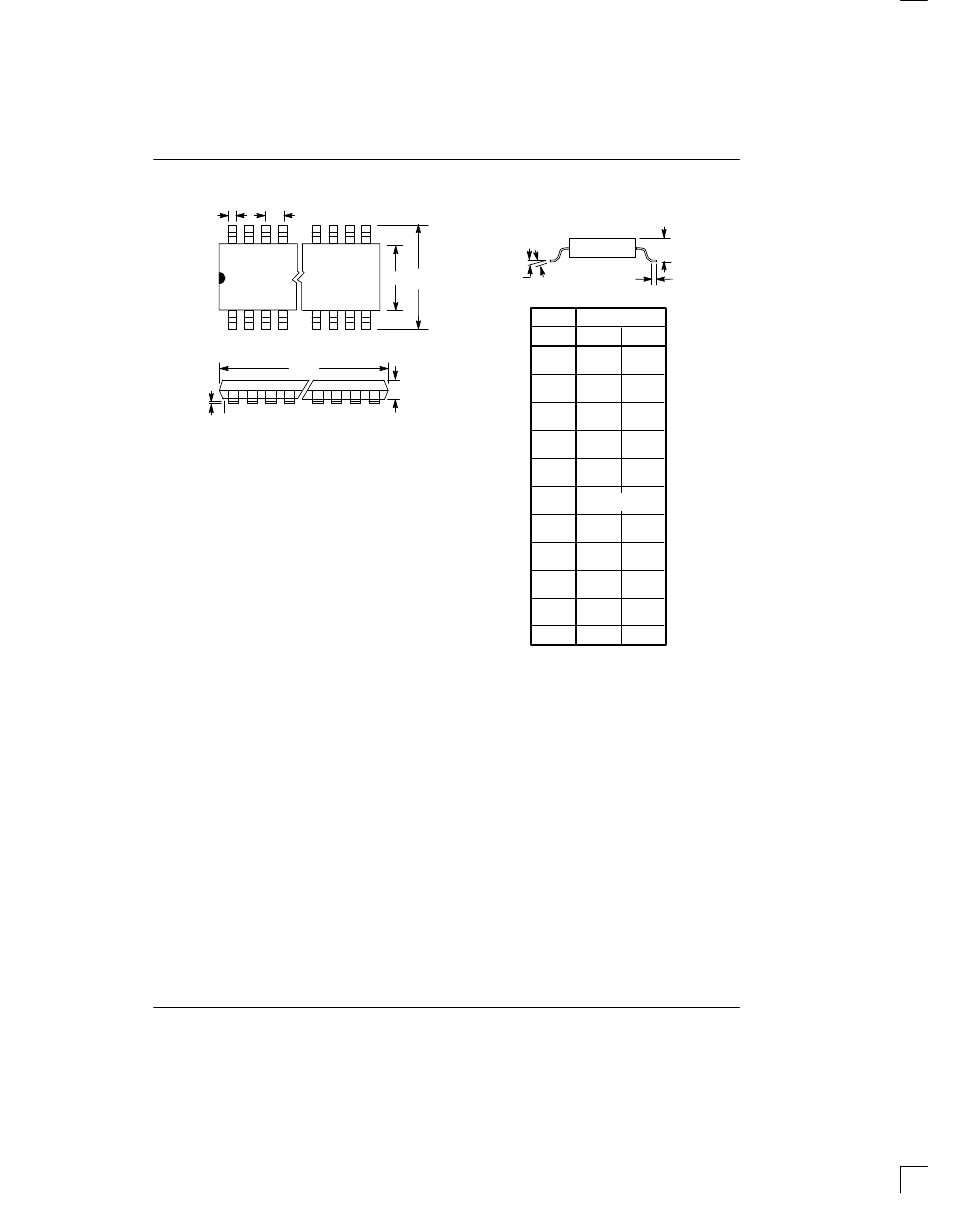

DS1202S SERIAL TIMEKEEPER 16–PIN SOIC
DIM MIN MAX
16–PIN PKG
A IN. 0.500 0.511
MM 12.70 12.99
B IN. 0.290 0.300
MM 7.37 7.65
C IN. 0.089 0.095
MM 2.26 2.41
E IN. 0.004 0.012
MM 0.102 0.30
F IN. 0.094 0.105
MM 2.38 2.68
G IN.
MM
H IN. 0.398 0.416
MM 10.11 10.57
J IN. 0.009 0.013
MM 0.229 0.33
K IN. 0.013 0.019
MM 0.33 0.48
L IN 0.016 0.040
MM 0.406 1.20
phi 0 ° 8 °
A
F
C
E
phi
J
G K
L H B
1
0.050 BSC
1.27 BSC
