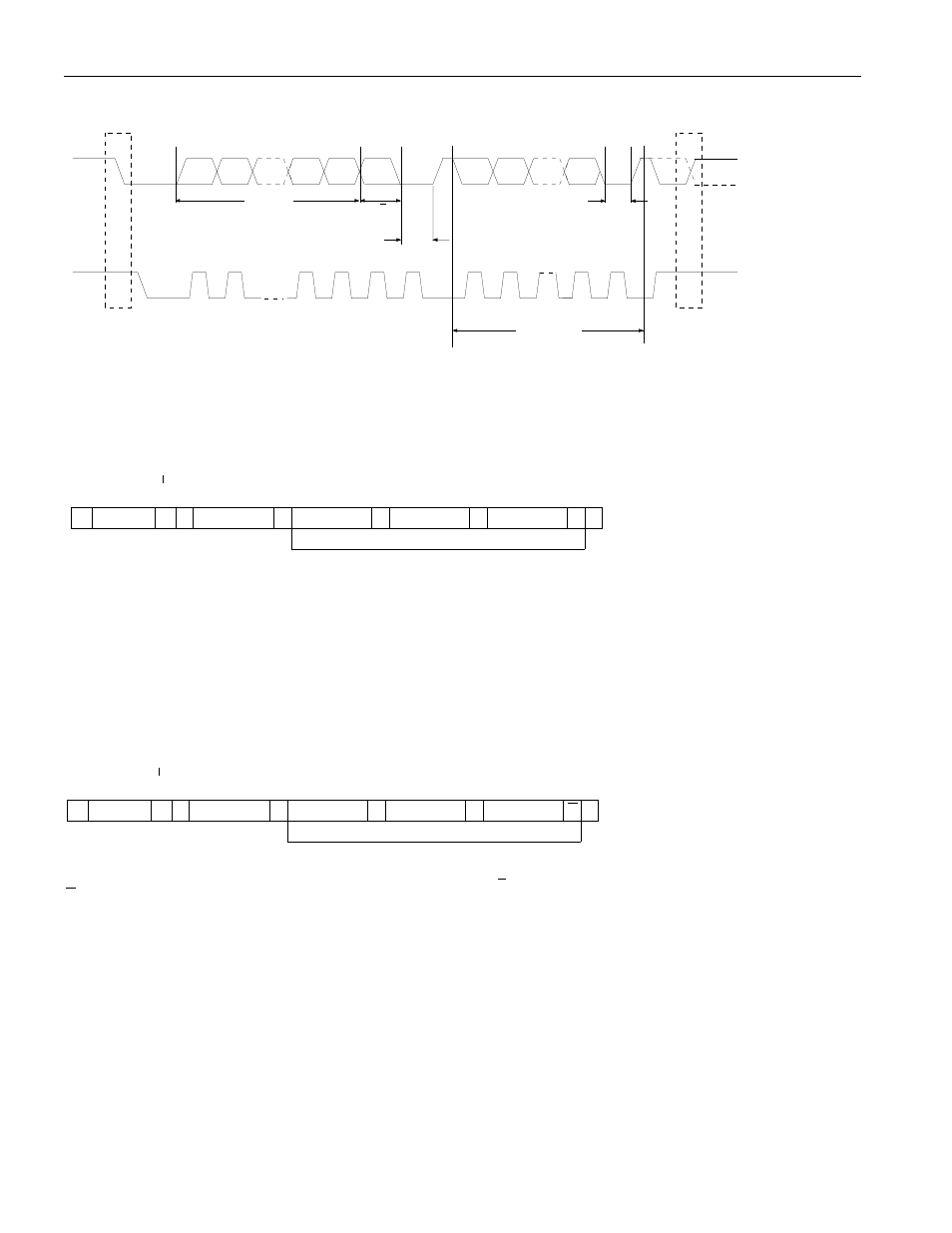

Figure 6. Data Transfer on 2-Wire Serial Bus
MSB
slave address
R/W
direction
bit
SDA
SCL
START
CONDITION
1 2 6 7 8 9 1 2 8 9
STOP CONDITION
OR
REPEATED
START CONDITION
3 - 8
acknowledgement
signal from receiver
acknowledgement
signal from receiver
ACK ACK
repeated if more bytes
are transferred
Figure 7. Data Write: Slave Receiver Mode
Figure 8. Data Read: Slave Transmitter Mode
A XXXXXXXX A 1101000 S 0 XXXXXXXX A XXXXXXXX A XXXXXXXX A P
S - START
A - ACKNOWLEDGE
P - STOP
W
>
R/W - READ/WRITE OR DIRECTION BIT ADDRESS = D0H
DATA TRANSFERRED
(X+1 BYTES + ACKNOWLEDGE)
A XXXXXXXX A 1101000 S 1 XXXXXXXX A XXXXXXXX A XXXXXXXX A P
S - START
A - ACKNOWLEDGE
P - STOP
A - NOT ACKNOWLEDGE
W
>
R/W - READ/WRITE OR DIRECTION BIT ADDRESS = D1H
DATA TRANSFERRED
(X+1 BYTES + ACKNOWLEDGE); NOTE: LAST DATA BYTE IS
FOLLOWED BY A NOT ACKNOWLEDGE (A) SIGNAL)
