Ds1672, Low-voltage serial timekeeping chip, General description

1 of 12
100302
Note: Some revisions of this device may incorporate deviations from published specifications known as errata. Multiple revisions of any device
may be simultaneously available through various sales channels. For information about device errata, click here:
GENERAL DESCRIPTION
The DS1672 low-voltage serial timekeeping chip
incorporates a 32-bit counter and power-
monitoring functions. The 32-bit counter is
designed to count seconds and can be used to
derive time-of-day, week, month, month, and
year by using a software algorithm. A precision,
temperature-compensated reference and
comparator circuit monitors the status of V
CC
.
When an out-of-tolerance condition occurs, an
internal power-fail signal is generated that forces
the reset to the active state. When V
CC
returns to
an in-tolerance condition, the reset signal is kept
in the active state for 250ms to allow the power
supply and processor to stabilize.
FEATURES
§ 32-bit counter
§ 2-wire serial interface
§ Automatic power-fail detect and switch
circuitry
§ Power-fail reset output
§ Low-voltage oscillator operation (1.3V min)
§ Trickle charge capability
§ Underwriters Laboratory (UL) recognized
ORDERING INFORMATION
PART
TEMP
RANGE
PIN-
PACKAGE
TOP
MARK
DS1672-2
-40°C to +85°C
8 0.300" DIP
DS1672-2
DS1672-3
-40°C to +85°C
8 0.300" DIP
DS1672-3
DS1672-33
-40°C to +85°C
8 0.300" DIP
DS1672-33
DS1672S-2
-40°C to +85°C
8 0.150" SO
DS1672-2
DS1672S-3
-40°C to +85°C
8 0.150" SO
DS1672-3
DS1672S-33
-40°C to +85°C
8 0.150" SO
DS1672-33
DS1672U-2
-40°C to +85°C
8 µSOP
1672rr-2
DS1672U-3
-40°C to +85°C
8 µSOP
1672rr-22
DS1672U-
33
-40°C to +85°C
8 µSOP
1672rr-33
PIN CONFIGURATION
Package Dimension Information
DS1672
Low-Voltage Serial Timekeeping Chip
www.maxim-ic.com
www.maxim-ic.com

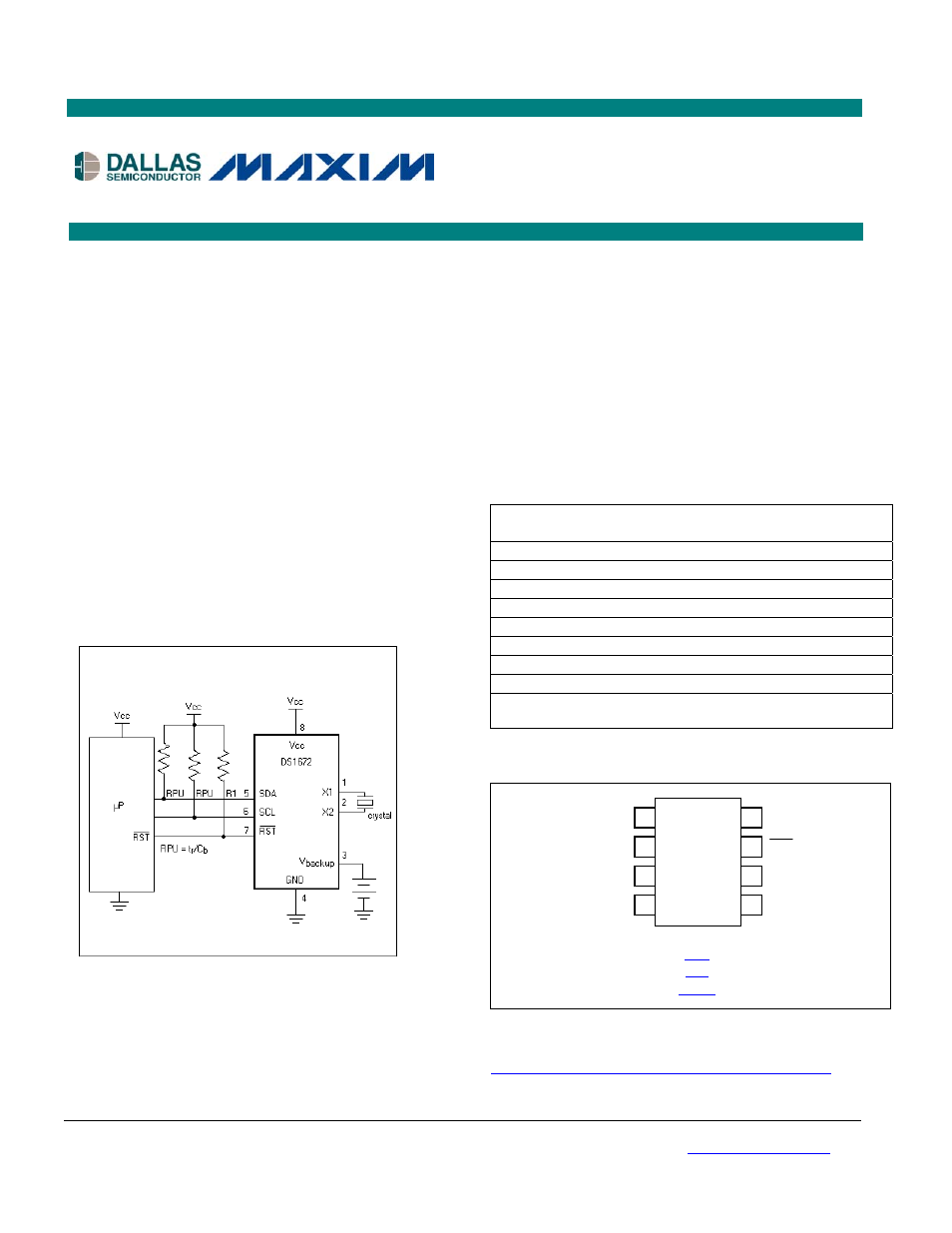

TYPICAL OPERATING CIRCUIT
1
2
3
4
8
7
6
5
V
CC
RST
SCL
SDA
X1
X2
V
BACKUP
GND
TOP VIEW
