DS1390/DS1391/DS1392/DS1393
The user determines diode and resistor selection
according to the maximum current desired for battery
or super cap charging. The maximum charging current
can be calculated as illustrated in the following exam-
ple. Assume that a system power supply of 3.3V is
applied to V
CC and a super cap is connected to
V BACKUP . Also, assume that the trickle charger has
been enabled with a diode and resistor R2 between
V CC and V BACKUP . The maximum current I MAX would
therefore be calculated as follows:
I MAX = (3.3V - diode drop) / R2 ≈ (3.3V - 0.7V) /
2k Ω ≈ 1.3mA
As the super cap changes, the voltage drop between
V
CC
and V
BACKUP
decreases and therefore the charge
current decreases.
Low-Voltage SPI/3-Wire RTCs with
Trickle Charger
18 ____________________________________________________________________
R1
250 Ω
R2
2k Ω
R3
4k Ω
V CC V BACKUP
BIT 7 BIT 6 BIT 5 BIT 4 BIT 3 BIT 2 BIT 1 BIT 0
TCS3 TCS2 TCS1 TCS0 DS1 DS0 ROUT1 ROUT0
TRICKLE-CHARGE REGISTER (8Fh WRITE, 0Fh READ)
1 0F 16 SELECT
NOTE: ONLY 1010b ENABLES CHARGER
1 OF 2
SELECT
1 OF 3
SELECT
TCS 0-3 = TRICKLE-CHARGE SELECT
DS
0-1
= DIODE SELECT
ROUT
0-1
= RESISTOR SELECT

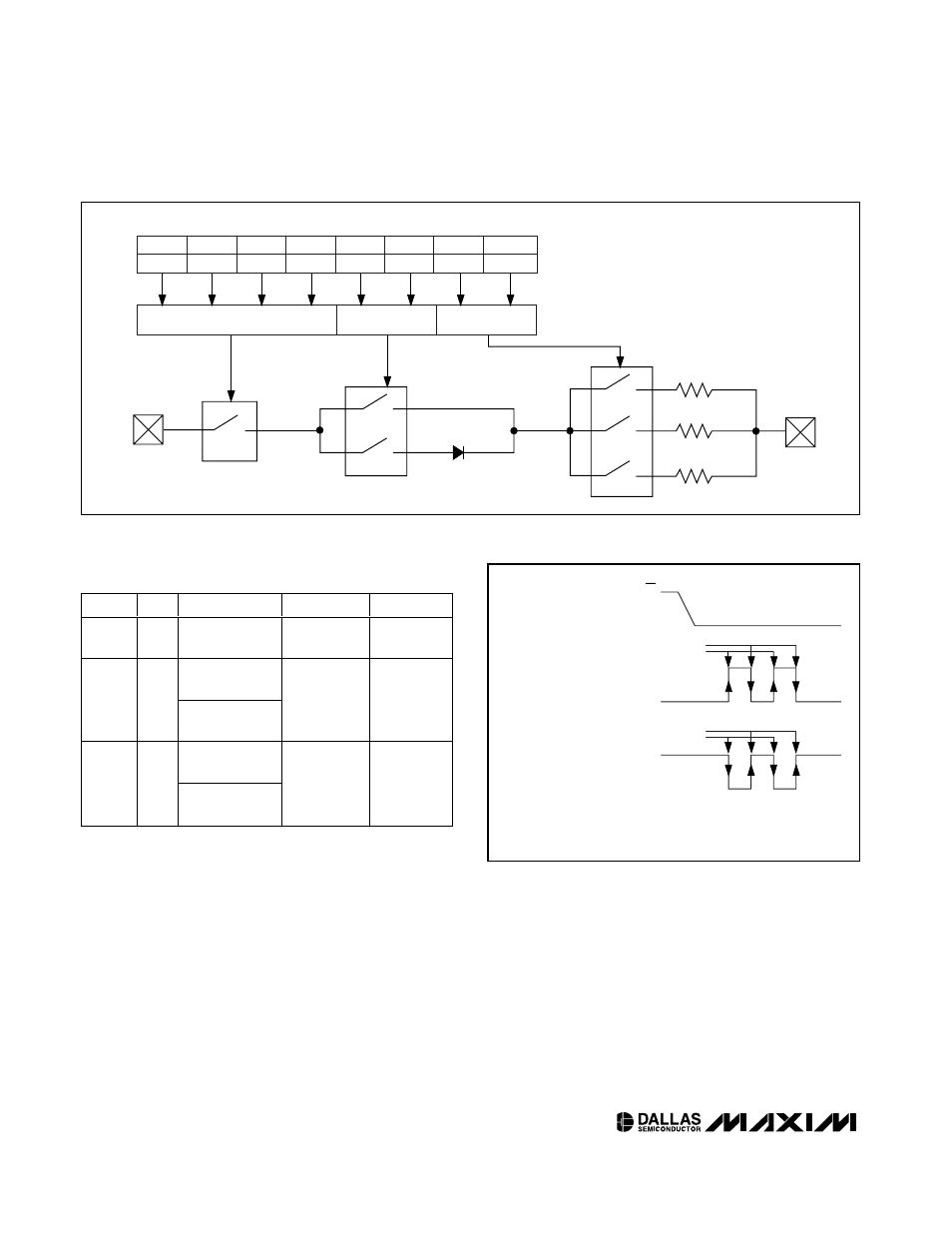

Figure 9. DS1390/DS1391 Programmable Trickle Charger
CS
SCLK WHEN CPOL = 0
SCLK WHEN CPOL = 1
DATA LATCH (WRITE/INTERNAL STROBE)
SHIFT DATA OUT (READ)
DATA LATCH (WRITE/INTERNAL STROBE)
SHIFT DATA OUT (READ)
NOTE 1: CPHA BIT POLARITY (IF APPLICABLE) MAY NEED TO BE SET ACCORDINGLY.
NOTE 2: CPOL IS A BIT SET IN THE MICROCONTROLLER'S CONTROL REGISTER.
NOTE 3: SDO REMAINS AT HIGH IMPEDANCE UNTIL 8 BITS OF DATA ARE READY TO BE
SHIFTED OUT DURING A READ.
Figure 10. Serial Clock as a Function of Microcontroller Clock-
Polarity Bit
MODE CSZ SCLK SDI SDO
Disable H
Input
Disabled
Input
Disabled
High
Impedance
CPOL* = 1,
SCLK Rising
Write L
CPOL = 0,
SCLK Falling
Data Bit
Latch
High
Impedance
CPOL = 1,
SCLK Falling
Read L
CPOL = 0,
SCLK Rising
X
Next Data
Bit Shift**
Table 6. SPI Pin Function
*CPOL is the clock-polarity bit set in the control register of the
host microprocessor.
**SDO remains at high impedance until 8 bits of data are ready to
be shifted out during a read.
