Development Tools
• Voyager Emulation Platform (ATV4) to Support Software Development
• IAR Embedded Workbench ® V3.20 Debugger or Atmel’s AVR Studio ® Version 4.07 or Above
• Software Libraries and Application Notes
Description
The AT90SC9618RT is a low-power, high-performance, 8/16-bit microcontroller with ROM program memory and EEPROM
data memory, based on the secureAVR RISC architecture. By executing powerful instructions in a single clock cycle, the
AT90SC9618RT achieves throughputs close to 1 MIPS per MHz. Its Harvard architecture includes 32 general purpose
working registers directly connected to the ALU, allowing two independent registers to be accessed in one single instruc-
tion executed in one clock cycle.
The AT90SC9618RT uses the secureAVR that allows the linear addressing of up to 8M bytes of code and up to 16M bytes
of data as well as a number of new functional and security features.
The AT90SC9618RT includes 18K bytes of Atmel’s high density, non volatile memory.
Additional security features include power and frequency protection logic, logical scrambling on program data and
addresses, Power Analysis countermeasures and memory accesses controlled by a supervisor mode.

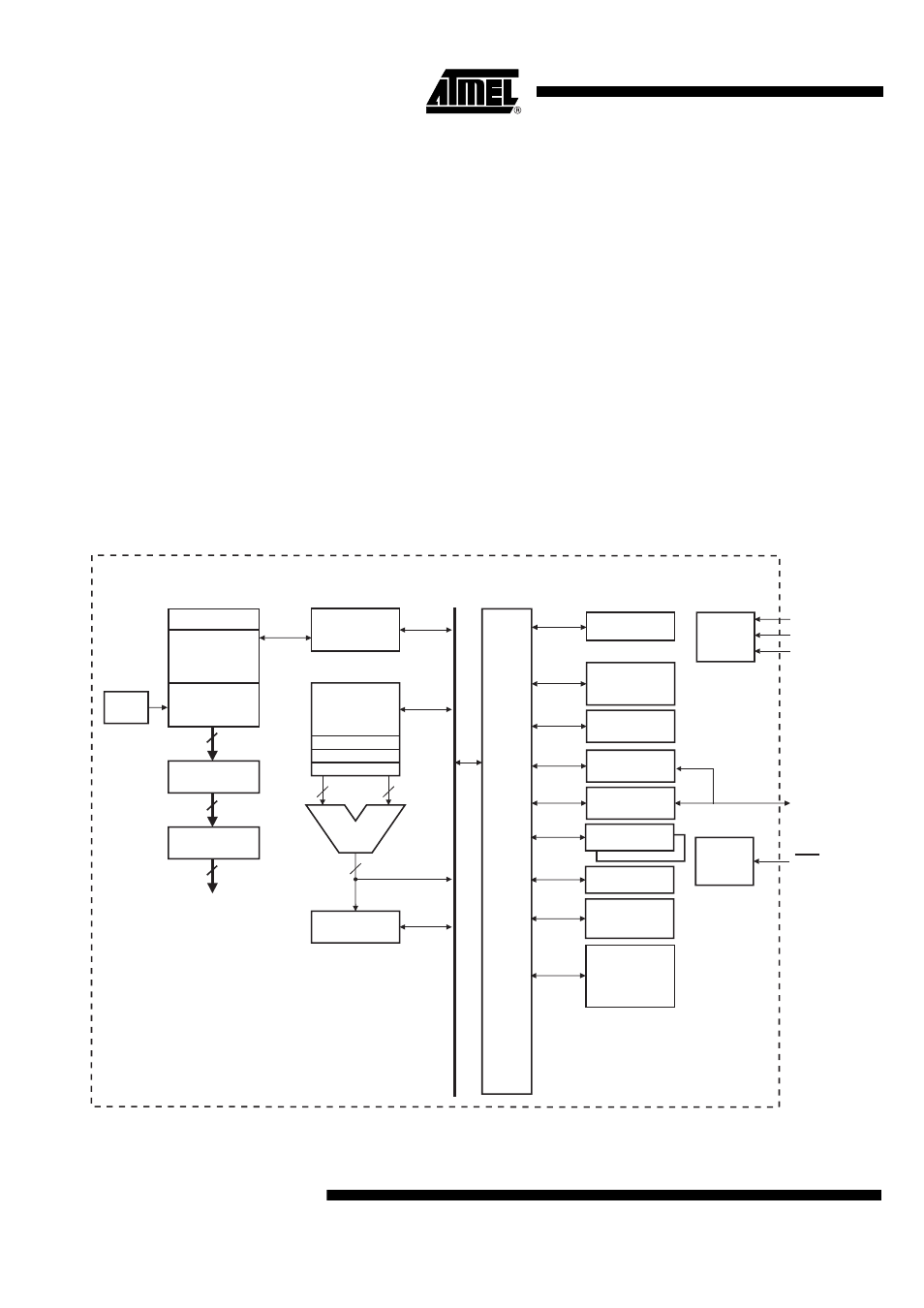

Figure 1 shows the AT90SC9618RT secureAVR RISC Architecture.
Figure 1. AT90SC9618RT secureAVR RISC Architecture
Instruction
Decoder
Program
Memory
Instruction
Register
Access
Control
General
Purpose
Registers
X
Y
Z
Status
Register
RAM
Data Memory
Interrupt
Unit
ISO 7816
I/O Port 0
Timer
Control
Lines
ALU
EEPROM
User Memory
OTP
PC
Secure
Control
V CC
GND
CLK
Access
Control
IN/OUT0
Data Bus
8-bit
RNG
16
16
16
8
8 8
DES
DPA Counter
measures
Reset
Circuit
RST
ISO 7816
Controller
CRC and
Checksum
Accelerator
