DS2422/DS2423
7 of 25

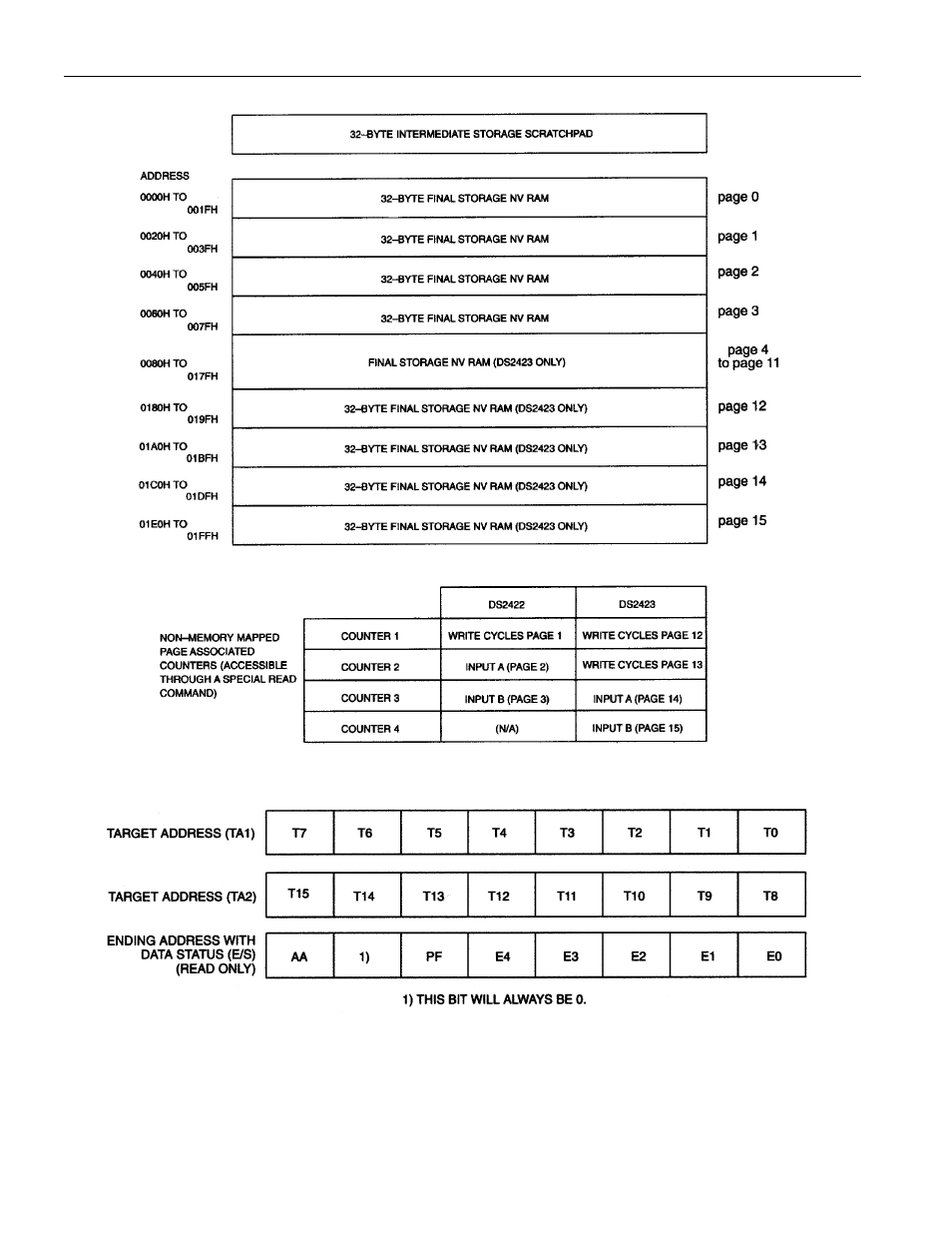

DS242X MEMORY MAP Figure 5
ADDRESS REGISTERS Figure 6
Read Memory [F0H]
The read memory command may be used to read the entire memory. After issuing the command, the
master must provide the 2-byte target address. After the two bytes, the master reads data beginning from
the target address and may continue until the end of memory, at which point logic 1s will be read. It is
