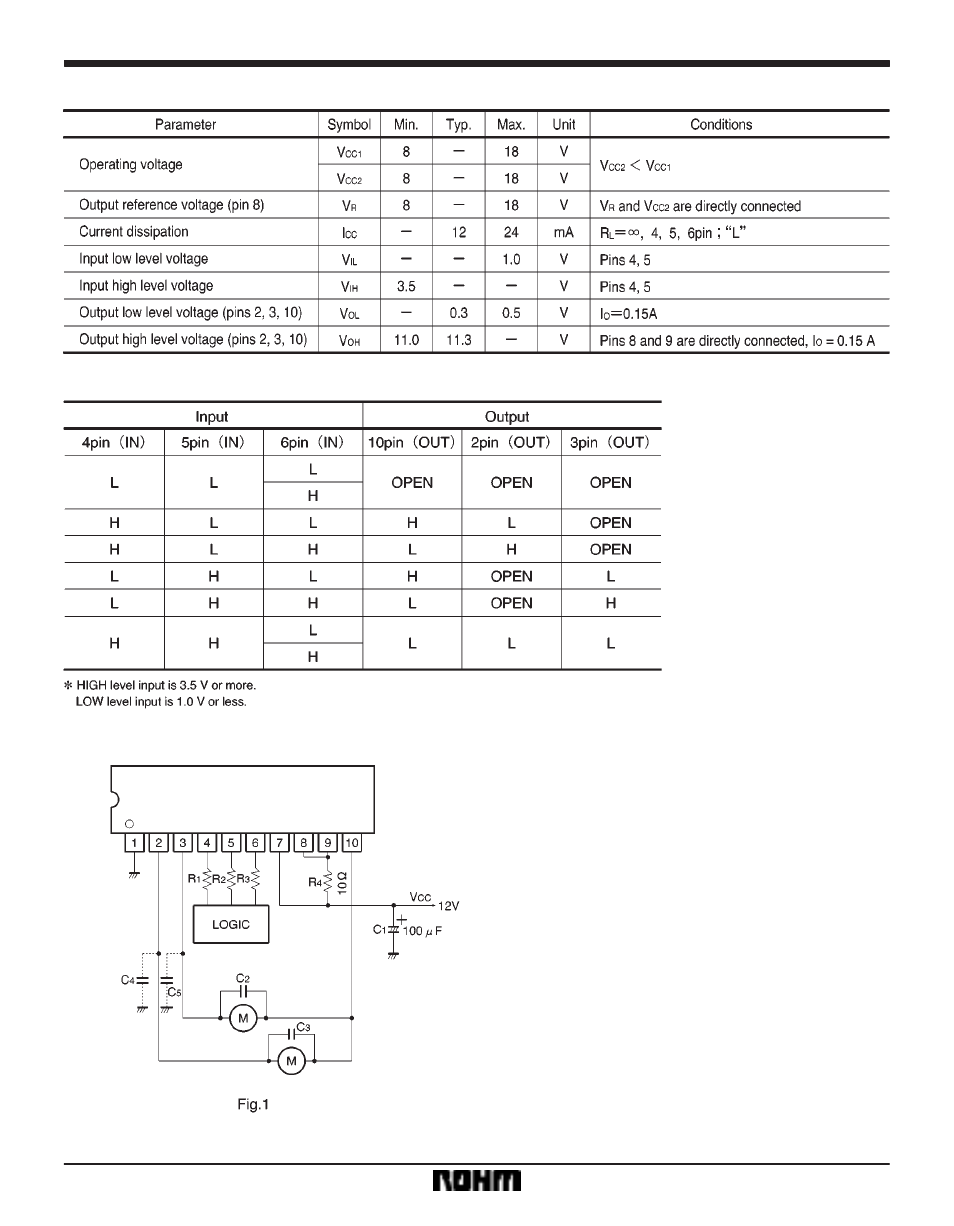

Motor driver ICs BA6259N
F
Electrical characteristics (unless otherwise noted, Ta = 25
_
C and V
CC
= 12V)
F
Input / output truth table
F
Application example
C
2
, C
3
: Capacitors for preventing parasitic oscillation.
Though the optimum capacitance depends on such PCB
arrangement factors as the power supply circuit, motor
characteristics, and conductor foil patterns, a range of
0.01
X
1
µ
F is recommended.
C
4
, C
5
: Capacitors for preventing parasitic oscillation.
They may or may not be required, depending on the PCB
arrangement. A capacitance range of 0.01
X
10
µ
F is rec-
ommended.
