Page 9
9
TH7841A
1998A–IMAGE–05/02

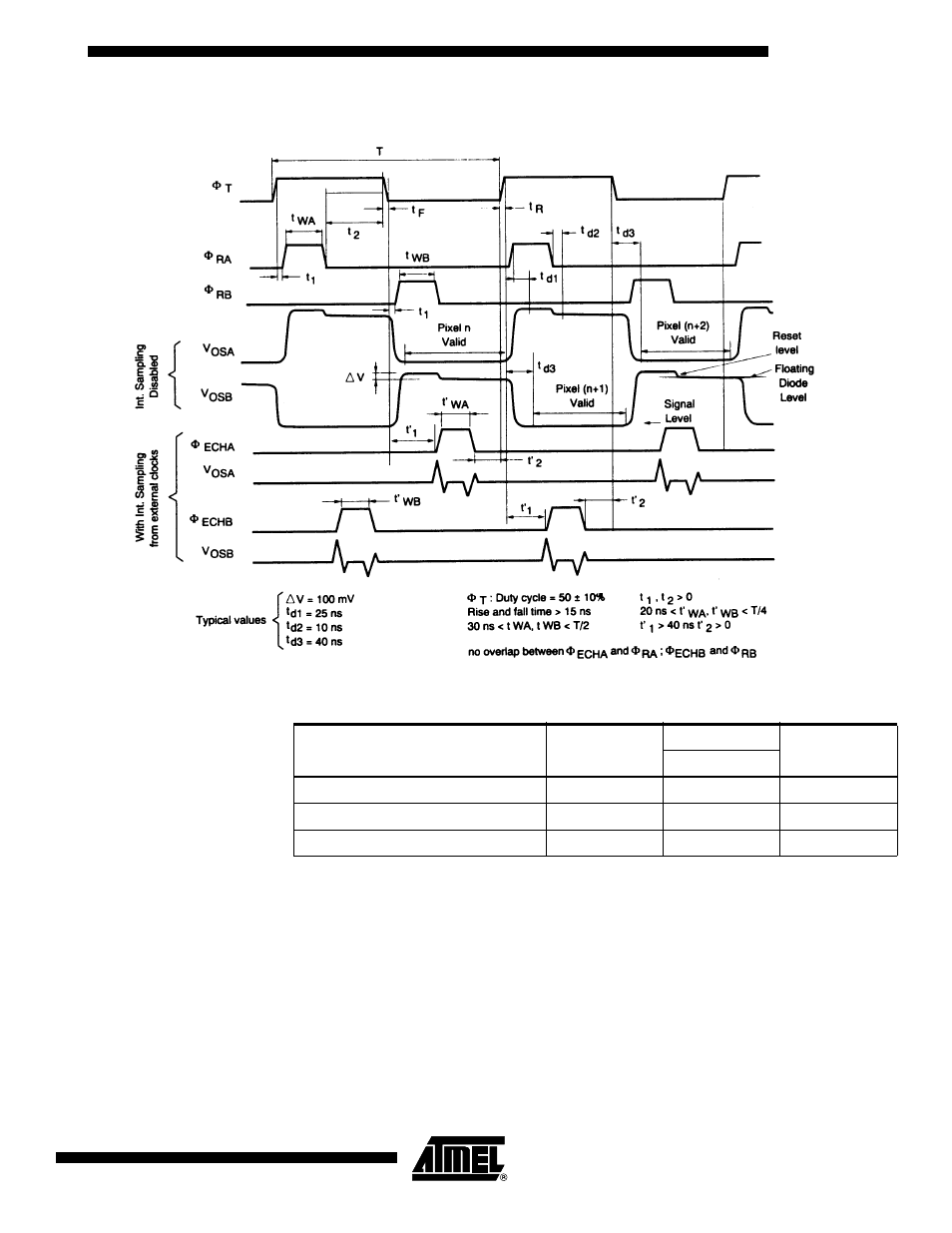

Figure 4. Timing Diagram — Clocks and Video Output Timing Diagram With and Without On-chip Sampling
Notes:
1. Electro-optical performances obtained with complementary modes are not guaran-
teed for standard products.
2. The Conversion factor is typically 1.8 µV/e-.
Table 8. Performance Improvement with External
Φ
RA
,
Φ
RB
Configuration
Parameter
Symbol
Values
Unit
(Typ)
Saturation Output Voltage
V
SAT
2.0
V
Responsivity
R
5.0
V/µJ/cm
2
Dynamic Range
DR
8,000
