2

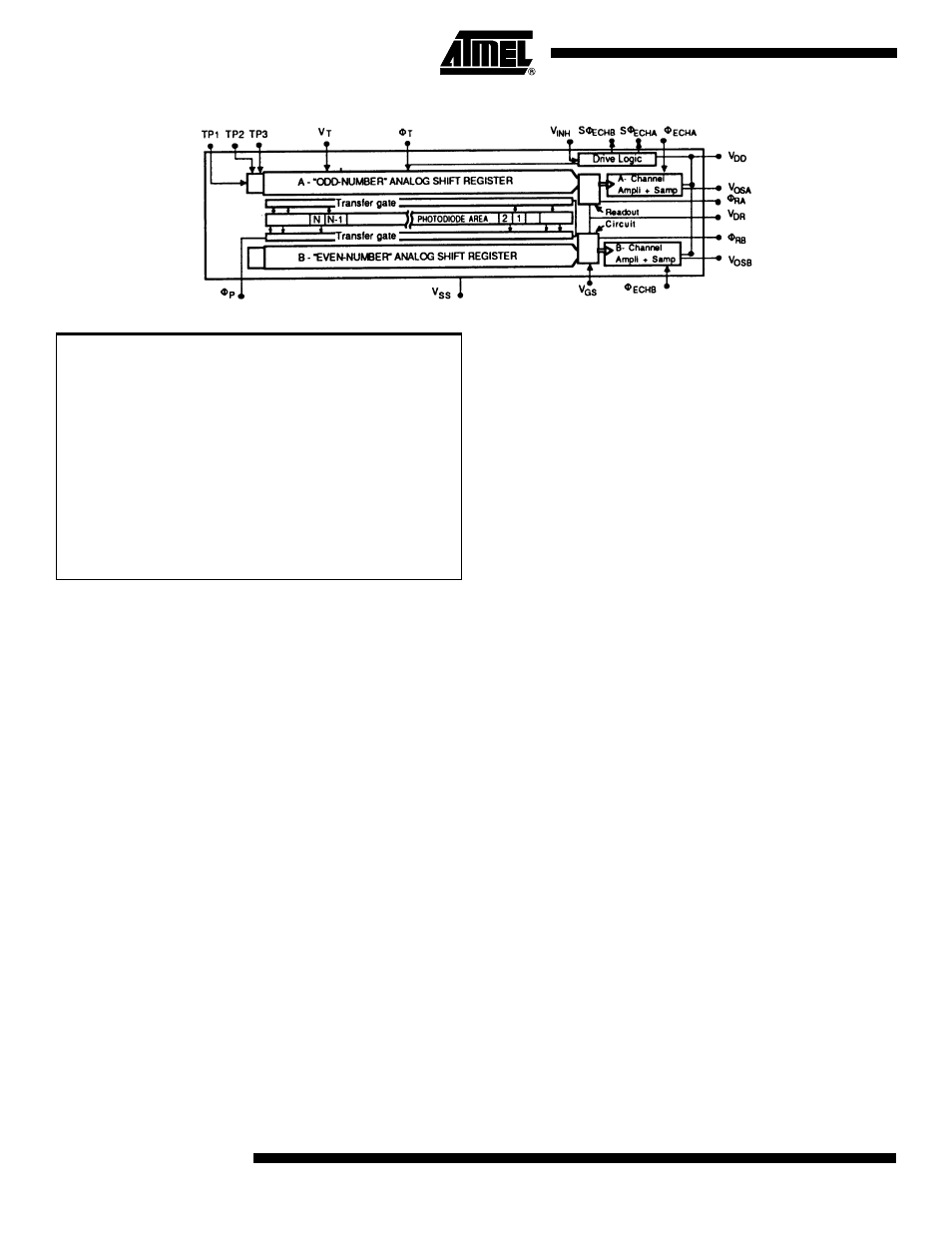

TH7841A
1998A–IMAGE–05/02
T
Operating Range
Operating range defines the temperature limits between which the functionality is guar-
anteed: 0°C to 70°C.
Operating
Precautions
Shorting the video output to V
SS
to V
DD
, even temporarily, can permanently damage the
output amplifier.
Absolute Maximum Ratings*
Storage Temperature ..................................... -55°C to +150°C *NOTICE: Stresses above those listed under ABSOLUTE
MAXIMUM RATINGS may cause permanent
device failure. Functionality at or above these
limits is not implied. Exposure to absolute maxi-
mum ratings for extended periods may affect
device reliability.
Operating Temperature ........................................0°C to +70°C
Thermal Cycling..........................................................15°C/mn
Maximum Voltages:
• Pins: 3, 5, 9, 10, 11, 13,
16, 19, 20, 21, 25, 27........................................-0.3V to +18V
• Pins: 12. 18 ......................................................-0.3V to +16V
• Pins: 14, 15, 28 ................................................................. 0V
