Page 10
10
TH7841A
1998A–IMAGE–05/02

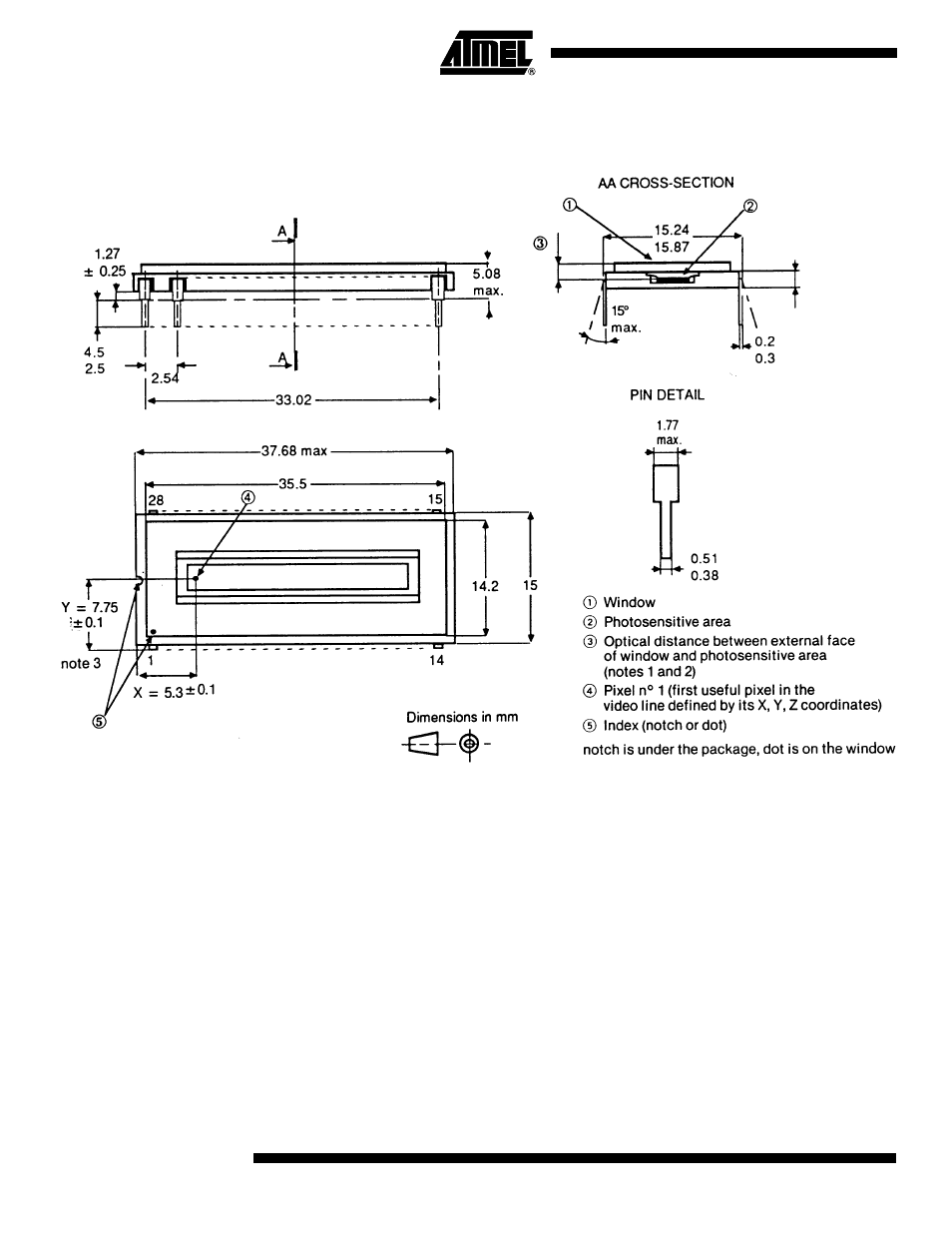

Packaging Information
TH 7841A with standard window.
Notes:
1. If an optical reference is needed, it is recommended to use the window face plane.
2. Variation of Z (azimuth) on the photosensitive area of a device is
≤
0.1 mm
3. Variation of Y between the first and the last pixel of the linear area is
≤
±130 µm.
Ordering Code
The ordering code is: TH7841 ACC
Z = 1.28 ± 0.23
2.16
