MAX4028/MAX4029
Triple/Quad, 2:1 Video
Multiplexer-Amplifiers with Input Clamps
6 _______________________________________________________________________________________
Pin Description
PIN
MAX4028 MAX4029
NAME FUNCTION
— 1 IN4A Amplifier Input 4A
1 2 IN3A Amplifier Input 3A
2 3 IN2A Amplifier Input 2A
3 4 IN1A Amplifier Input 1A
4 5 A/B
Channel-Select Input. Drive A/B high or leave floating to select channel A.
Drive A/B low to select channel B.
5 6 KEYREF
Key-Clamp Reference Output. Connect an external resistor from KEYREF to GND to
generate the key-clamp voltage.
6 7 IN1B Amplifier Input 1B
7 8 IN2B Amplifier Input 2B
8 9 IN3B Amplifier Input 3B
— 10 IN4B Amplifier Input 4B
— 11 OUT4 Amplifier Output 4
9 12 CLAMP/KEY_3
Output 3 Clamp or Key-Clamp Input. Drive CLAMP/KEY_3 high to clamp OUT3.
Drive CLAMP/KEY_3 low to key clamp OUT3.
10 13 GND Ground
11 14 OUT3 Amplifier Output 3
12 15 CLAMP/KEY_2
Output 2 Clamp or Key-Clamp Input. Drive CLAMP/KEY_2 high to clamp OUT2.
Drive CLAMP/KEY_2 low to key clamp OUT2.
13 16 OUT2 Amplifier Output 2
14 17 V CC
Power-Supply Voltage. Bypass V CC to GND with 0.1µF and 0.01µF capacitors as
close to the pin as possible.

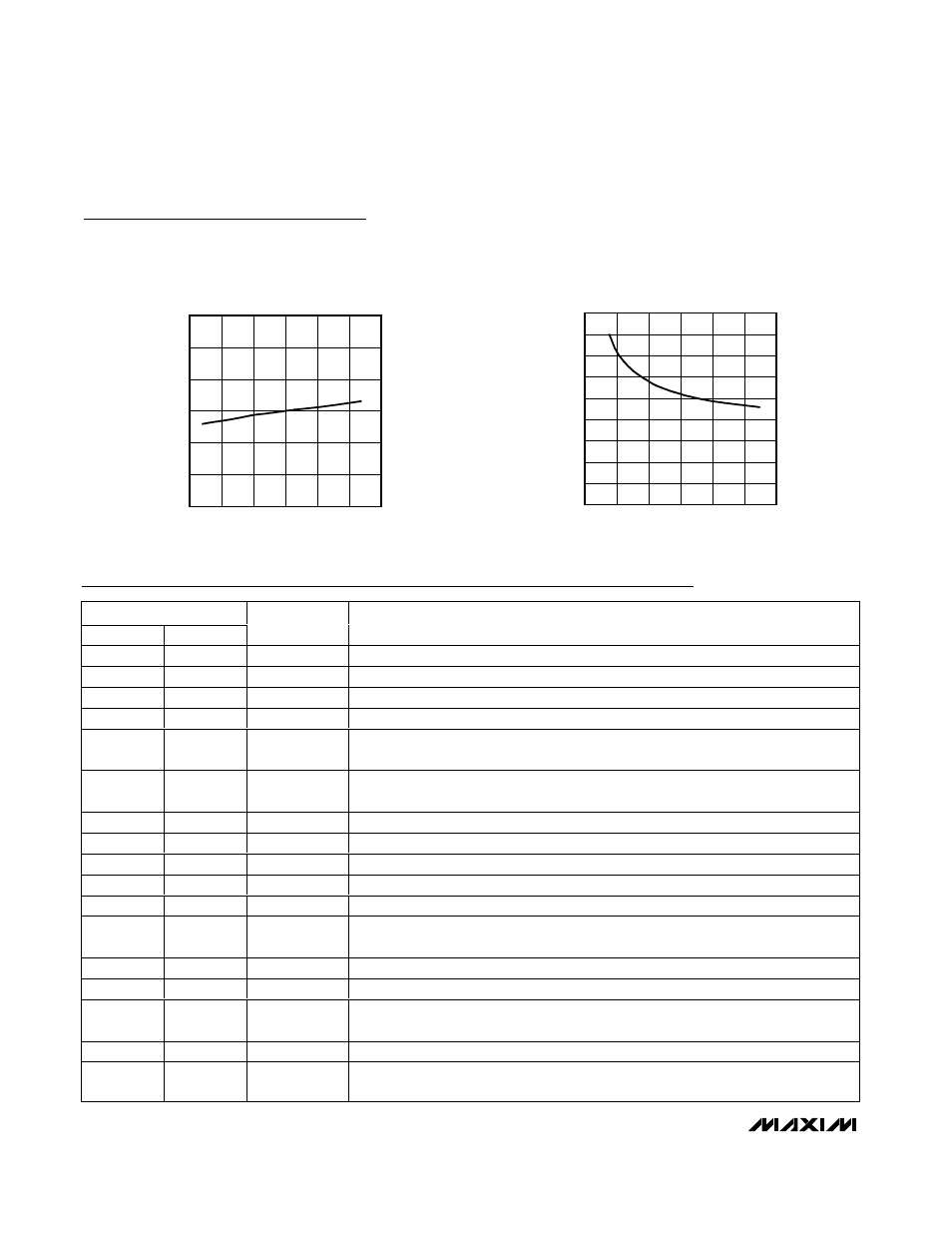

CLAMP VOLTAGE
vs. TEMPERATURE
MAX4028 toc19
TEMPERATURE ( °C)
CLAMP VOLTAGE (V)
75 50 25 0 -25
0.39
0.40
0.41
0.42
0.43
0.38
0.37
-50 100
Typical Operating Characteristics (continued)
(V
CC
= +5V, GND = 0V, V DISABLE = +5V, R
L
= 150 Ω to GND, C
IN
= 0.1µF, R
KEYREF
= 6.04k Ω ±1%, T
A
= +25°C, unless otherwise
noted.)
KEY-CLAMP REFERENCE VOLTAGE
vs. R KEYREF
MAX4028 toc20
R KEYREF (k Ω)
KEY-CLAMP REFERENCE VOLTAGE (V)
11 9 7 5 3
0.2
0.4
0.6
0.8
1.0
1.2
1.4
1.6
1.8
0
1 13
