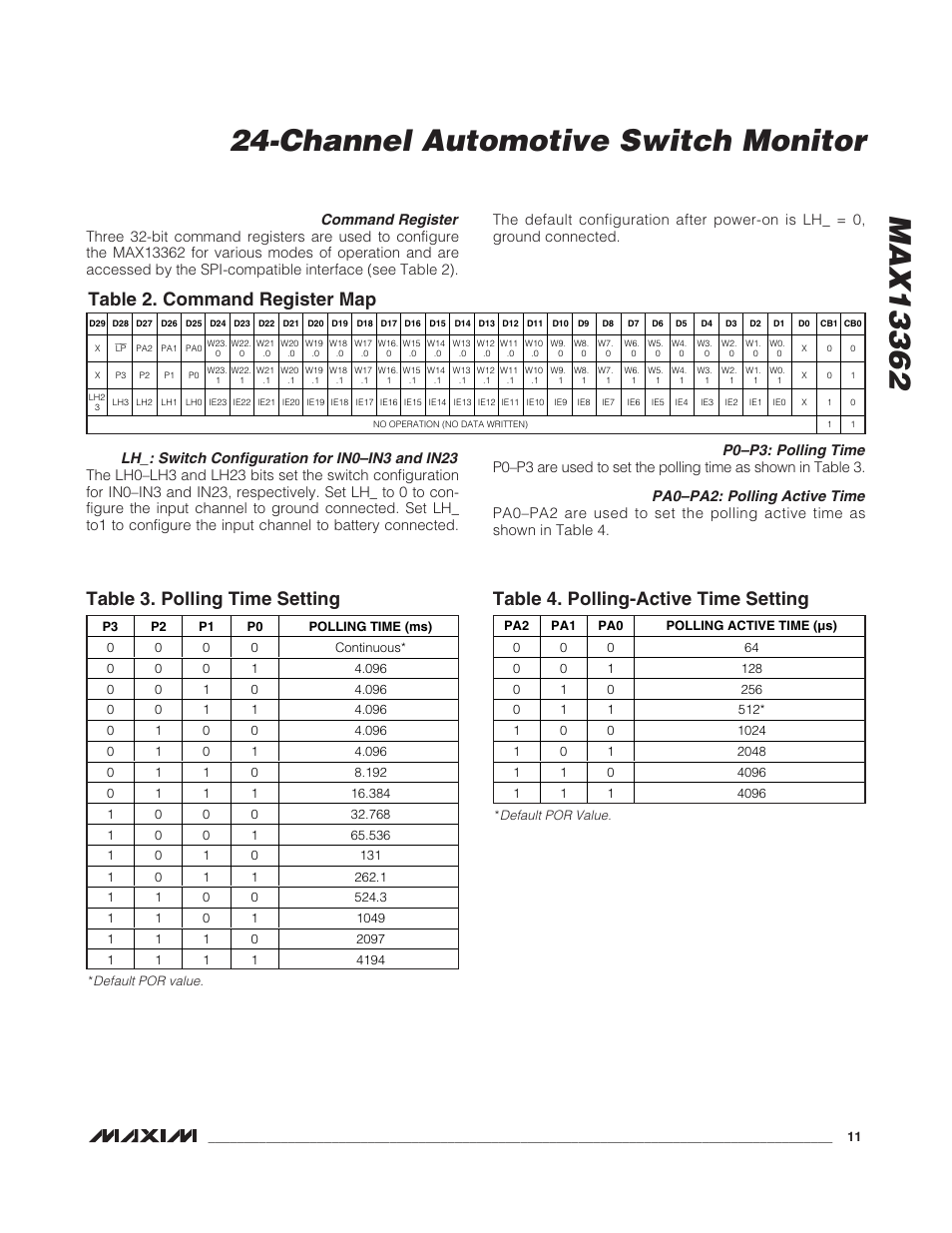

Page 11: Command register, Lh_: switch configuration for in0–in3 and in23, P0–p3: polling time, Pa0–pa2: polling active time
