MAX5842
Quad, 12-Bit, Low-Power, 2-Wire, Serial
Voltage-Output DAC
_______________________________________________________________________________________ 7

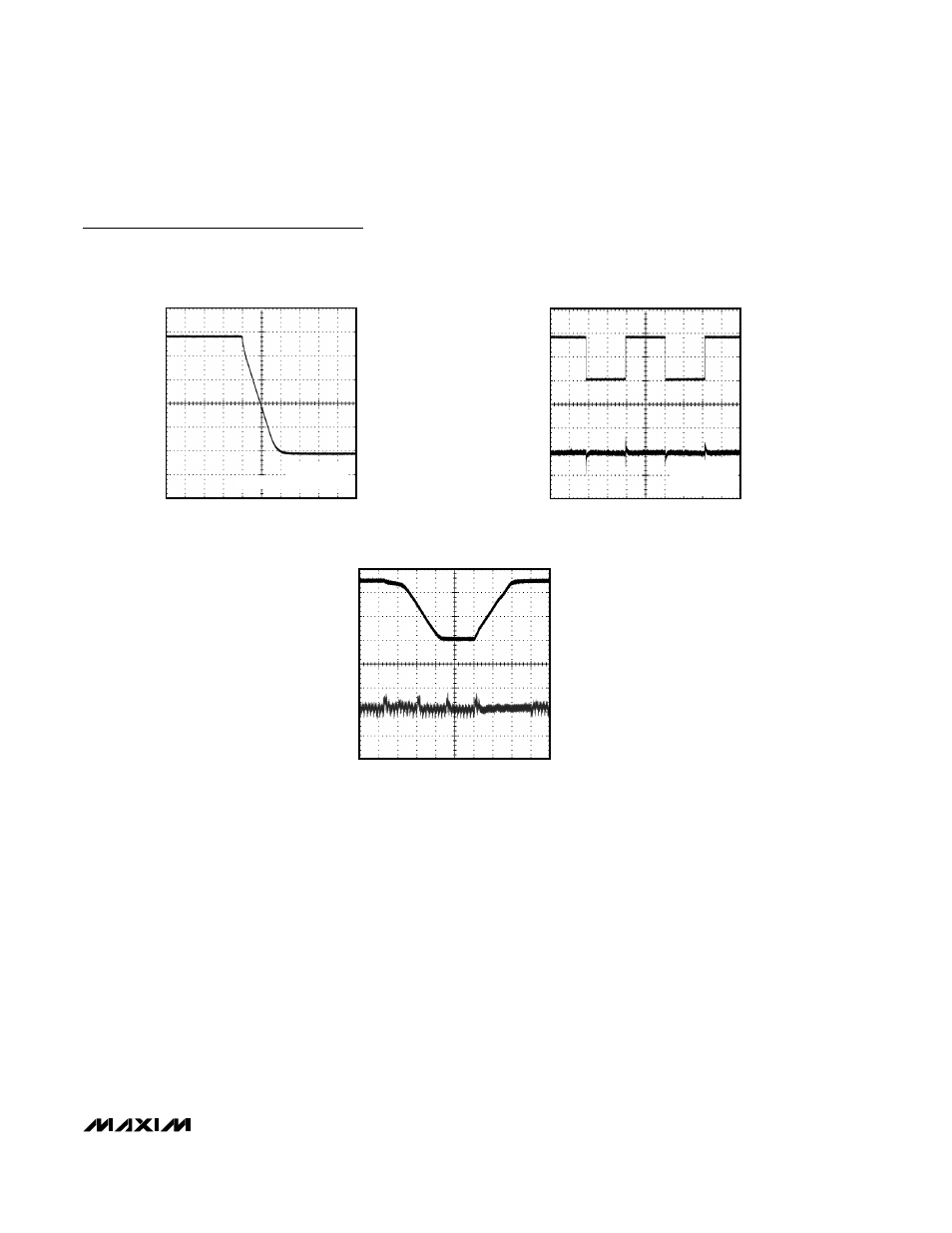

SETTLING TIME
(NEGATIVE)
MAX5842 toc22
2 µs/div
OUT_ 500mV/div
C LOAD = 200pF
CODE = C00 hex TO 400 hex
DIGITAL FEEDTHROUGH
MAX5842 toc23
40 µs/div
OUT_ 2mV/div
C LOAD = 200pF
f SCL = 12kHz
CODE = 000 hex
SCL 2V/div
CROSSTALK
MAX5842 toc24
4 µs/div
V OUTB
1mV/div
V OUTA 2V/div
Typical Operating Characteristics (continued)
(V DD = +5V, R L = 5k Ω.)
Note 6: The ability to drive loads less than 5k Ω is not implied.
