up to four fans, ensuring any significant speed mis-
matches can be detected.

For parallel fan control while monitoring up to four fan
speeds, select the MAX6651.

For parallel fan control while monitoring only a single
fan, select the MAX6650.

Synchronized Fan Control (MAX6651 Only)

In systems with multiple fans, an audible beat frequency
can sometimes be detected due to fan speed mismatch.
This happens in systems where fans are connected in
parallel or in systems with a MAX6650 controlling each
fan. In parallel fan systems, speed mismatches occur
because no two fans are identical. Slight mechanical
variations or loading differences can result in enough of
a speed mismatch to cause an audible beat.

MAX6650/MAX6651

Fan-Speed Regulators and Monitors
with SMBus/I

2

C-Compatible Interface

18

______________________________________________________________________________________

MAX6650

V

CCIN

SCL

10k

SDA

GPIO0

OUT

ADD

GND

FB

TACH0

V

CC

3V TO 5.5V

V

FAN

5V OR 12V

C

COMP

10

µF

I

2

C/SMBus

INTERFACE

GPIO1

FULL ON

ALERT

FAN

MAX6501

TOVER

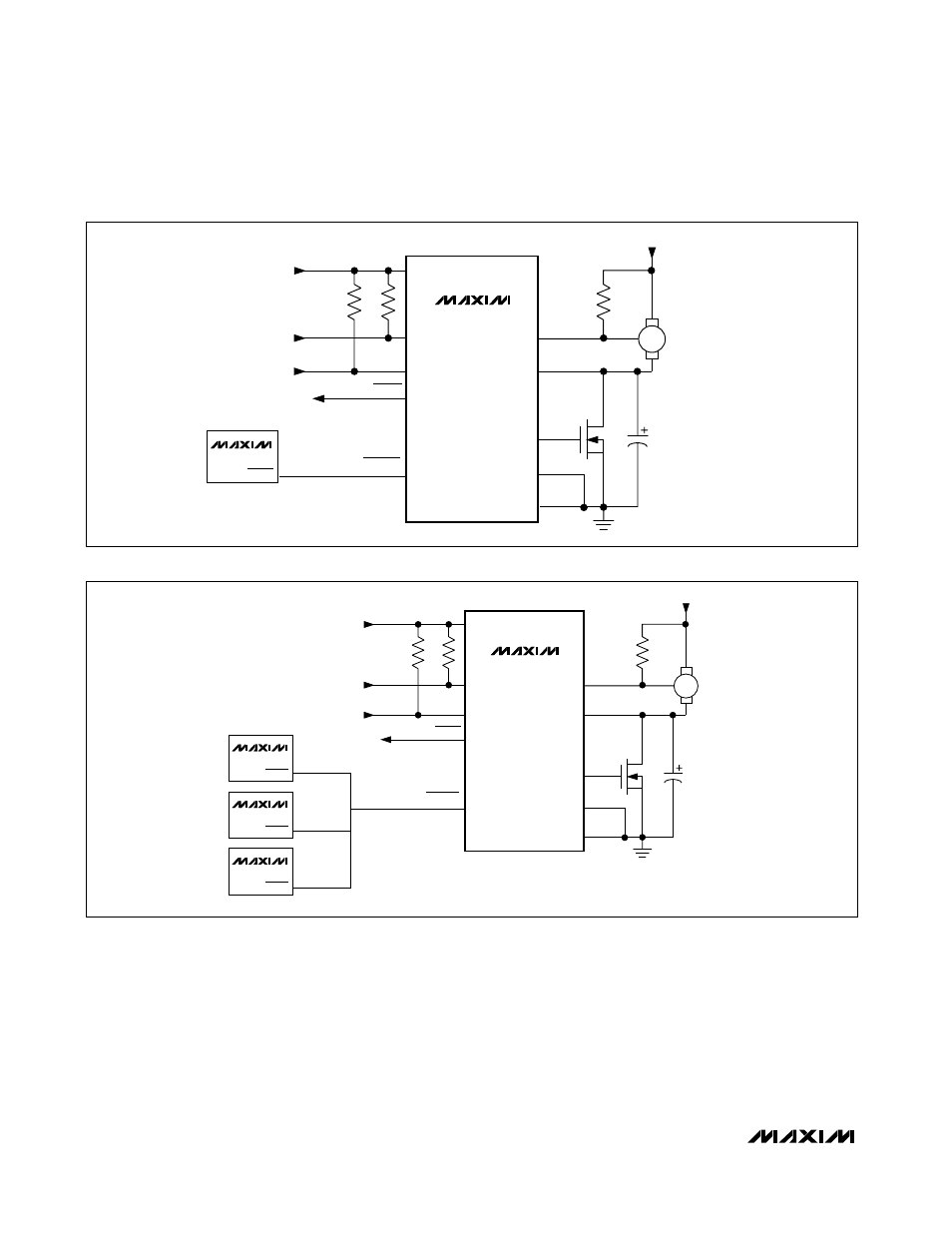

Figure 11. MAX6501 Hardware Fail-Safe

MAX6650

V

CCIN

SCL

10k

SDA

GPIO0

OUT

ADD

GND

FB

TACH0

V

CC

3V TO 5.5V

V

FAN

5V OR 12V

C

COMP

10

µF

I

2

C/SMBus

INTERFACE

GPIO1

FULL ON

ALERT

FAN

MAX6501

TOVER

MAX6501

TOVER

MAX6501

TOVER

Figure 12. MAX6501 Hardware Fail-Safe
