MAX6650/MAX6651

Fan-Speed Regulators and Monitors
with SMBus/I

2

C-Compatible Interface

14

______________________________________________________________________________________

been selected when no ringing is present on the volt-
age at the fan’s low side.

Fan Selection

For closed-loop operation and fan monitoring, the
MAX6650/MAX6651 require fans with tachometer outputs.
A tachometer output is typically specified as an option on
many fan models from a variety of manufacturers. Verify
the nature of the tachometer output (open collector, totem-
pole) and the resultant levels, and configure the connec-
tion to the MAX6650/MAX6651 accordingly. Note how
many pulses per revolution are generated by the
tachometer output (this varies from model to model and

among manufacturers, though two pulses per revolution is
the most common).

Table 10 lists the representative fan manufacturers and
the models they make available with tachometer outputs.

Low-Speed Operation

Brushless DC fans increase reliability by replacing
mechanical commutation with electronic commutation. By
lowering the voltage across the fan to reduce its speed,
the MAX6650/MAX6651 are also lowering the supply volt-
age for the electronic commutation and tachometer elec-
tronics. If the voltage supplied to the fan is lowered too
far, the internal electronics may no longer function prop-
erly. Some of the following symptoms are possible:

• The fan may stop spinning.

• The tachometer output may stop generating a signal.

• The tachometer output may generate more than two

pulses per revolution.

The problems that occur, and the supply voltages at
which they occur, depend on which fan is used. As a
very rough rule of thumb, 12V fans can be expected to
experience problems somewhere around 1/4 to 1/2
their rated speed.

Predicting Future Fan Failure

In systems that require maximum reliability, such as
servers and network equipment, it can be advantageous
to predict fan failure before it actually happens, to alert
the system operator before the fan fails, minimizing down
time. The MAX6650 allows the user to monitor the fan’s
condition through the following modes.

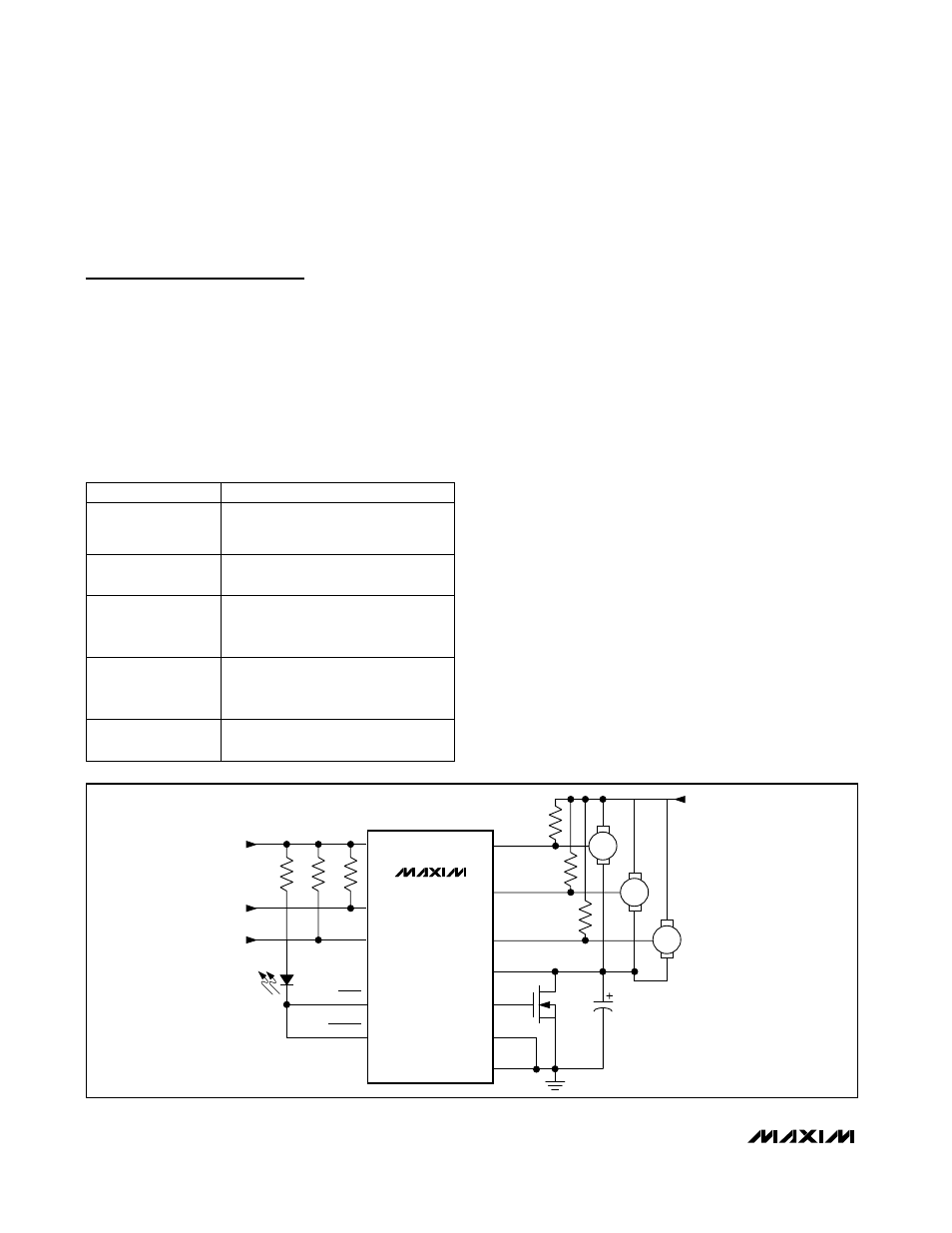

Figure 7. Using the MAX6651 to Control Parallel Fans

MAX6651

V

CC

SCL

10k

10k

10k

SDA

GPIO0

OUT

ADD

GND

FB

TACH0

TACH1

TACH2

V

CC

3V TO 5.5V

V

FAN

5V OR 12V

C

COMP

I

2

C/SMBus

INTERFACE

GPIO1

FAN

0

FAN

1

FAN

2

FULL ON

ALERT

MANUFACTURER

FAN MODEL OPTION

Comair Rotron

All DC brushless models can be
ordered with optional tachometer
output.

EBM-Papst

Tachometer output optional on some
models.

NMB

All DC brushless models can be
ordered with optional tachometer
output.

Panasonic

Panaflo and flat unidirectional
miniature fans can be ordered with
tachometer output.

Sunon

Tachometer output optional on some
models.

Table 10. Fan Manufacturers
