MAX8620Y

Reset Output (

RESET

)

RESET is an open-drain, active-low output that indi-
cates the status of OUT1. RESET is typically pulled up
through a 100k

Ω resistor to the system logic voltage.

RESET asserts at power-up. The reset timer begins
once V

OUT1

reaches 87% of regulation. RESET

deasserts 60ms after V

OUT1

rises above 87% (typ) of

regulation (see the Typical Operating Characteristics).
RESET also asserts when OUT1 is disabled.

Reference Bypass Capacitor Node (BP)

An optional 0.01µF bypass capacitor at BP creates a
lowpass filter for LDO noise reduction. OUT1 and OUT2
exhibit 45µV

RMS

of output-voltage noise with C

BP

=

0.01µF and C

OUT1

= C

OUT2

= 4.7µF.

Undervoltage Lockout

V

IN1

= V

IN2

must exceed the 2.85V typical undervolt-

age-lockout threshold (V

UVLO

) before the MAX8620Y

enables OUT3 to begin power-supply sequencing (see
the Power-Supply Sequencing section). The UVLO
threshold hysteresis is typically 0.5V.

Current Limiting

The MAX8620Y 300mA LDOs limit their output current to
I

LIM_

= 550mA (typ). If the LDO output current exceeds

I

LIM_

, the corresponding LDO output voltage drops. The

step-down converter limits I

LIM3P

to 675mA (min).

Thermal-Overload Protection

Thermal-overload protection limits total power dissipa-
tion in the MAX8620Y. Independent thermal-protection
circuits monitor the step-down converter and the linear-
regulator circuits. When the MAX8620Y junction temper-
ature exceeds T

J

= +160°C, the thermal-overload

protection circuit disables the corresponding circuitry,
allowing the IC to cool. The thermal-overload protection
circuitry enables the MAX8620Y after the junction tem-
perature cools by 15°C, resulting in a pulsed output dur-
ing continuous thermal-overload conditions. Thermal-
overload protection safeguards the MAX8620Y in the

event of fault conditions. For continuous operation, do
not exceed the absolute-maximum junction-tempera-
ture rating of T

J

= +150°C.

Applications Information

Power-On Closed-Loop System

When the MAX8620Y is used in conjunction with a
microcontroller, HF_PWR and PWR_ON can implement
a short-key power-on closed-loop system (

Figure 5).

The MAX8620Y detects a rising edge at HF_PWR and
generates an internal 1.31s (typ) one-shot pulse that
begins power sequencing and temporarily enables
OUT1, OUT2, and OUT3 (depending on the state of
EN2). The 1.31s of power provides time for the proces-
sor to initialize and assert a logic-high at PWR_ON.
Once PWR_ON is driven high, OUT3, OUT1, and OUT2
(depending on the state of EN2) remain enabled. If the
microcontroller does not drive PWR_ON high during
t

HF

, the MAX8620Y disables OUT1, OUT2, and OUT3,

and reenters shutdown.

µPMIC for Microprocessors or DSPs
in Portable Equipment

12

______________________________________________________________________________________

PWR_ON

µP

POWER-ON

KEY

POWER-HOLD SIGNAL

HF_PWR

V

CORE

V

I/O

V

ANA

1M

PWR HOLD

MAX8620Y

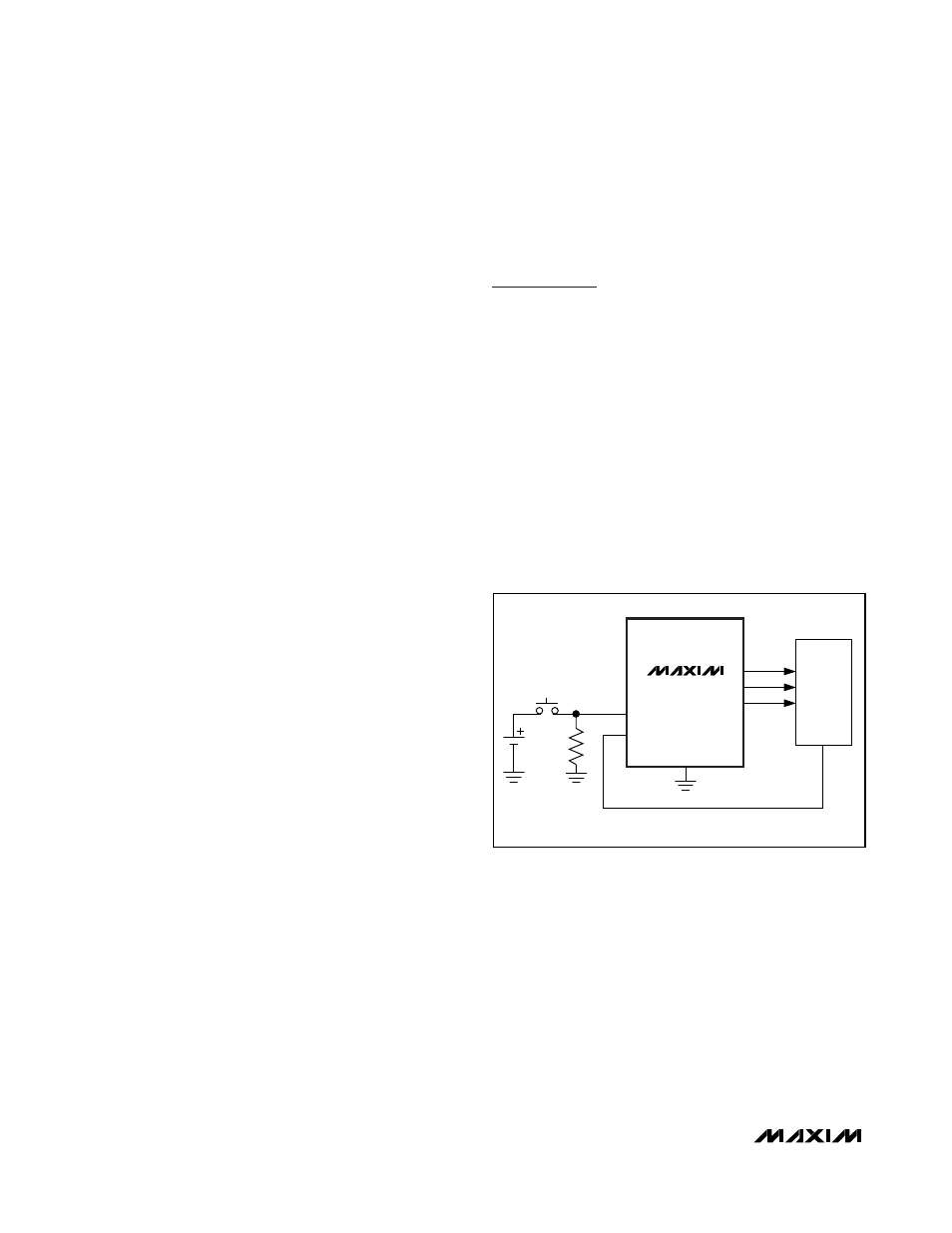

Figure 5. Short-Key Power-On Closed-Loop System
