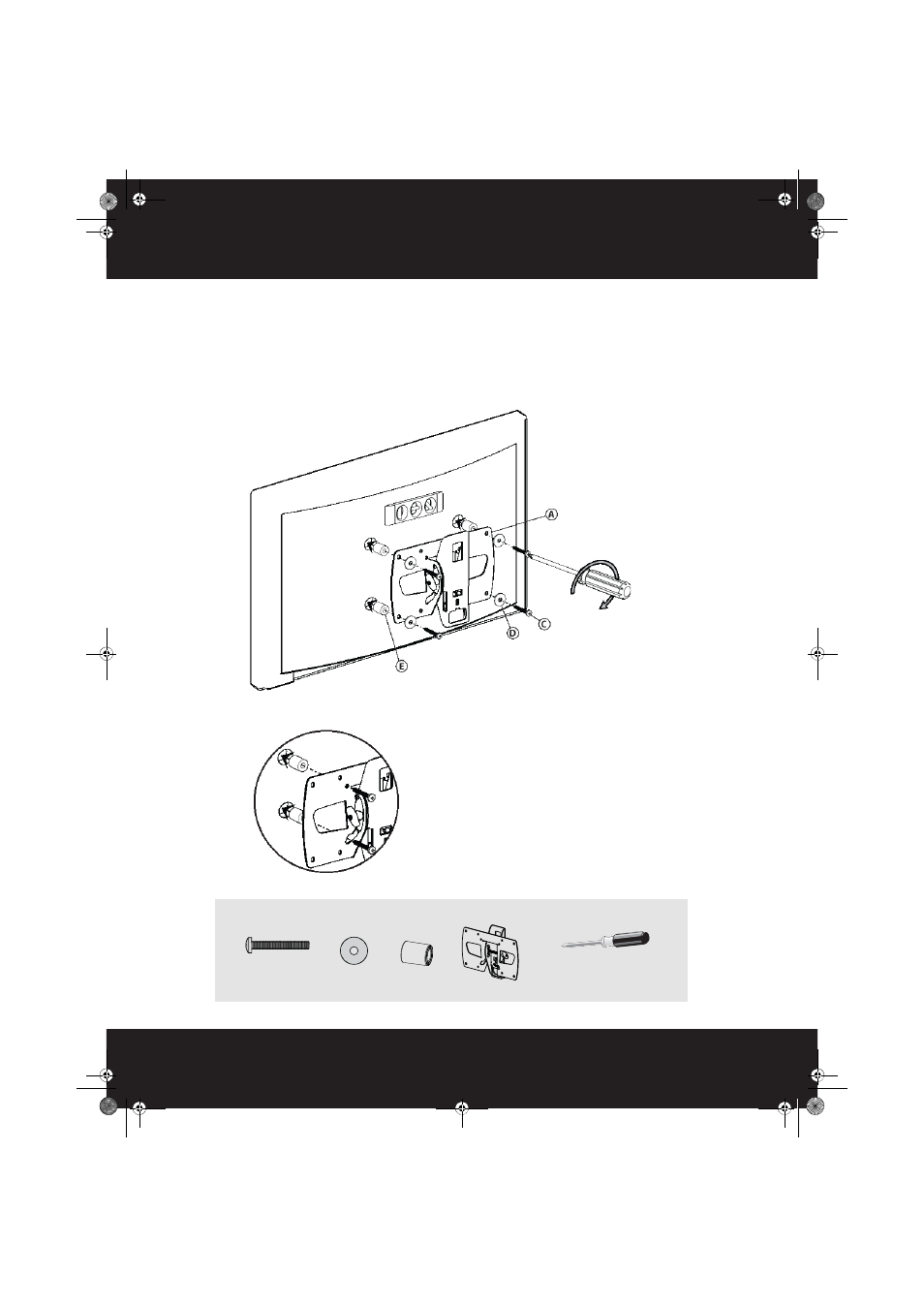

STEP 5 - Option 2: Attaching the mounting hardware to TVs with irregular or
obstructed backs
1
Place the spacers (E) overtop of the screw holes on the back of your TV.
2
Align the holes on the TV bracket (A) with the spacers on the back of your TV. Place the washers (D) over the
holes in the TV bracket, then insert the screws (C) through the washers, TV bracket, and spacers.
NOTE: If the hole pattern on your TV is 75 mm x 75 mm, the washers (D) will not fit, so do not use them.
3
Tighten all screws carefully until snug. Do not overtighten.
You’ll need
Note: No washers used with 75 mm x 75 mm
hole pattern.
D (4)
C (4)
Phillips screwdriver
Screws
Washers
Spacers
E (4)
TV bracket (A)
