OMAX Terrain Follower_A-Jet - Manual (Page 2)

Note: Specifications subject to change without notice.
OMAX Terrain Follower/A-Jet
Best Applications
• Great for materials that stress relieve
while cutting
• Assists in cutting hard, smooth,
or non-cosmetic surfaces
• Ideal for cutting large parts on
uneven or warped sheets
For example: When cutting material at a 45°
(or greater) angle, any height change of the
material directly changes the cut offset. For
instance, cutting material with an 1/8" warp
without using the Terrain Follower would produce
an 1/8" shift in your cutting line. To prevent this,
install the Terrain Follower to eliminate this shift
when cutting at a 45° angle or any other angle.
The accessory will adjust the Z-axis height and
give you an appropriate standoff between the
nozzle and the material surface when cutting
the warped stock.
Printed in the U.S.A © October 2011 All rights reserved. S-0049
OMAX Corporation
21409 72nd Ave South, Kent, WA 98032
253-872-2300
tel 253-872-6190 fax
1-800-838-0343 toll-free
WWW.OMAX.COM website
C o r p o r a t i o n
About OMAX
Requirements
• Windows ® upgrade
Contact OMAX Customer Service
for information
• OMAX Software version 11 or greater
• A-Jet
• A bridge-style OMAX JetMachining
Center (For cantilever-style OMAX Jet-
Machining Centers, contact an OMAX
sales representative for details)
• OMAX 9-Axis PC-based controller
Contact OMAX for more information.

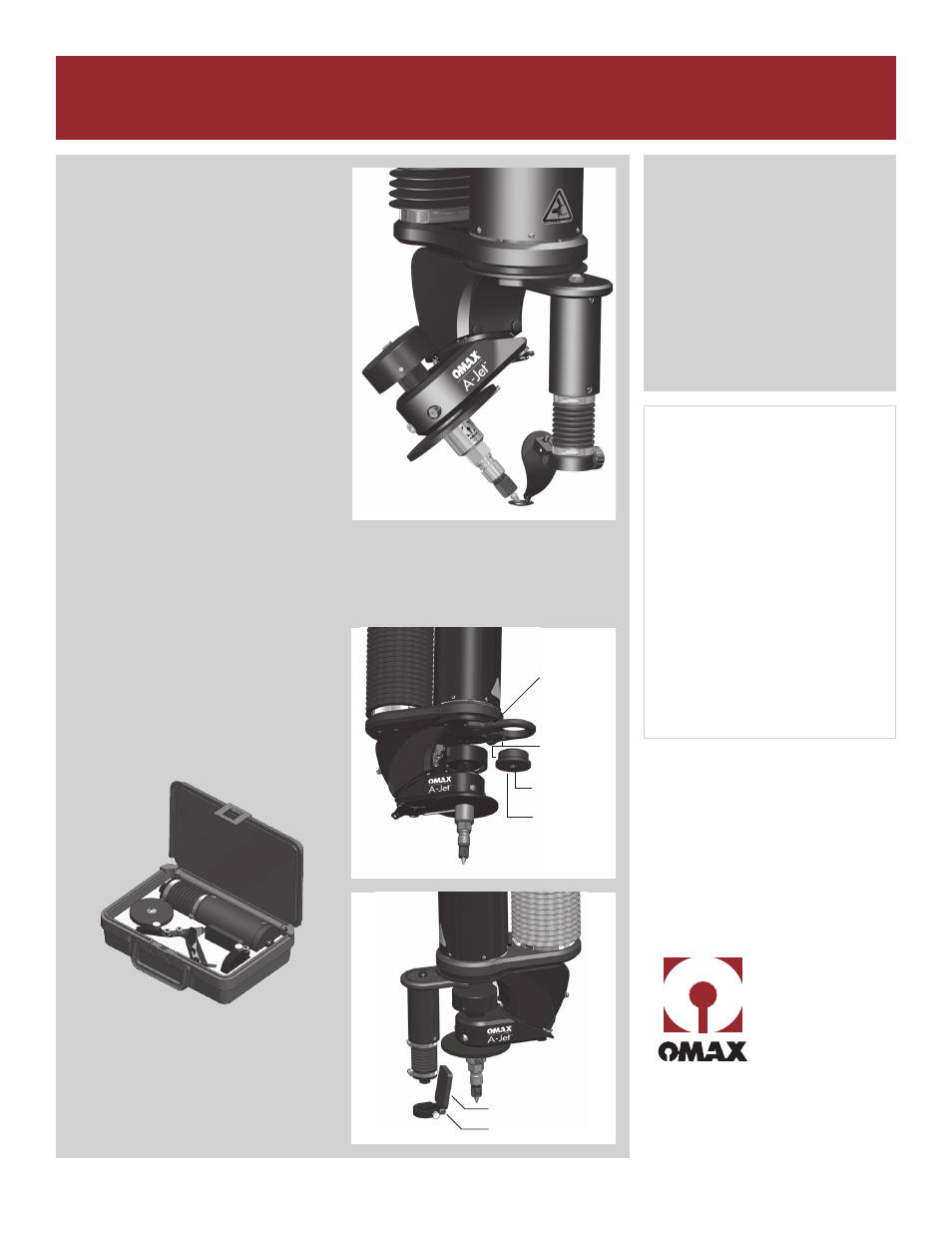

Terrain Follower shown on an A-Jet
Accessories in the Terrain Follower/A-Jet Kit
• Neat package
• Easily removable
• Easily return to service
after removal
• OMAX service tech required for
initial installation
Footless Splash
Guard
Thumb Screw
Note: Collision sensing capabilities are
not featured with the Terrain Follower/A-Jet
accessory.
OMAX has the industry leading patented
abrasivejet controller with a built-in
expert system. Our exclusive “Compute
First-Move Later” motion control system
automates most programming and tool
setup work, virtually eliminating the need
for extensive operator training. Plus,
with free OMAX Intelli-MAX
® Software
upgrades for the life of the machine and
our ongoing commitment to advance the
efficiency of our technology and soft-
ware, OMAX saves you time and money.
For information on what other OMAX
products and accessories can do for you,
call us today at 800-838-0343 or visit
our website at www.omax.com.
M5 Set
Screw
Plug Loose
Cable End
into Hole in
Dummy Plug
Dummy Plug
Rubber
Splashguard
on bottom of
Dummy Plug
