STANDARD MODEL SPECIFICATIONS
Material Support Slats 4" x 1/8" Galvanized Steel
Maximum Supported Material Load 400 lbs/sq ft (1,950 kg/sq meter)
Electrical Requirements
3-Phase, 380-480 VAC ±10%,
50-60 Hz
Noise Level
Below 80 dBA at one meter for
submerged cutting
Speed 180 in/min (4,572 mm/min)
Accuracy of Motion at 70˚ F
Ballbar Circularity
(Over 12")
±0.003”
(±0.076mm)
Repeatability
±0.002"
(±0.051 mm)
OPTIONAL ACCESSORIES
• Tilt-A-Jet Cutting Head for taper
compensation
• DualPUMP Package (redundant dual
EnduroMAX option up to 100 hp)
• Variable Speed SRS (VS-SRS)
• Collision Sensing Terrain Follower
• Z-Axis Drill
• Precision Optical Locator (POL)
• Water-only MAXJET 5 for cutting soft
materials
• OMAX Mini MAXJET 5i Nozzle
Assembly

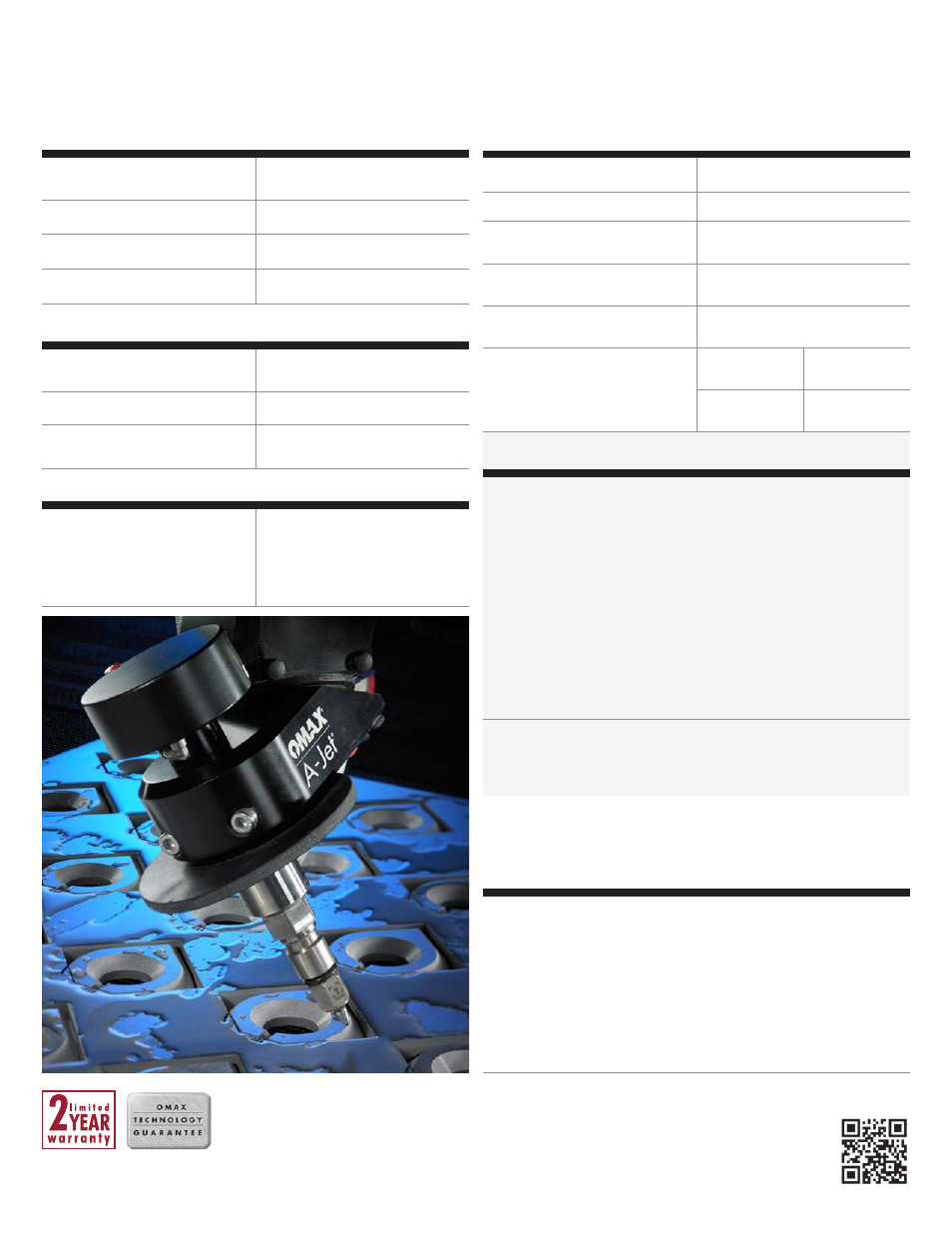

• A-Jet Angle Cutting Head
• Terrain Follower/A-Jet
• Rotary Axis
• Bridge Touch Screen
• Second MAXJET 5i with Motorized
Z-Axis and all necessary hard
plumbing (requires second Y-Axis
carriage)
• Manual Tilt Z
• Laminar Filter
• Waterjet Brick Kit
• Catcher Tank Armor Plating
• Air and Water Conditioning Kit
• Collision Sensing Terrain Follower
• Material Holding Kit
• Laser Feature Finder
*Optional accessories may reduce travel. Photos may show optional
accessories. For a complete list of accessories, contact an OMAX sales
representative. Pumps are built to meet UL and CE specifications. Contact
OMAX for detailed utility requirements.
60120
OMAX CORPORATION
21409 72nd Avenue South
Kent, WA 98032
TEL 1-253-872-2300 / 1-800-838-0343
FAX 1-253-872-6190
WWW.OMAX.COM
Made in the USA
The OMAX Technology Guarantee
entitles you, as the original owner, to
free OMAX software upgrades for the
life of the machine.
Specifications subject to change without notice.
600039C January 2014
MACHINE DIMENSIONS
Footprint (with controller)
18’9” x 9’2”
(5,715 mm x 2,794 mm)
Weight (tank empty) 6,200 lb (2,818 kg)
Height (with scissor plumbing) 9’7” (2921 mm)
Operating Weight (with water in tank) 23,200 lb ( 10,545 kg)
WORK ENVELOPE
X-Y Cutting Travel*
10’6” x 5’2”
(3,200 mm x 1,575 mm)
Z-Axis Travel* 8” (203mm)
Table Size
12’0” x 6’5”
(3,656 mm x 1,956 mm)
DRIVE DESCRIPTION
• Brushless servo motors
• Pre-loaded ball screw with
recirculating ball bearings and
hardened precision ground ways in
Y-Axis
• Closed loop, digital drives
• Bridge-style Y-Axis
• Intelli-TRAX drive technology with
precision linear encoders in X-Axis
• Precise Motorized Z-Axis
ABOUT OMAX
OMAX is the global total solutions provider in advanced abrasive waterjet
systems. Our intuitive Intelli-MAX Software Suite simplifies programming and
reduces setup times, increasing your productivity. OMAX engineers continue
to innovate technology for waterjet machining, from proven 4th generation
pump designs to cutting edge drive systems with micron-level accuracy. With
the largest abrasive waterjet support network in the world, OMAX continues to
shape the future of waterjets.
To see how an OMAX JetMachining Center can save you time and money, call
or visit our website and request a free part analysis today.
