3-2
• User Controls
9242 Product Manual (V1.1)
Card Overview
This section provides a general overview of the 9242 DIP Switches. Refer to Figure 3.1 for DIP
Switch location.

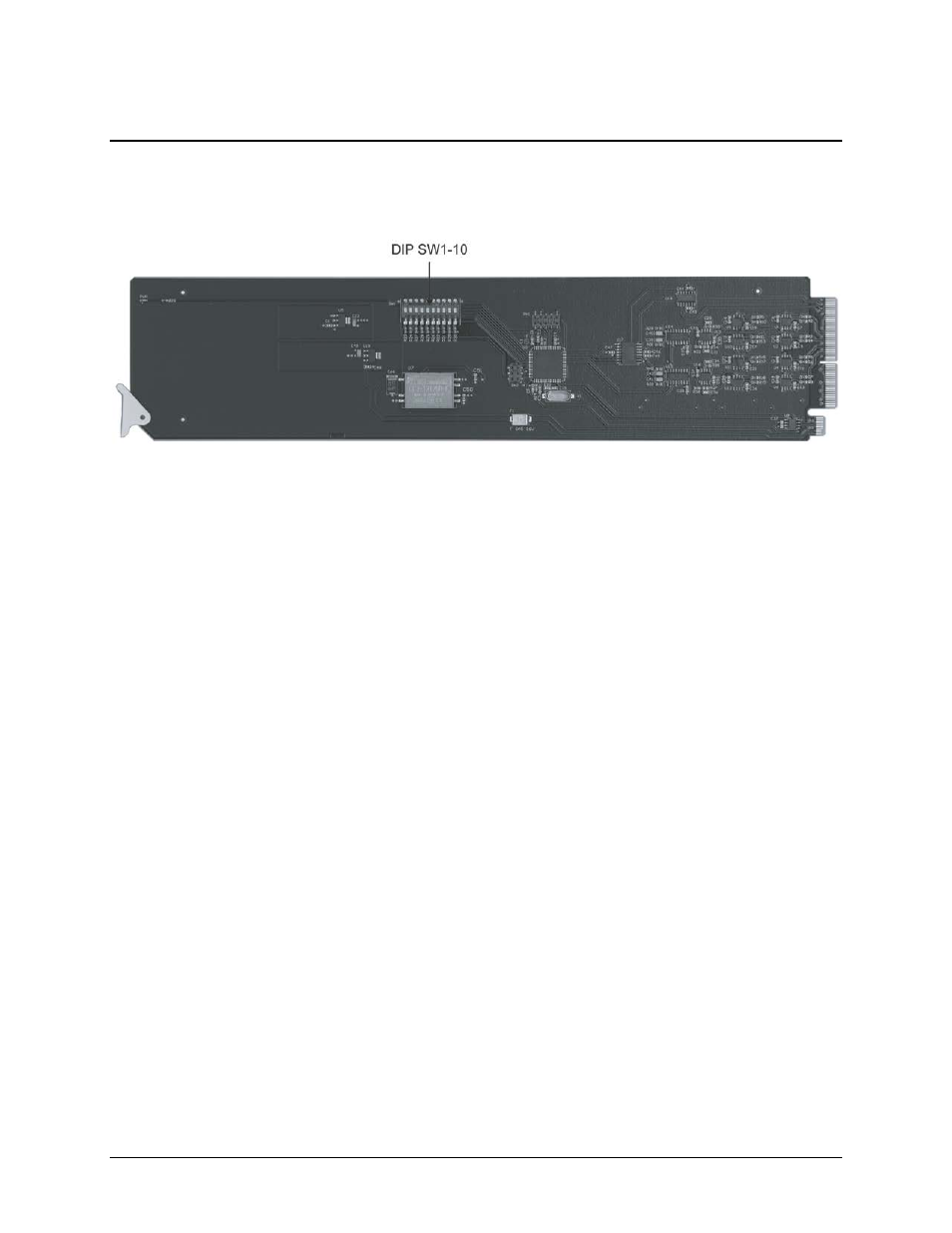

Figure 3.1 9242 — Components
SW1 — Remote Control
Use SW1 to disable remote control of the 9242 from DashBoard.
Set SW1 as follows:
• ON — Select this setting to disable remote control from DashBoard. The parameters and
settings cannot be changed via DashBoard and must be changed using the card-edge
controls. You can still monitor the status of the card using DashBoard.
• OFF — Select this setting to control the 9242 exclusively from DashBoard. The card-
edge controls are ignored. This is the default setting.
SW2 — DIP Switch Control
Use SW2 to determine whether DIP Switch settings are applied or ignored.
Set SW2 as follows:
• ON — DIP Switch status is reported in DashBoard, and DIP Switch settings are applied.
Any parameter adjustments made in DashBoard are ignored.
• OFF — DIP Switch status is reported in DashBoard, however DIP Switch settings are
ignored. Parameter adjustments made in DashBoard are applied. This is the default
setting.
SW3, SW4 — Output Mode Selection
SW3 and SW4 are used in conjunction to set the output mode of the 9242. Refer to the section
“Setting the Output Mode” for details.
SW5
This DIP Switch is not implemented.
SW6 - SW10 — Gain Control
These switches are used in conjunction to apply a specific Gain value (dB). Refer to the section
“Specifying the Gain” for details.
