Cabling for the 9242

This section provides information for connecting cables to the installed Rear Modules on the 20-Slot
series frames. Connect the input and output cables according to the following sections.

8321 Series Frames Cabling Overview

In the 8321 series frames, the 9242 may be used with the following Rear Modules:

RM20-9142-B Standard-Width Rear Module — Each module occupies two slots and

accommodates one card. This rear module provides two analog inputs and eight analog
outputs. (Figure 2.2)

RM20-9142-C/S Split Rear Module — Each module occupies two slots and

accommodates two cards. This rear module provides one analog input and four analog
outputs per card. (Figure 2.3)

Note: + /- /G orientation on connectors varies from that on other Cobalt products. Make
certain hookup is as shown here.

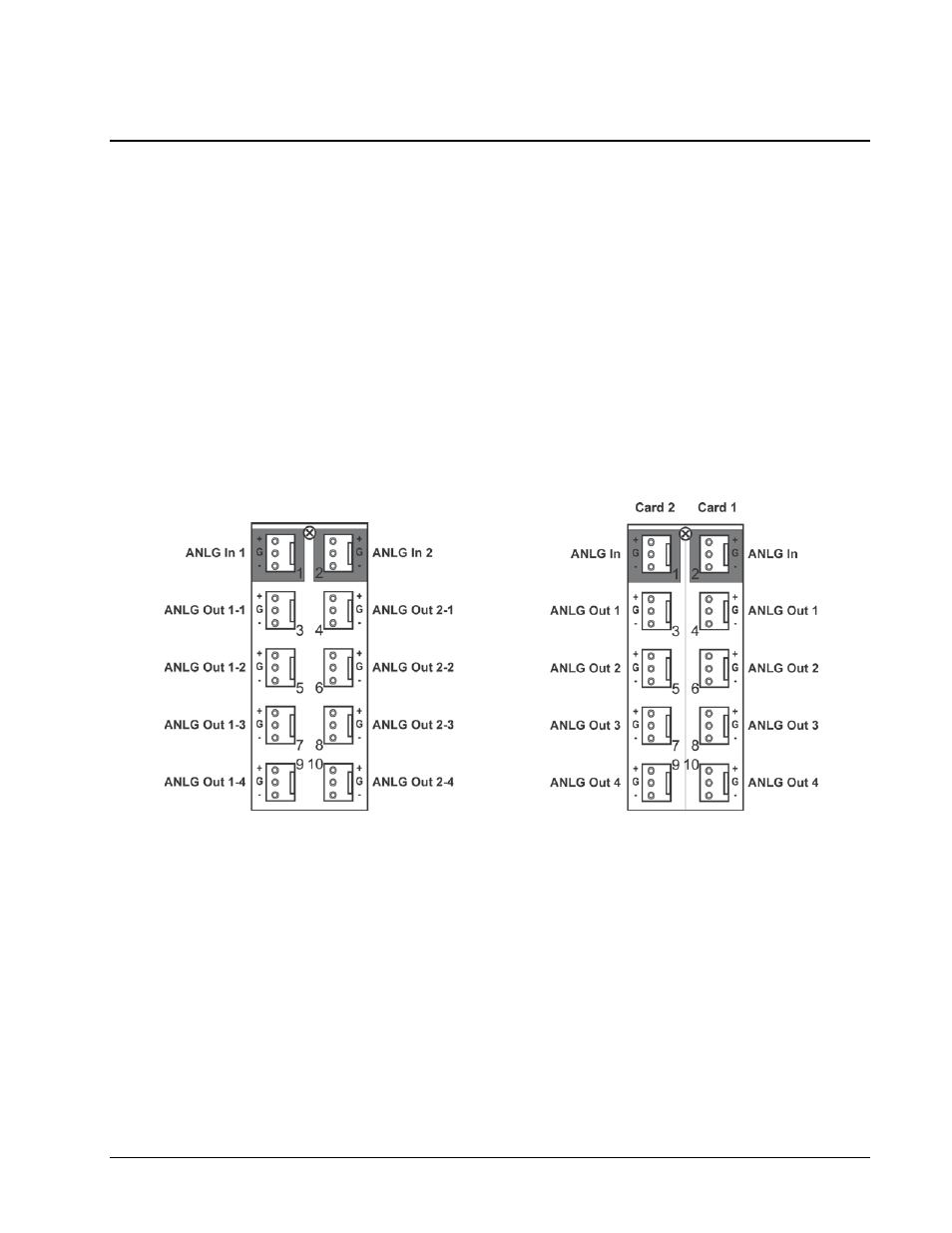

Figure 2.2 Cable Connections for the RM20-9242-B

Rear Modules

Figure 2.3 Cable Connections for the RM20-9142-C/S Split

Rear Module
