Troubleshooting
9931-EMDE Card Edge Status/Error Indicators and Display
Figure 3-8 shows and describes the 9931-EMDE card edge status indicators
and display. These indicators and the display show status and error conditions
relating to the card itself and remote (network) communications (where
applicable). Because these indicators are part of the card itself and require no
external interface, the indicators are particularly useful in the event of
communications problems with external devices such as network remote
control devices.

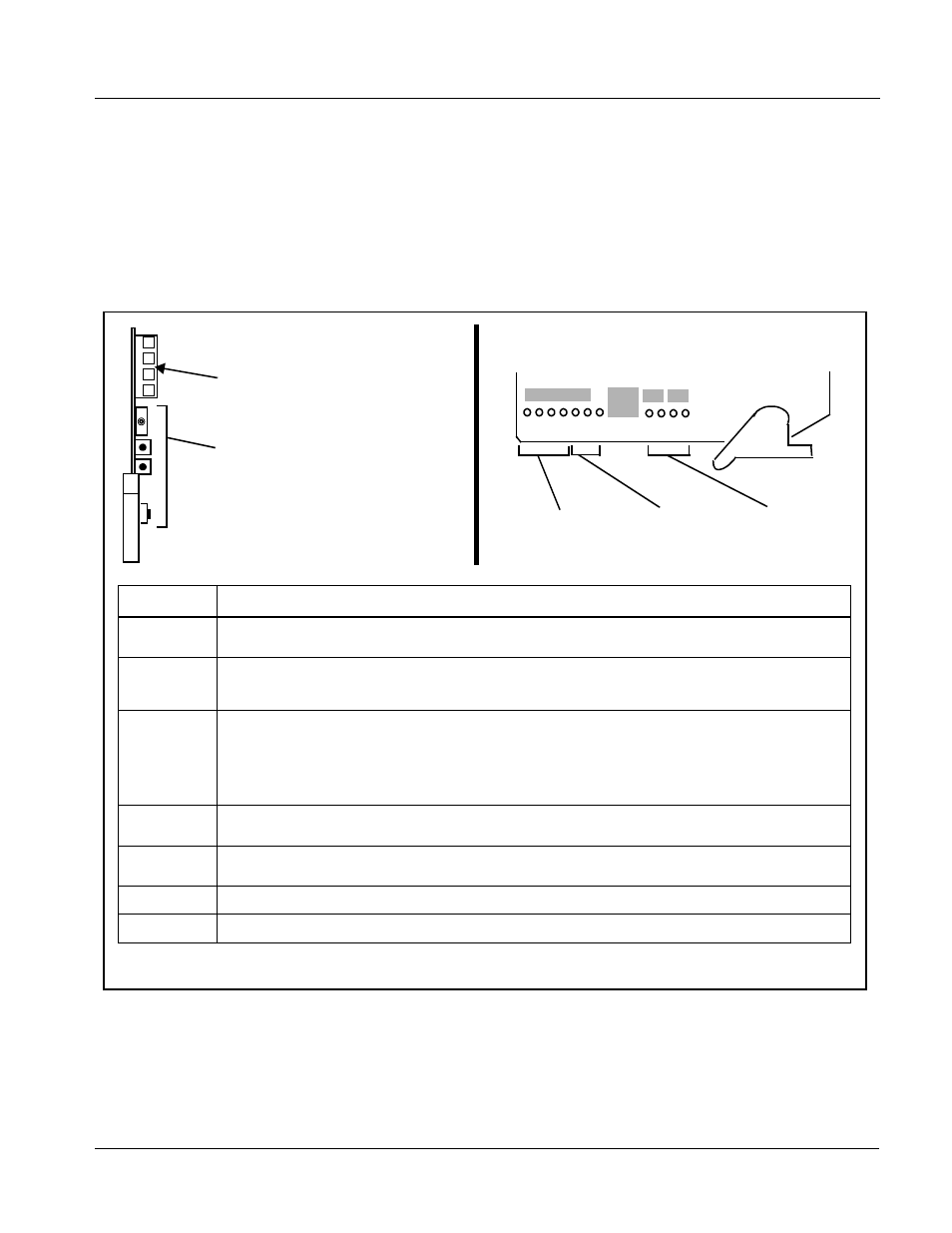

Figure 3-8 9931-EMDE Card Edge Status Indicators and Display
Item Function
Display Displays 4-digit abbreviated code showing menu and submenu selections. When in a menu displaying a
parameter setting, the display shows parametric scalar value (and +/- sign where applicable).
Card Edge
Manual
Controls
This function is currently reserved.
Input Format
Indicators Three blue LEDs indicate the input signal format being received and locked onto by the 9931-EMDE:
• 3G
• HD
• SD
Continuous cycling of the LEDs indicates the 9931-EMDE has not locked onto a particular format (as in the case
of no signal input).
Menu Depth
Indicators
This function is currently reserved.
RMT LED Blue LED flashes when 9931-EMDE is receiving control message from remote network control (e.g.,
DashBoard™ or Cobalt
®
Remote Control Panel)
LOCK LED Blue LED illuminates when 9931-EMDE unable to lock to input standard.
ERR LED This function is currently reserved.
RM
T
RE
F
ER
R
LOC
K
3G HD SD MENU DEPTH
Input Format
Indicators
Menu Depth
Indicators
Status
Indicators
9
931
-E
M
D
E
4-Character Alphanumeric Display
Card Edge Manual Controls
