937X-OM (V1.3) 9374-SERIES PRODUCT MANUAL 3-11
Operating Instructions
9374-Series Function Submenu List and Descriptions

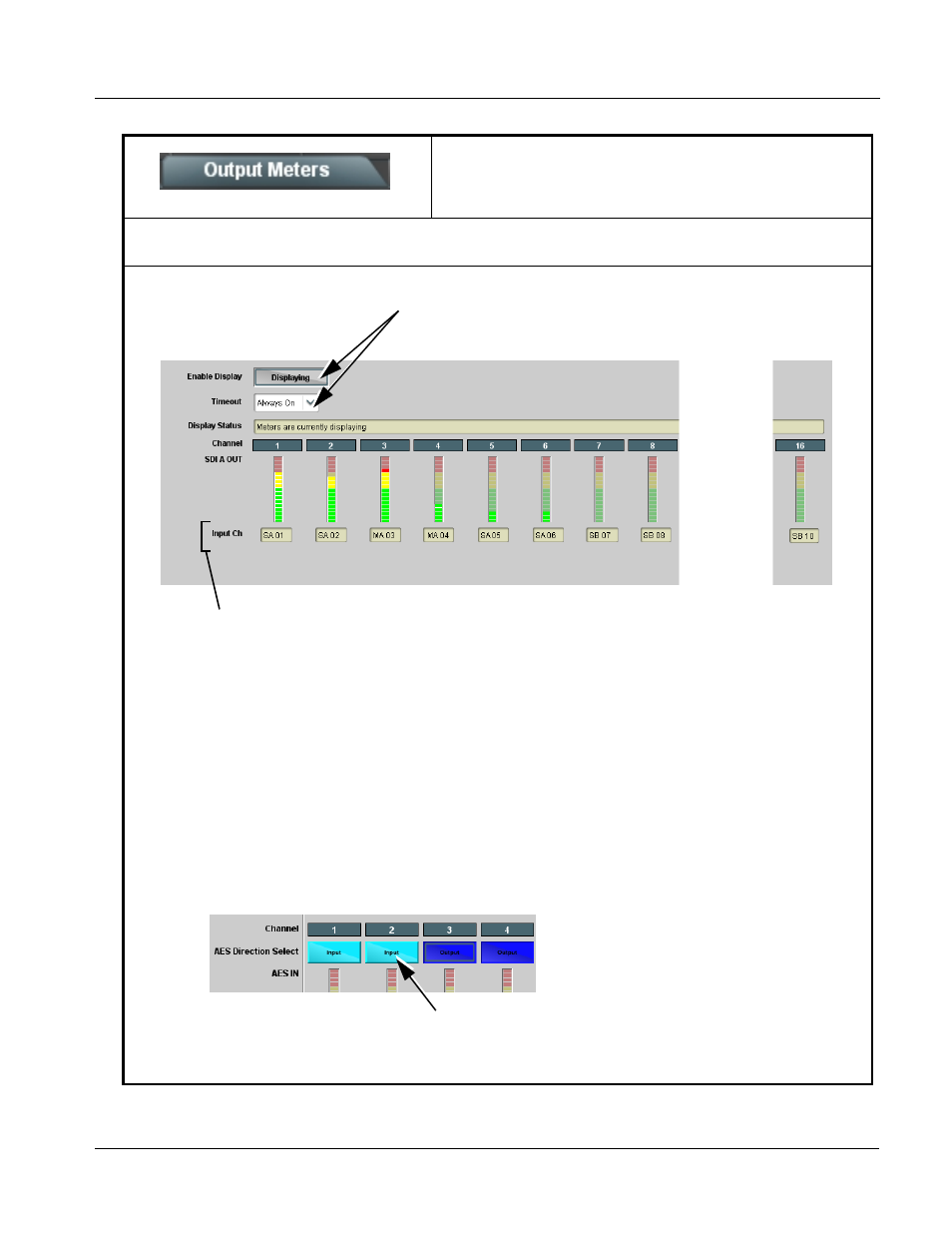

Output Meters
Provides PPM meters in 16-channel groups for card SDI
outputs, MADI outputs and AES outputs.
Note: 9372 and 9371 cards do not have SDI C and SDI D meter rows. 9372 has SDI A and SDI B meter rows; 9371 has SDI A
meter row.
Table 3-1 9374-Series Function Submenu List — continued
• • •
Enable Display and Timeout controls allow meter display to be turned on only
when needed. (Card display/refresh speed in DashBoard™ is enhanced when
dynamic displays are disabled when not needed.)
Input Ch displays show the sources currently routed to any particular output channel using a short form abbreviated ID (see
below). In this example for SDI A OUT, SDI A embedded channels 1 and 2 (SA01, SA02) are routed to SDI A OUT
embedded channels 1 and 2. Also, MADI channels 3 and 3 (MA03, MA04) are routed to SDI A OUT embedded channels 3
and 4.
SDI A OUT 16-channel meter row is shown above. The following 16-channel rows are displayed:
•
SDI A OUT – SDI A embedded channels 1 - 16 (short form ID: SA01 - SA16)
•
SDI B OUT – SDI B embedded channels 1 - 16 (short form ID: SB01 - SB16)
•
SDI C OUT – SDI C embedded channels 1 - 16 (short form ID: SC01 - SC16)
•
SDI D OUT – SDI D embedded channels 1 - 16 (short form ID: SD01 - SD16)
•
MADI OUT 1-16 – MADI channels 1 - 16 (short form ID: MA01 - MA16)
•
MADI OUT 17-32 – MADI channels 17 - 32 (short form ID: MB01 - MB16)
•
MADI OUT 33-48 – MADI channels 33 - 48 (short form ID: MC01 - MC16)
•
MADI OUT 49-64 – MADI channels 49 - 64 (short form ID: MD01 - MD16)
•
AES OUT 1-16 – AES-3id channels 1 - 16 (short form ID: A01 - A16)
Note: AES channel controls have a Direction control to set a channel pair as a card input or output.
Pressing either button of a channel pair toggles between Input and Output function. In this example, pair 1 (channels 1/2) are set as
Input (turquoise color) and pair 2 (channels 3/4) are set as Output (blue color). (Similar controls appear on the Input Meters tab and
are ganged with these.)
