937X-OM (V1.3) 9374-SERIES PRODUCT MANUAL 3-3
Operating Instructions
Control and Display Descriptions
9374-Series Card Edge Controls, Indicators, and Display

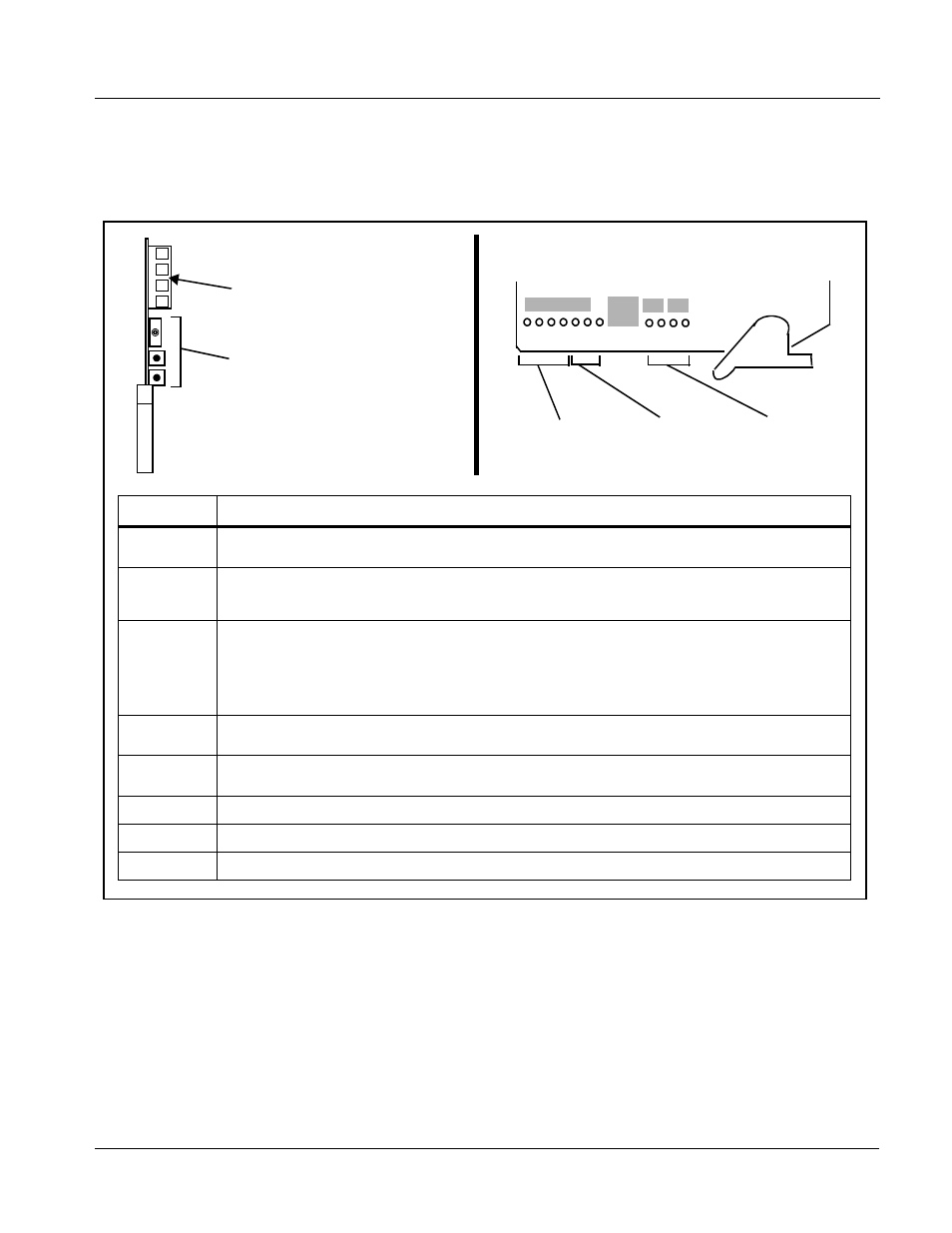

Figure 3-2 shows and describes the 9374-Series card edge controls,
indicators, and display.
Figure 3-2 9374-Series Card Edge Controls, Indicators, and Display
93
74
4-Character Alphanumeric Display
Item Function
Display Displays 4-digit abbreviated code showing menu and submenu selections. When in a menu displaying a
parameter setting, the display shows parametric scalar value (and +/- sign where applicable).
Card Edge
Manual
Controls
This function is currently reserved.
Input Format
Indicators Three blue LEDs indicate the input signal format being received and locked onto by the 9374-Series card:
• 3G
• HD
• SD
Continuous cycling of the LEDs indicates the 9374-Series card has not locked onto a particular format (as in the
case of no signal input).
Menu Depth
Indicators
This function is currently reserved.
RMT LED Blue LED flashes when 9374-Series card is receiving control message from remote network control (e.g.,
DashBoard™ or Cobalt
® Remote Control Panel)
REF LED Blue LED illuminates when the card is receiving valid framesync when set up for framesync reference.
LOCK LED Blue LED illuminates when the card unable to lock to framesync, or unable to lock to input standard.
ERR LED This function is currently reserved.
RM
T
RE
F
ER
R
LOCK
3G HD SD MENU DEPTH
Input Format
Indicators
Menu Depth
Indicators
Status
Indicators
Card Edge Manual Controls
