937X-OM (V1.3) 9374-SERIES PRODUCT MANUAL 2-7
Installation and Setup
Installing a Rear Module
RM20-9372-E Rear Module Provides the following connections:
• Two 3G/HD/SD-SDI video input BNCs ( SDI IN A
and SDI IN B )
• Eight AES I/O BNC (AES-3id) input/outputs
( AES 1 thru AES 8 ; I/O choice for each connection is
software-configurable; 8 ports total)
• MADI IN and MADI OUT MADI AES-10 BNC input
and output connectors
• Two analog unbalanced (“RCA”) audio monitor
outputs ( AN-AUD OUT L and AN-AUD OUT R )
• Four 3G/HD/SD-SDI video output BNCs
(2x SDI OUT A and 2x SDI OUT B )
RM20-9372-F Rear Module Provides the following connections:
• Two 3G/HD/SD-SDI video input BNCs ( SDI IN A
and SDI IN B )
• Eight AES I/O BNC (AES-3id) input/outputs
( AES 1 thru AES 8 ; I/O choice for each connection is
software-configurable; 8 ports total)
• MADI IN and MADI OUT MADI AES-10 BNC input
and output connectors
• Two analog unbalanced (“RCA”) audio monitor
outputs ( AN-AUD OUT L and AN-AUD OUT R )
• Two RS-485 ports ( COM 1 and COM 2 ); each
assignable as Input or Output-LTC Encoder A
thru Output-LTC Encoder D outputs
• Four 3G/HD/SD-SDI video output BNCs
(2x SDI OUT A and 2x SDI OUT B )
Note: • COM ports functional only on card equipped
with option +LTC.
• Rear module available equipped with
High-Density BNC (HDBNC) or DIN1.0/2.3
connectors as:
RM20-9372-F-HDBNC or
RM20-9372-F-DIN, respectively.

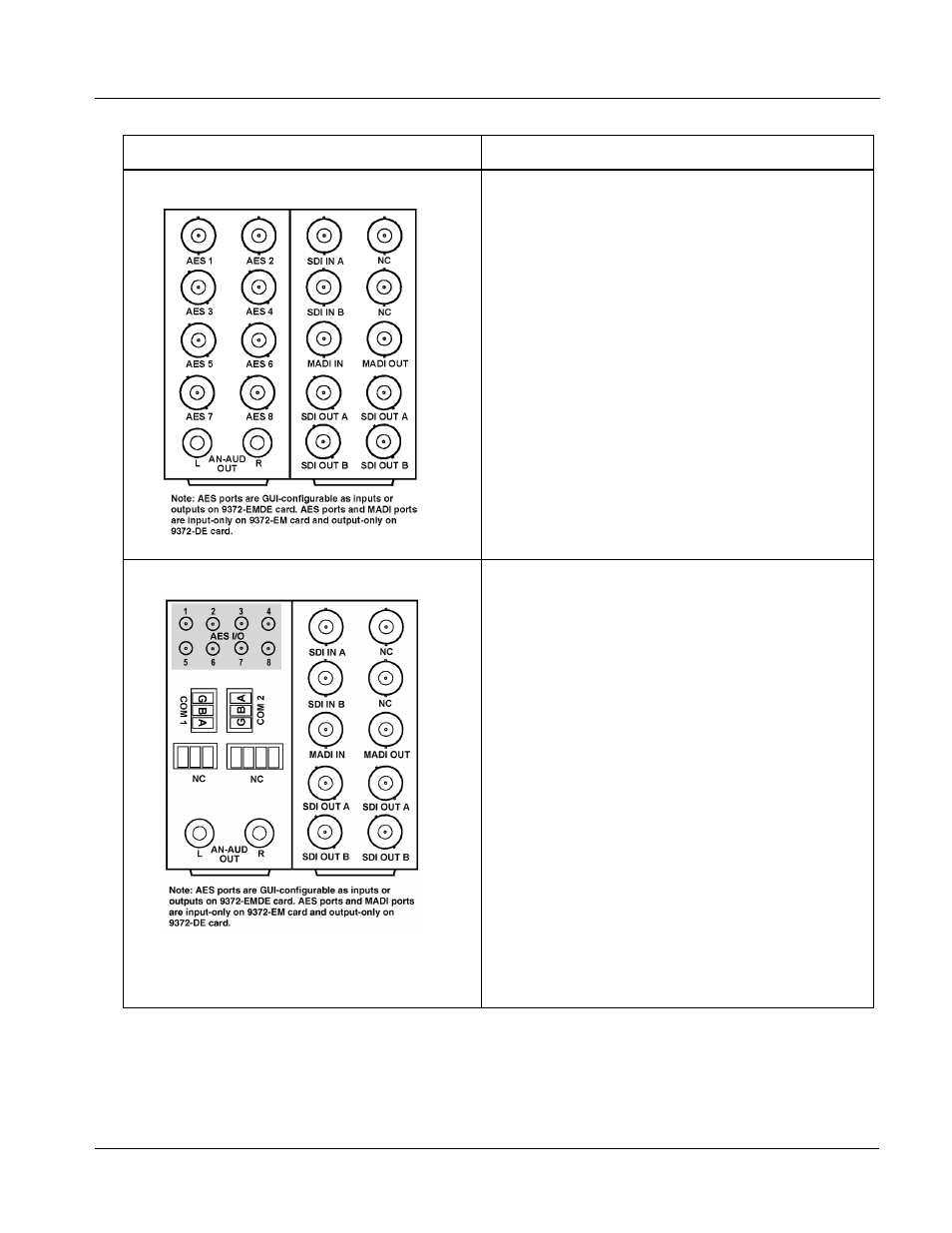

Table 2-1 9374-Series Card Rear Modules — continued
9374 Card Rear Module Description
