Daystar KU70038BK-1 User Manual
Page 4

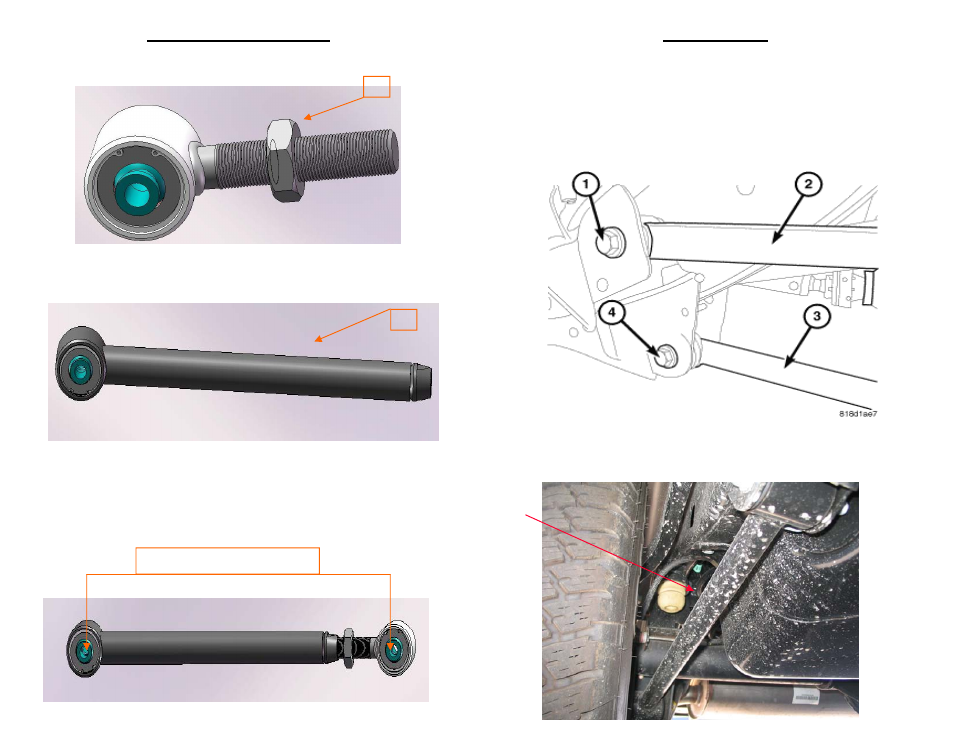

Control arm assembling steps
1.
Thread on the 1-14 jam nut (
1
)onto the rod end assembly.
2.
Thread on the rod assembly (
1
) into the control arm assembly.(
2
)
3.
Set the length of the arm to stock length if not lifted. If lifted add
a .250 to the length over 2.0 of lift. This is only a starting length.
You will need a wheel alignment to get the arms set to the right
length.
1
2
Center hole to center hole
4.
Raise up the jeep and place floor jacks under the frame. Place
wheel chocks behind the rear wheels
5.
Remove the wheels and place the jack under the rear axel and
support it.
6.
With a 21mm wrench and remove the rear lower control (
3
)
arm bolts (
4
).
7.
Remove the lower control arm. One side at a time.
Installation steps
