4. Dryer Electrical Conduits
60 PNEG-1403 Vision Series Model 1200 Portable Dryers
Lower Junction Box, Meter Roll Motor Conduit and
Rear Discharge Conduit (Continued)

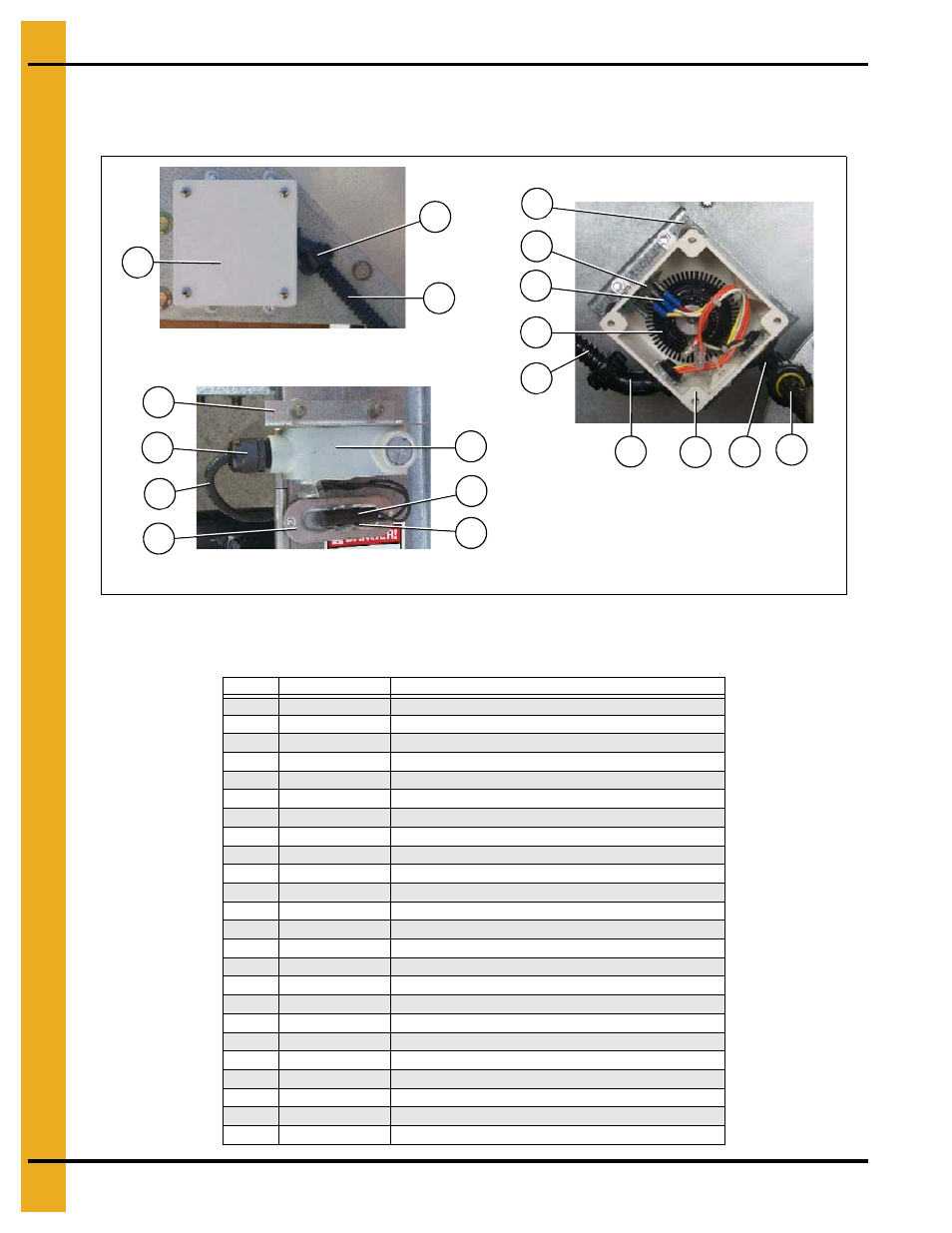

Figure 4F
Lower Junction Box, Meter Roll Motor Conduit and Rear Discharge Conduit Parts List
(See Figure 4E and 4F)
Ref # Part # Description
1 FH-7038 Sealtite PVC 3/8"
2 F-6913 Connector PVC 3/8" 45' with Nut
3 FH-7050 Elbow, 3/8"-90° PVC with Nut
4 FH-7049 Straight PVC with Lock Nut 3/8"
5 D03-0054 Fitting Compression 1/2" to Box
6 D03-0057 Conduit 1/2" EMT
7 FH-6972 Enclosure 4 x 4 x 2-1/2 White PVC
8 FH-1310 Connector 1/2"
9 WR-182SJOWA Wire 18/2 Type Sjow-A Black
10 D07-0028 Reducer 3/4" x 1/2" Hex Bushing
11 FH-7050 Elbow, 3/8"-90° PVC with Nut
12 D03-0060 Connector 3/8" Liquid-Tite to 1/2" EMT
13 D03-0054 Connector 1/2" EMT Compression
14 D03-0057 Conduit 1/2" EMT Metallic
15 D33-0002 Coupler 1/2" EMT Compression
16 D01-0462 Speed Sensor Box Bracket
17 D01-0527 Scr Meter Roll Speed Sensor
18 HH-7046 Disconnect 0.187 FEM
19 D01-0687 Metering Roll Timing Gear Assembly
20 D01-1105 Discharge Switch Mounting Plate
21 TFC-0075 Cover Aluminum, Conduit Body
22 SPD-2098 Clip, Mercury Switch
23 D03-0010 Mercury Switch
24 D03-0375 Conduit Body, LL Type
Rear discharge switch
conduit at rear left gusset
Rear discharge switch
(open to show mercury switch)
Meter roll speed sensor
7
2
1
16
17
18
19
1
11 7 1 11
20
8
9
21
24
23
22
