3. Fan/Heaters
46 PNEG-1403 Vision Series Model 1200 Portable Dryers
NG Pipe Train Assemblies

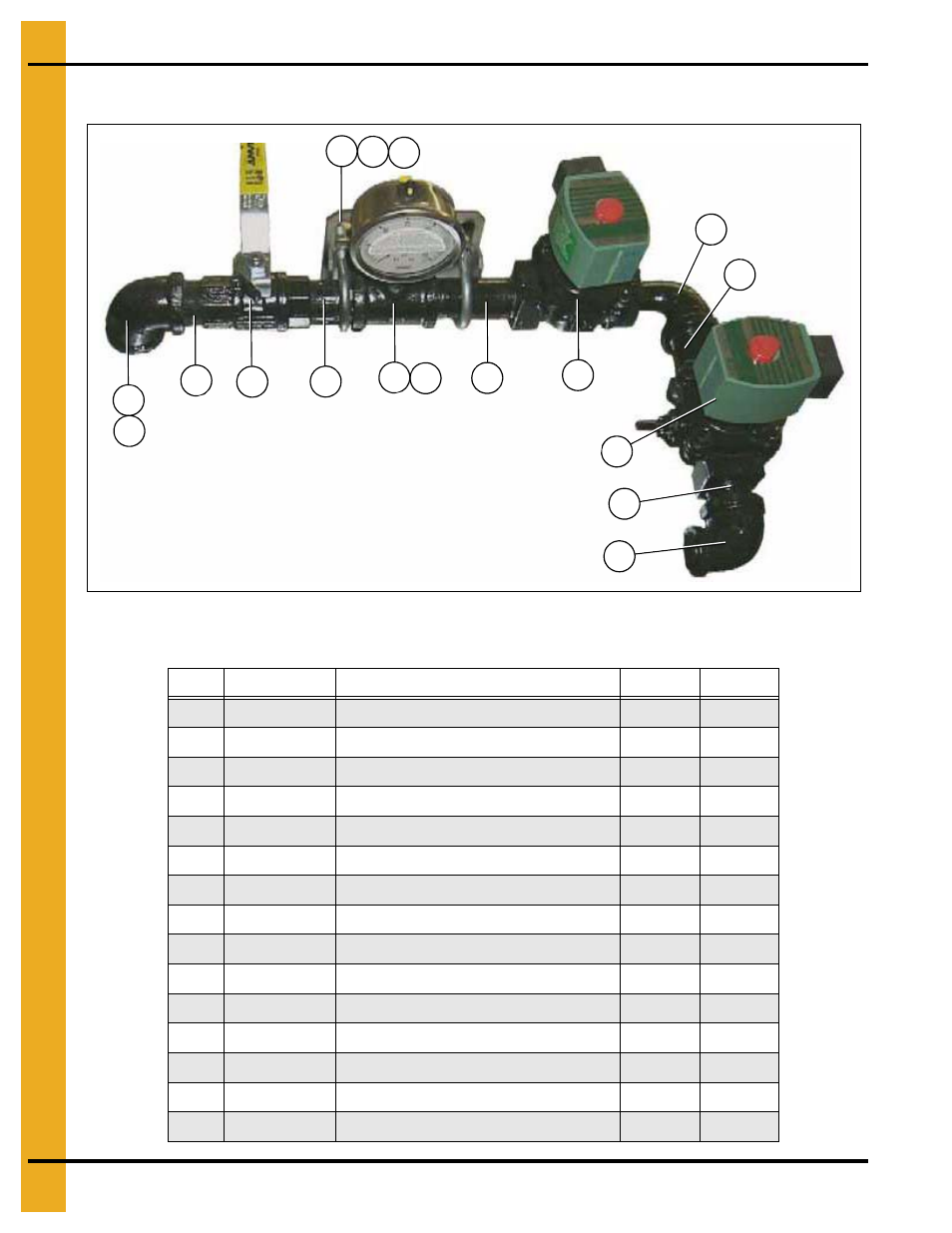

Figure 3J 26" and 28'' Fan/Heater NG Pipe Train Assembly
26" and 28'' Fan/Heater NG Pipe Train Assemblies Parts List
Ref # Part # Description 26'' F/H 28'' F/H
1 THH-4149 Elbow, 3/4"-1/2" - 90° Reducer SCH 40 1
1a THH-4120 Elbow, 3/4"-90° SCH 40 1
2 THH-4121 Nipple, 3/4" Close SCH 40 2 2
3 007-1048-3 Ball Valve, 3/4" with Lever Handle 1 1
4 THH-4125 Nipple, 3/4" x 2" SCH 40 2 2
5 THH-4154 Tee, 3/4" x 3/4" x 1/4" SCH 40 1 1
6 D08-0022 Gauge, Pressure 0-15# 1 1
7 THH-4136 Nipple, 3/4" x 3" SCH 40 1 1
8 056-2223-8 Valve, Solenoid 3/4" NPT 115V Din 1 1
9 056-2228-7 Valve, Solenoid 3/4" NPT 115V Bypass 1 1
10 THH-4066 Elbow, 3/4" x 90° Street SCH 40 1 1
11 007-1307-3 Elbow, 1-3/4" Reducer SCH 40 1 1
12 326-1047-9 U-Bolt 5/16"-18 x 1-3/8" x 2-3/16" 2 2
13 401-5503-8 Plumbing Mounting Bracket 1 1
14 401-5255-5 Plumbing Mounting Base Bracket 1 1
1
1a
2 3 4 6 5 7 8
10
4
9
2
11
12 13 14
