6. Sidedraw Accessory Instructions
52 PNEG-1400 WCL Commercial 4" Corrugation Externally Stiffened Grain Bin
Sidedraw System Installation (Continued)
Sidewall Overlap
1. For proper watershed, make sure that the upper side sheet overlaps on top of the sidedraw
weldment. (See Figure 6F.)

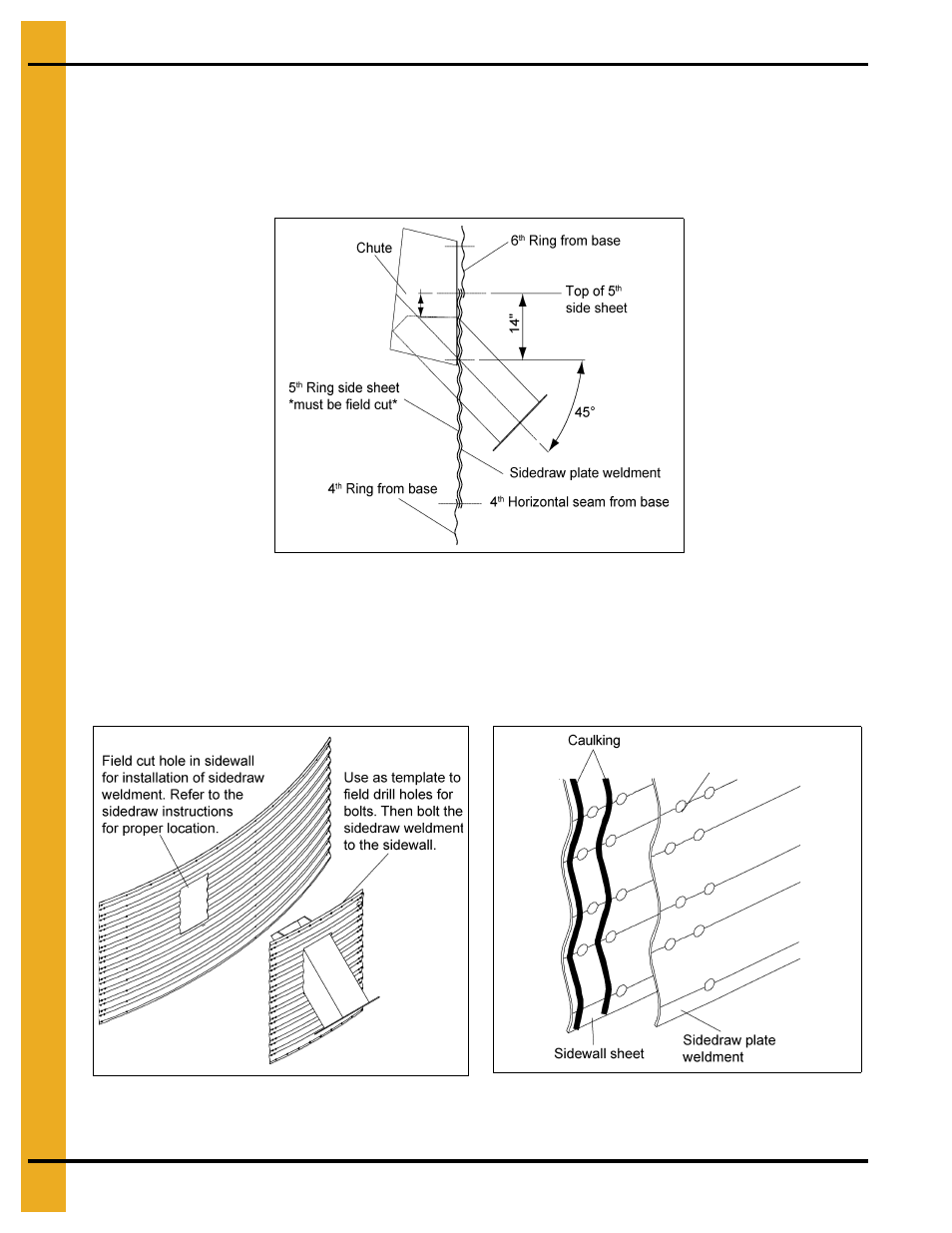

Figure 6F
Caulking
1. To seal the sidedraw weldment to the sidewall sheets use: two (2) beads of caulking, one bead of
caulk on each side of the outside row of vertical bolts. Use discharge tube weldment as a template
to field drill the bolt holes through sidewall sheet. Use 3/8" bolts and nuts provided to bolt sheets
together
See Figure 6G and Figure 6H . Use supplemental caulk as necessary for sealing purposes.
Figure 6G Figure 6H
