3. Bin Assembly

PNEG-1400 WCL Commercial 4" Corrugation Externally Stiffened Grain Bin

15

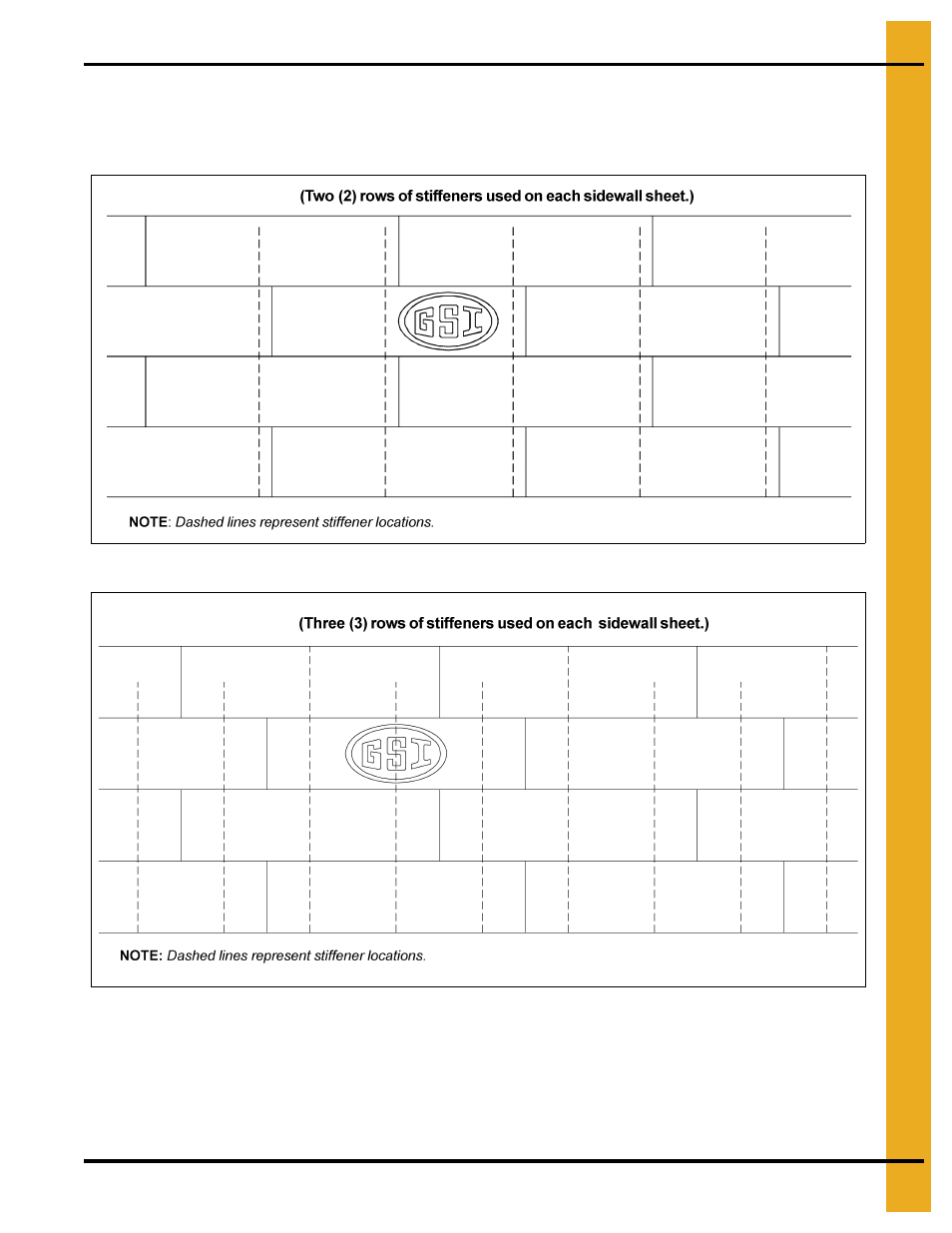

Decal Sheet Placement

NOTE: The decal sheets are located in the second ring from the top. They are to be spaced evenly around

the diameter of the bin.

Figure 3A 2 Post

Figure 3B 3 Post
