3. Bin Assembly
PNEG-1400 WCL Commercial 4" Corrugation Externally Stiffened Grain Bin 21

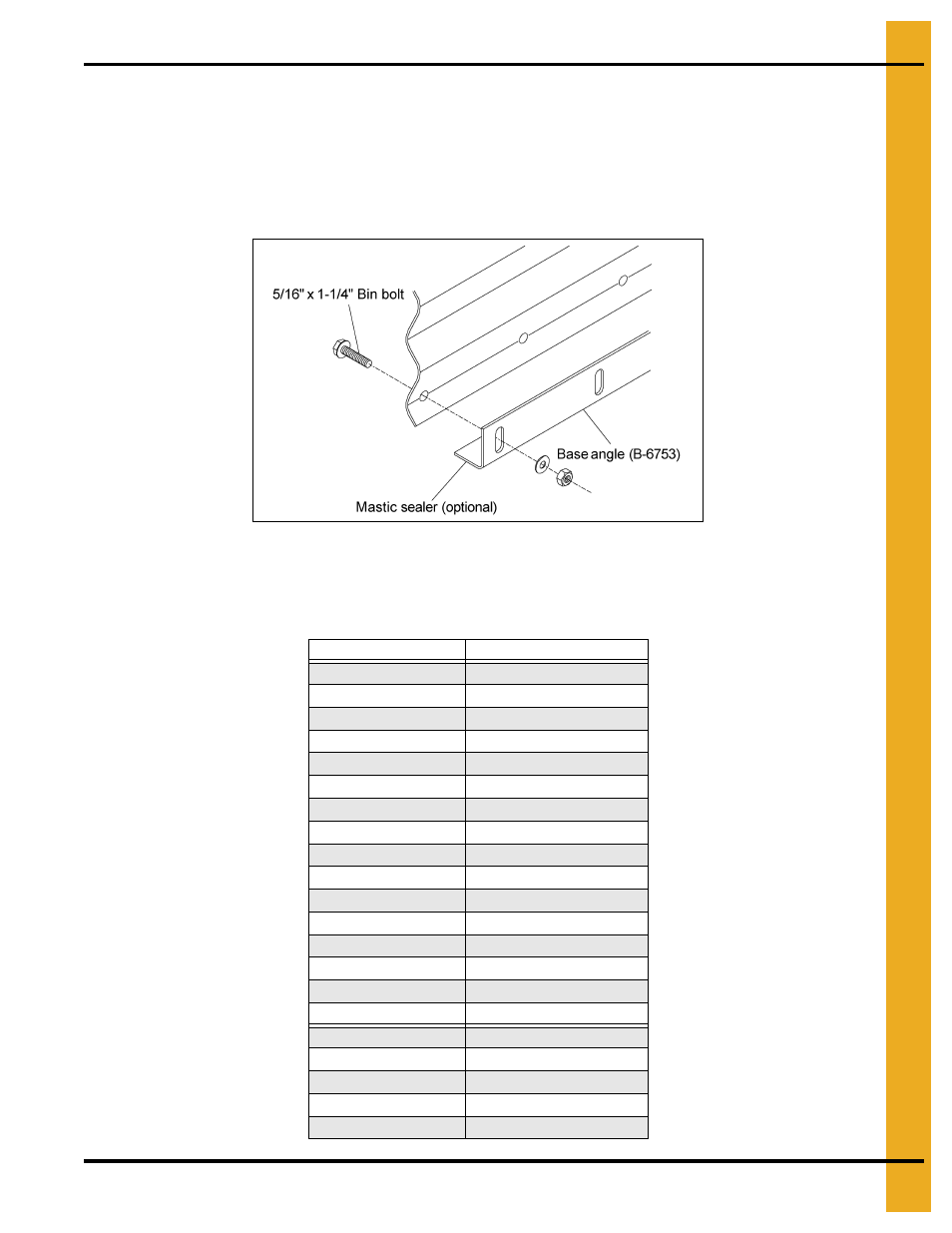

Base Angle Installation
On the lower edge of the final bottom ring, attach the base angle ring using 5/16" x 1-1/4" bin bolts. Before
the bolts are tightened, push the angle tight against the bottom edge of the sheet. Before lowering the bin,
apply the optional base sealer to the entire underneath side of the base angle.
(See Figure 3I.) Next, lower
the bin onto the foundation and check for an adequate seal.
If base sealer strip is not used, another method should be used to seal the base ring to the concrete.
Figure 3I
4" Sidewall Gauges
NOTE: Some colors are different than those used for stiffeners.
Sidewall Gauge Color Code
20 Red
19 Black/Yellow
18 Orange
17 Pink/Light Blue
16 Blue
15 Brown/Red
14 Green
13 Yellow/Blue
12 Black
11 Pink/Purple
10 Light Blue/Purple
9 Blue/Orange/Purple
8 Yellow/Purple
6 White/Purple
5 Fluorescent Green/Purple
Laminated Sidewall Color Code
10 Light Blue/Gold
9 Blue/Orange/Gold
8 Yellow/Gold
6 White/Gold
5 Fluorescent Green/Gold
