6. Sidedraw Accessory Instructions
50 PNEG-1400 WCL Commercial 4" Corrugation Externally Stiffened Grain Bin
Sidedraw Installation
4"/WC Sidedraw Chute Installation

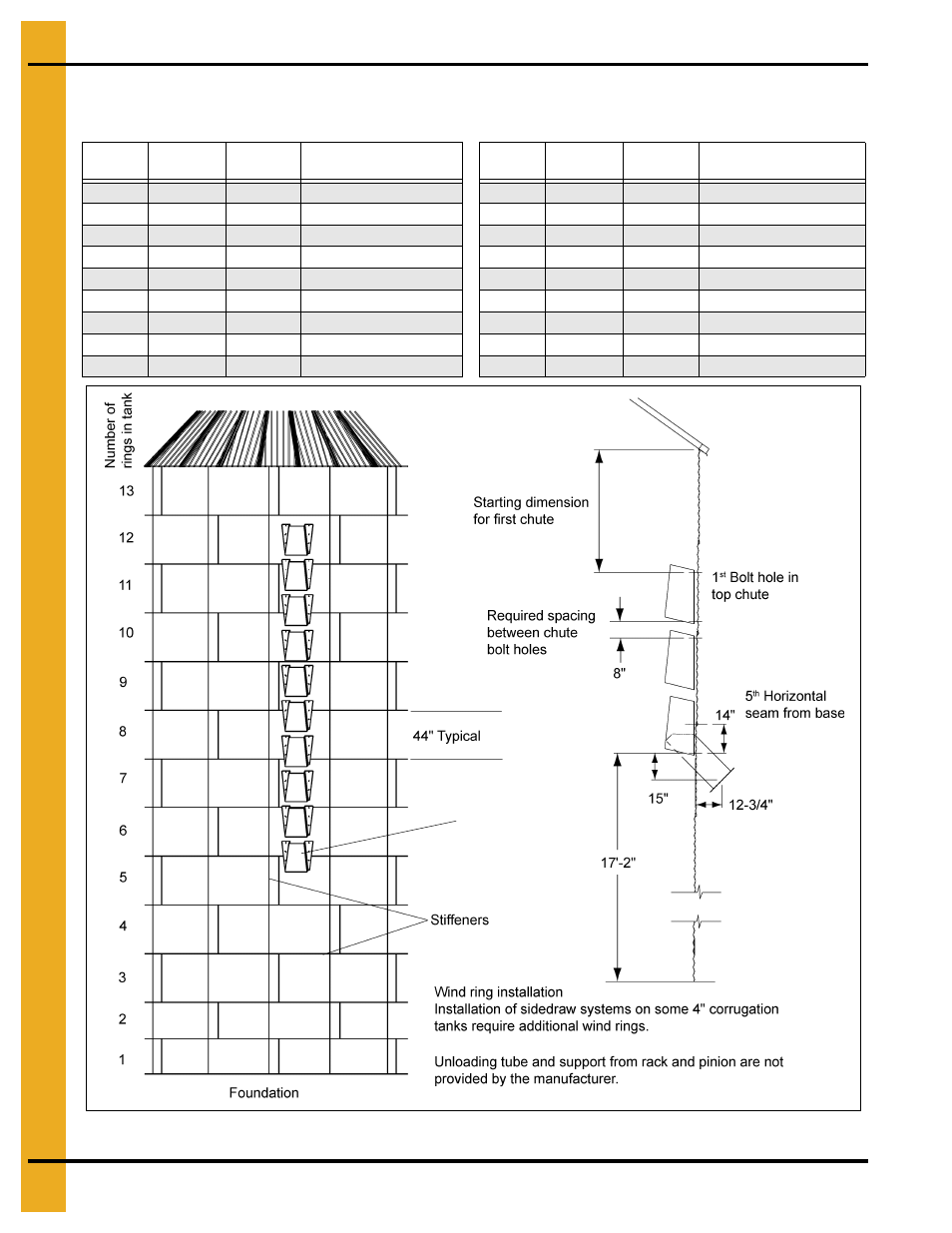

Figure 6C Viewed from Inside Tank (2 Post Tank Shown)
Number
of Rings
Starting
Dimension
Number
of Chutes
Horizontal Location
for First Chute
Number
of Rings
Starting
Dimension
Number
of Chutes
Horizontal Location
for First Chute
24 58 25 Center between Stiffener 15 46 13 Center between Stiffener
23 46 24 Center between Stiffener 14 34 12 Center between Stiffener
22 34 23 Center between Stiffener 13 54 10 Center between Stiffener
21 54 21 Center between Stiffener 12 42 9 Center between Stiffener
20 42 20 Center between Stiffener 11 62 7 Center between Stiffener
19 62 18 Center between Stiffener 10 50 6 Center between Stiffener
18 50 17 Center between Stiffener 9 38 5 Center between Stiffener
17 38 16 Center between Stiffener 8 58 3 Center between Stiffener
16 58 14 Center between Stiffener 7 46 2 Center between Stiffener
See Detail 6E
on Page 51
See Detail 6D
on Page 51
