3. Bin Assembly

22

PNEG-1400 WCL Commercial 4" Corrugation Externally Stiffened Grain Bin

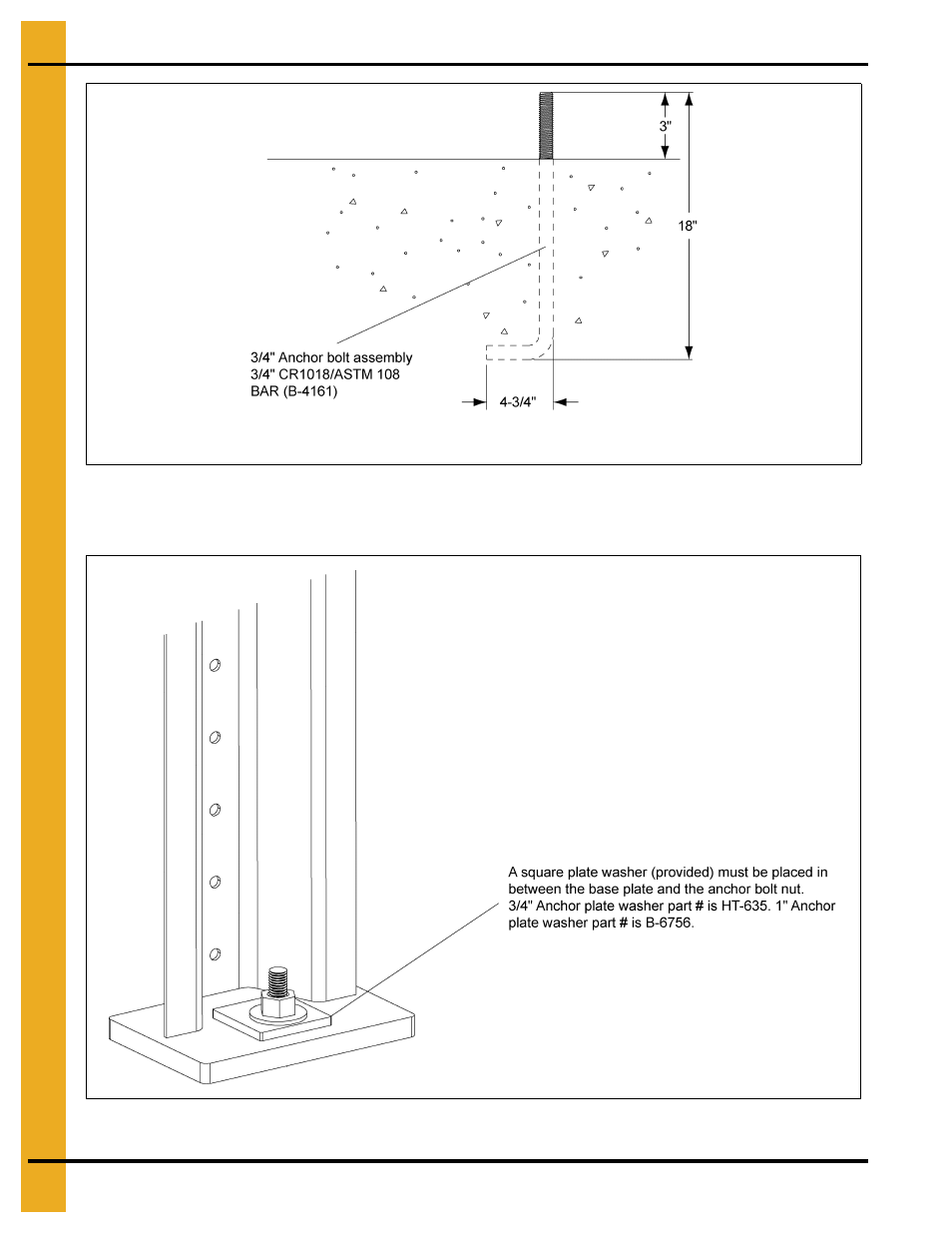

Figure 3J Anchor Bolt Detail

Anchor Bolt Washer Installation

Figure 3K

NOTE: This is a minimum requirement for anchorage on standard tanks. Refer to

Sidedraw Instructions on Page 45

for

special anchorage details.
