4. 4" WCL Commercial Tank Stiffener Instructions

PNEG-1400 WCL Commercial 4" Corrugation Externally Stiffened Grain Bin

35

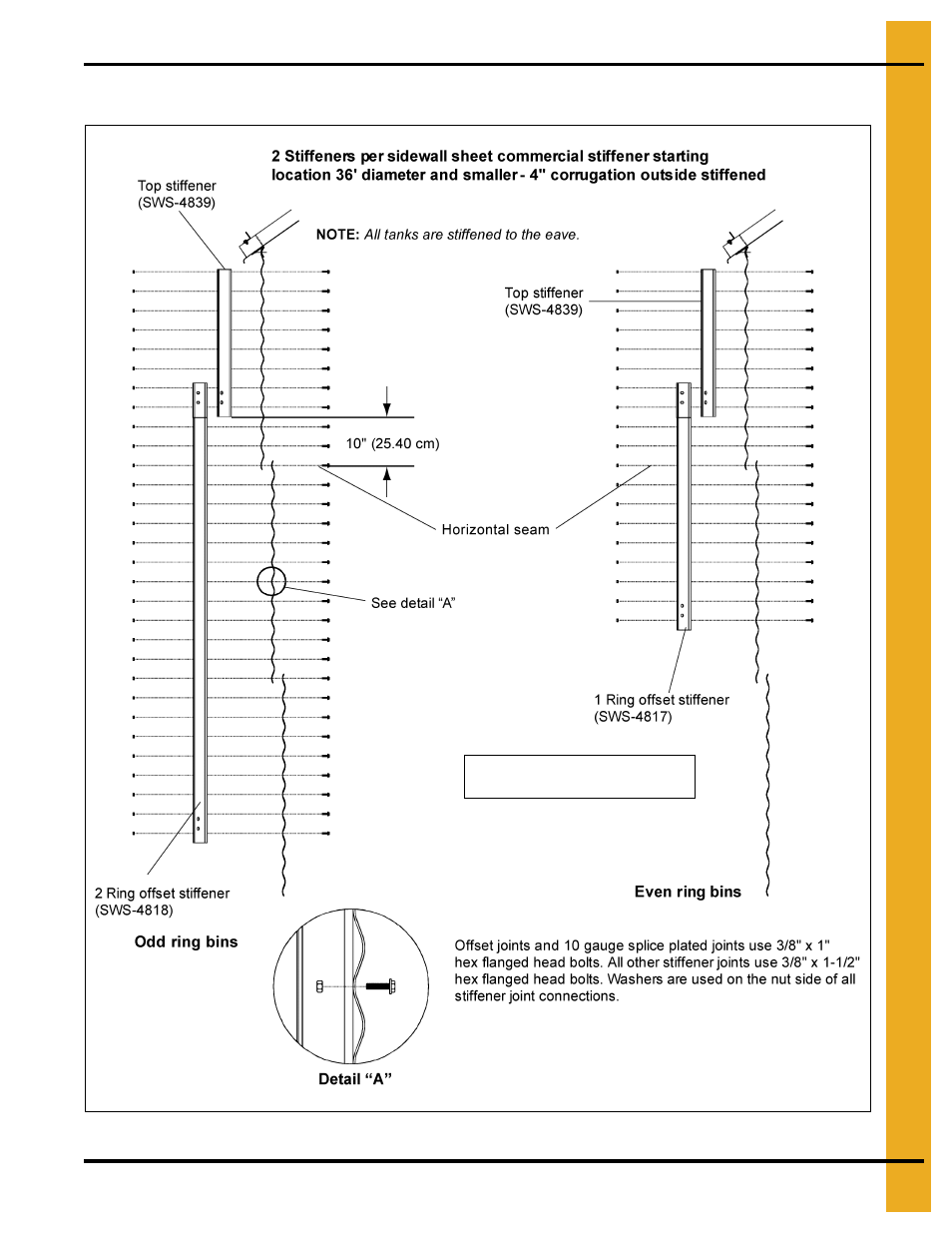

Stiffeners to Sidewall Sheet Details

Figure 4F

NOTE: See

Hardware Usage Chart

on Page 18

for proper bolt usage.
