3. Bin Assembly
PNEG-1400 WCL Commercial 4" Corrugation Externally Stiffened Grain Bin
25
Refer to 4" commercial tank bolting requirements for complete bolt usage on
and
.

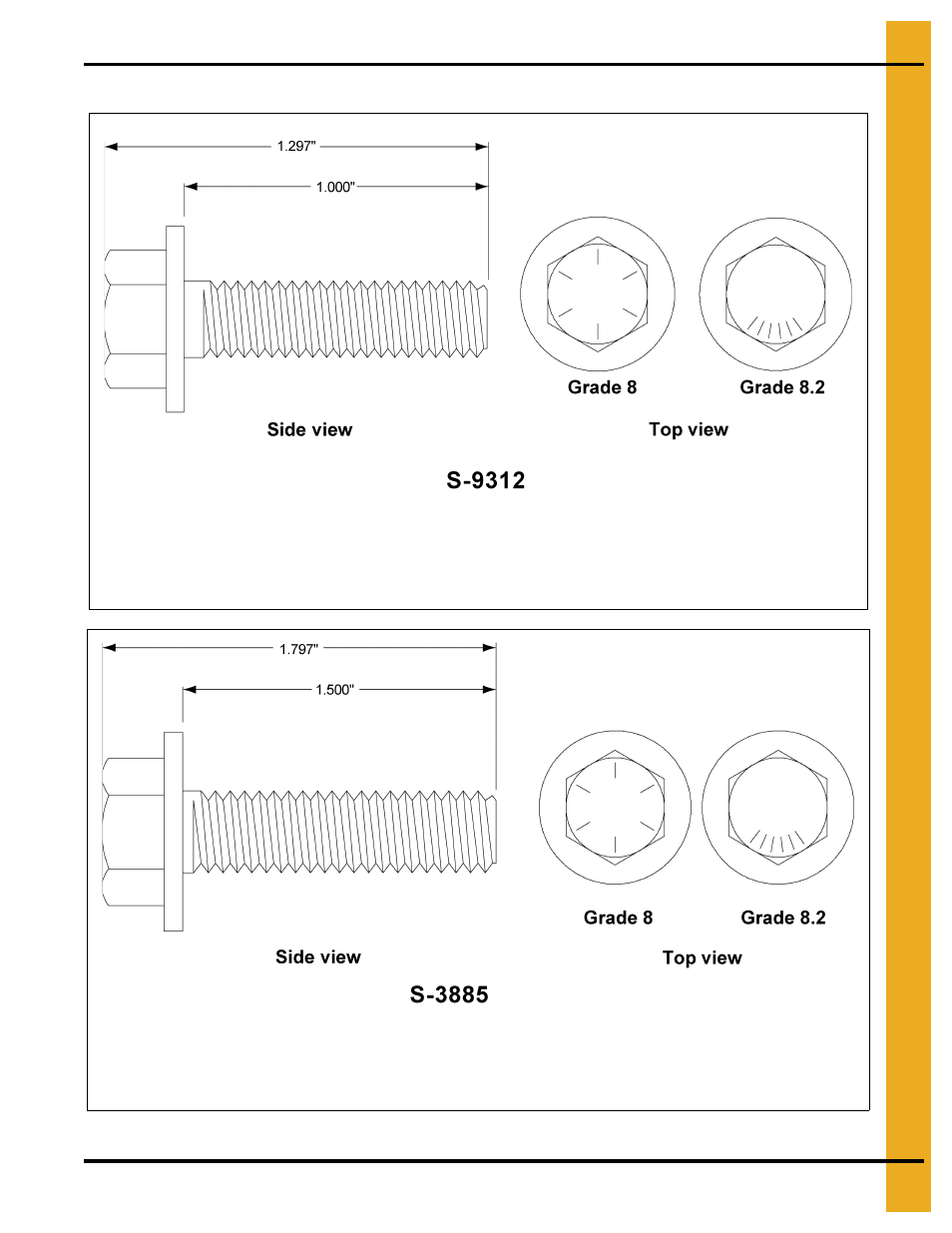

0.4375" x 1.000" Pre-assembled steel backed neoprene washer.
This bolt is used in horizontal and vertical seams for 11gauge-9 gauge sidewalls and horizontal
seams on 8 gauge sidewalls.
0.4375" x 1.500" Pre-assembled steel backed neoprene washer.
This bolt is used in the horizontal seams of all laminated sidewall rings. It is also used in some
horizontal overlap seams.
