Storage Chamber Platform
Topics Covered in this Chapter
▪ Storage Chamber Platform Assembly
▪ Storage Chamber Platform Parts
▪ Extension Angle Hole Detail
Storage Chamber Platform Assembly
1. Use 5/16” x 3/4” truss head bolts and nuts for all connections.
2. Mount platform mounting angles to the side of the bin located 9–3/8” from the ladder and 56–1/4”
apart.
3. Attach the platform supports and diagonal supports to the mounting angles.
4. Attach the three floor braces to the platform supports.
5. Attach the platform floor and toe boards simultaneously to the floor braces.
6. Bolt the vertical entrance angle to the platform floor, toe plate, and platform support.
7. Bolt the handrail posts to the platform floor and toe plates.
8. Attach the handrails to the vertical posts.

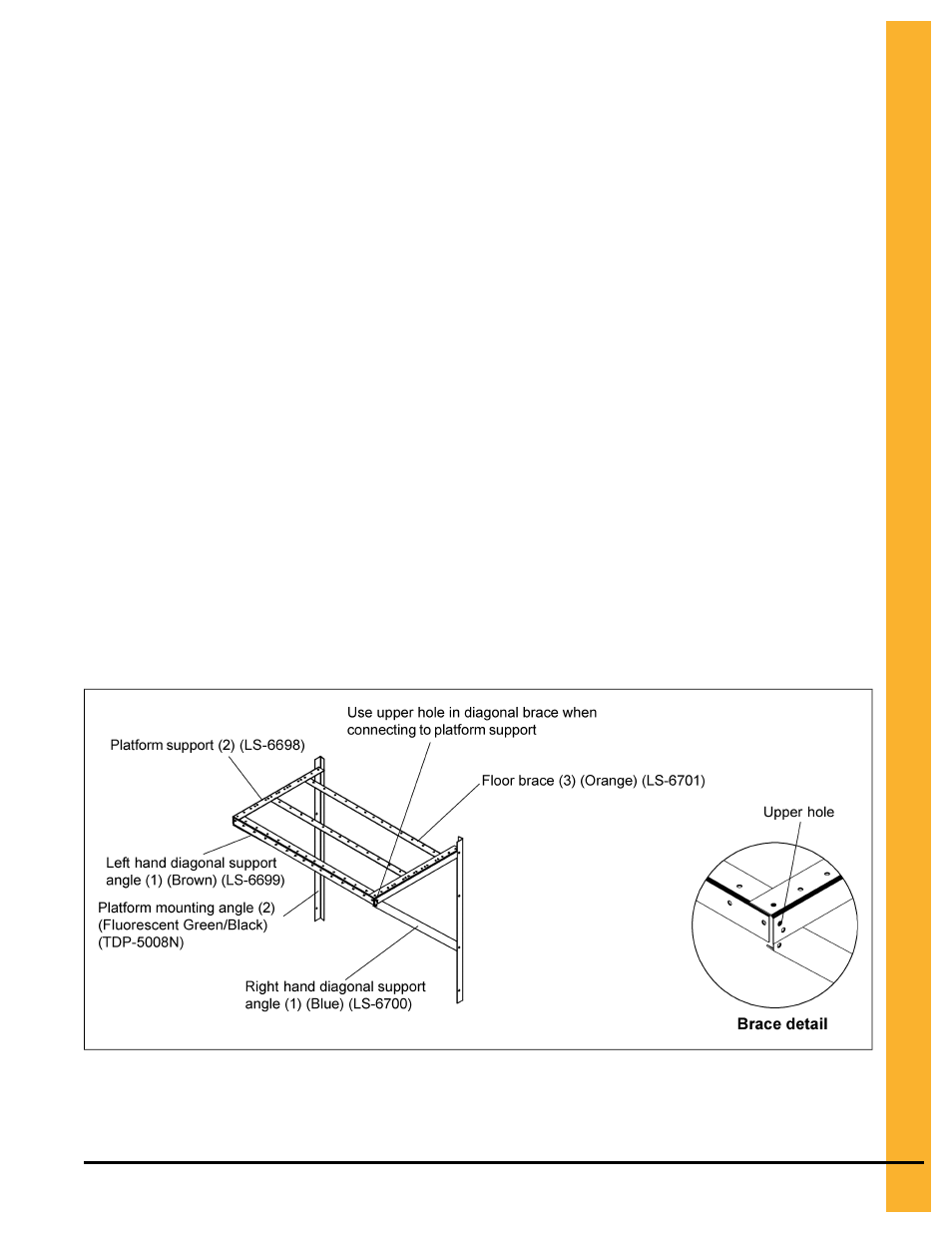

Figure 4-1 Platform Support Details
