Ladder Section Assembly

1. Attach two (2) splice plates (LDR-4317) to the ends of both ladder sections, connecting them

together.

2. Fasten with 5/16" x 3/4" bolts. The head of the bolt should be to the inside of the ladder with the

splice plate on the outside.

NOTE: Wind rings must be installed in relation to the ladder rungs leaving a minium of 1–1/2” below a

ladder rung and 4–1/2” above a ladder rung.

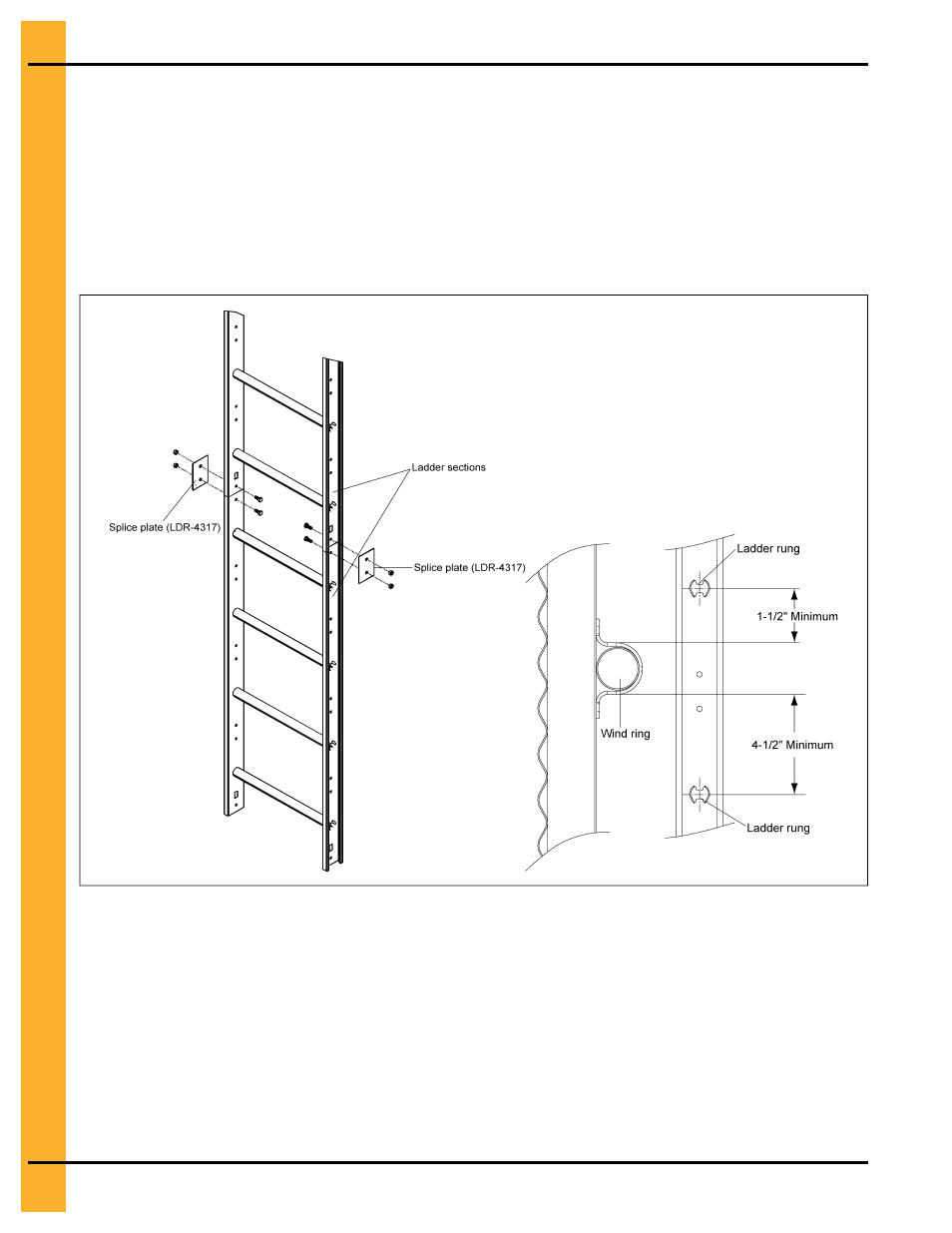

Figure 2-2 Ladder Section Assembly
