Ladders
Topics Covered in this Chapter
▪ Ladder Extension Rail Installation
▪ Ladder Section Assembly
▪ Ladder Standoff Bracket Detail
Ladder Extension Rail Installation
All ladder systems that include a safety cage must also include ladder extension rails attached to the top 4'
ladder section.
1. Bolt spacer brackets through the top and bottom set of holes in the top ladder section
2. Attach the extension rails to the spacer brackets aligning the bottom of the extension flush with the
bottom of the top ladder section.
3. Fasten with 5/16" x 3/4" bin bolts.

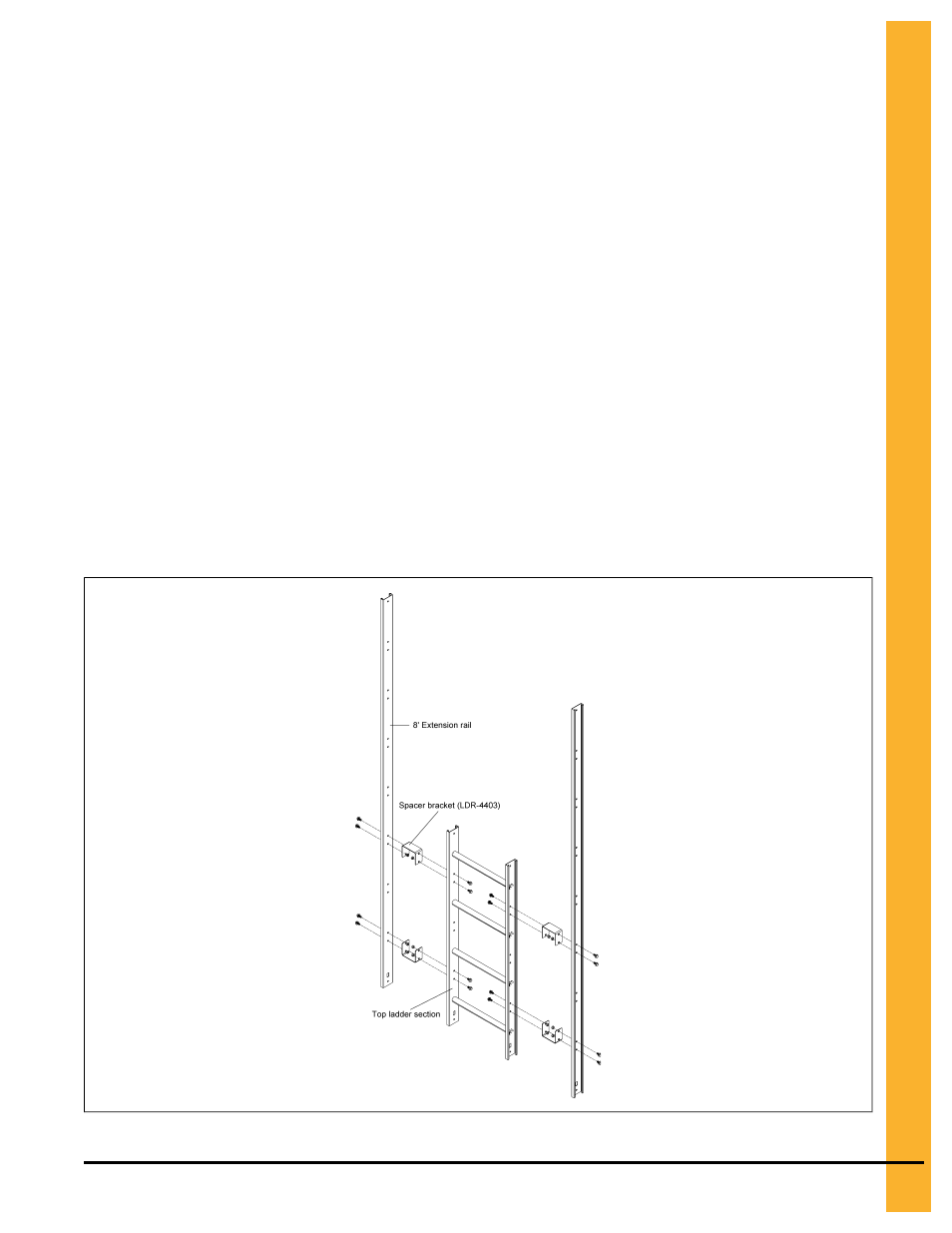

Figure 2-1 Ladder Extension Rail
