Portable Dryer Troubleshooting

36

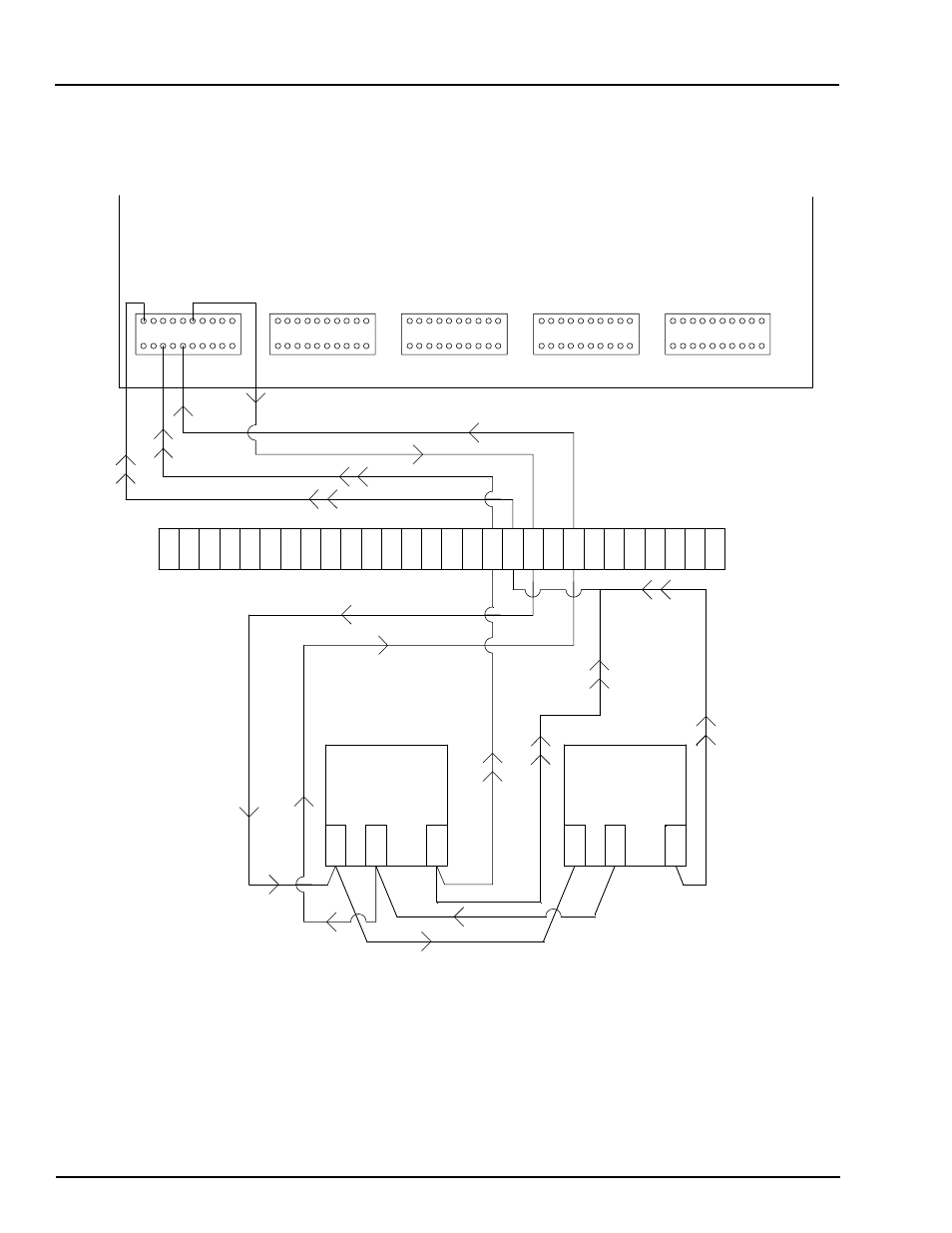

Meter Roll Sensor Wiring

1997 Dryers have only 1 meter roll board.

Remove one meter roll board and tie the

2 T-3 wires together.

Board

Meter Roll

Board

Meter Roll

12 Volt +

12 Volt -

12 Volt -

12 Volt +

Pulse

Pulse

T-2

T-1

T-3

T-2

T-1

T-3

METER ROLL SENSOR

J5-5

S2

S1

J5-12

J1-20

J5-9

J5-19

J5-16

J5-4

J7-8

J7-3

B1

J7-4

J9-16

J1-13

J4-12

J4-19

J1-19

J1-11

J1-9

J1-5

9

12

J5

16

19

J1-7

J5-8

J 1

J4

J3

J2

Wiring Reference
