5. 42'-60' Assembly Instructions
PNEG-1787 42'-135' “X” Series Sidewall Stair and Eave Platform
47
42'-60' Eave Platform Sub-assembly - Reverse

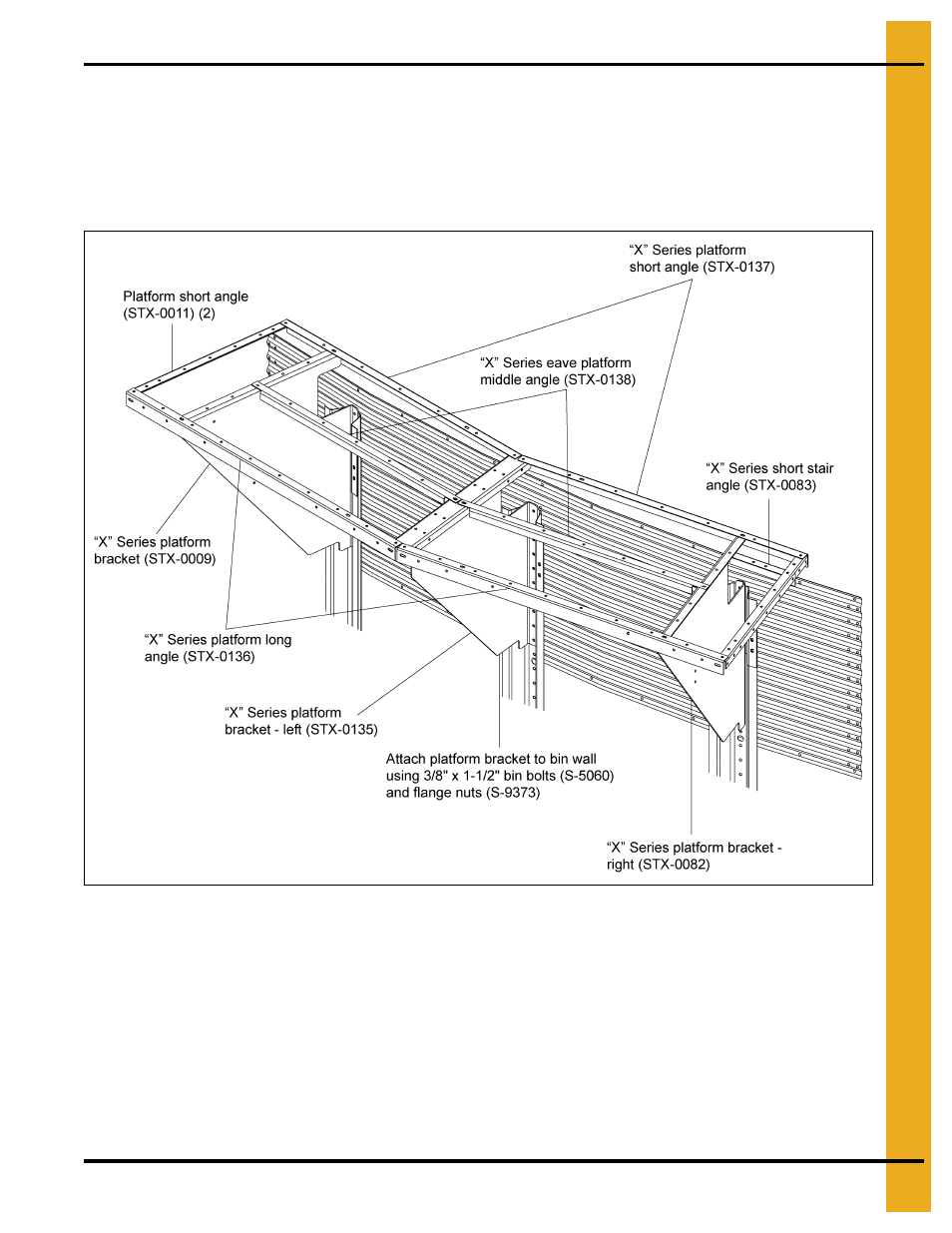

shows the assembly of the platform bracket to the stiffeners and sidewall. Platform bracket
must line up with a roof rib and roof beam.
also shows the assembly of platform substructure to the platform brackets. Use
5/16" hardware.
Figure 5M
