4. 72'-135' Assembly Instructions
PNEG-1787 42'-135' “X” Series Sidewall Stair and Eave Platform
19
72'-135' Sidewall Stair Sub-assemblies - Reverse
“X” Series Top Sidewall Stair Assembly - Reverse

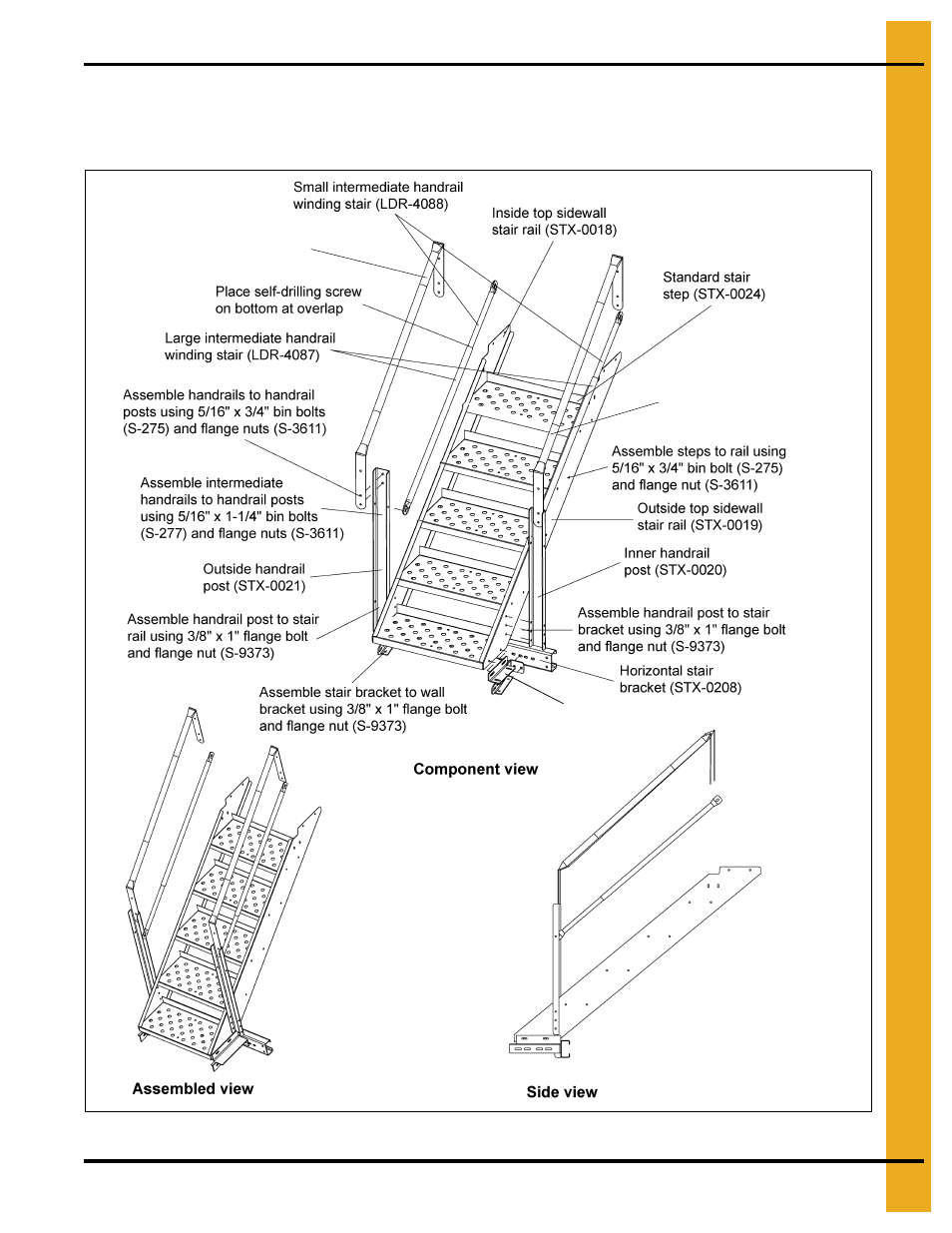

Figure 4E
Top section handrail outside
(See chart on
for
part numbers.)
Top section handrail inside
(See chart on
part numbers.)
Stair bracket assembly
(See
for part
numbers.)
