PNEG-1787 42'-135' “X” Series Sidewall Stair and Eave Platform
35
5. 42'-60' Assembly Instructions

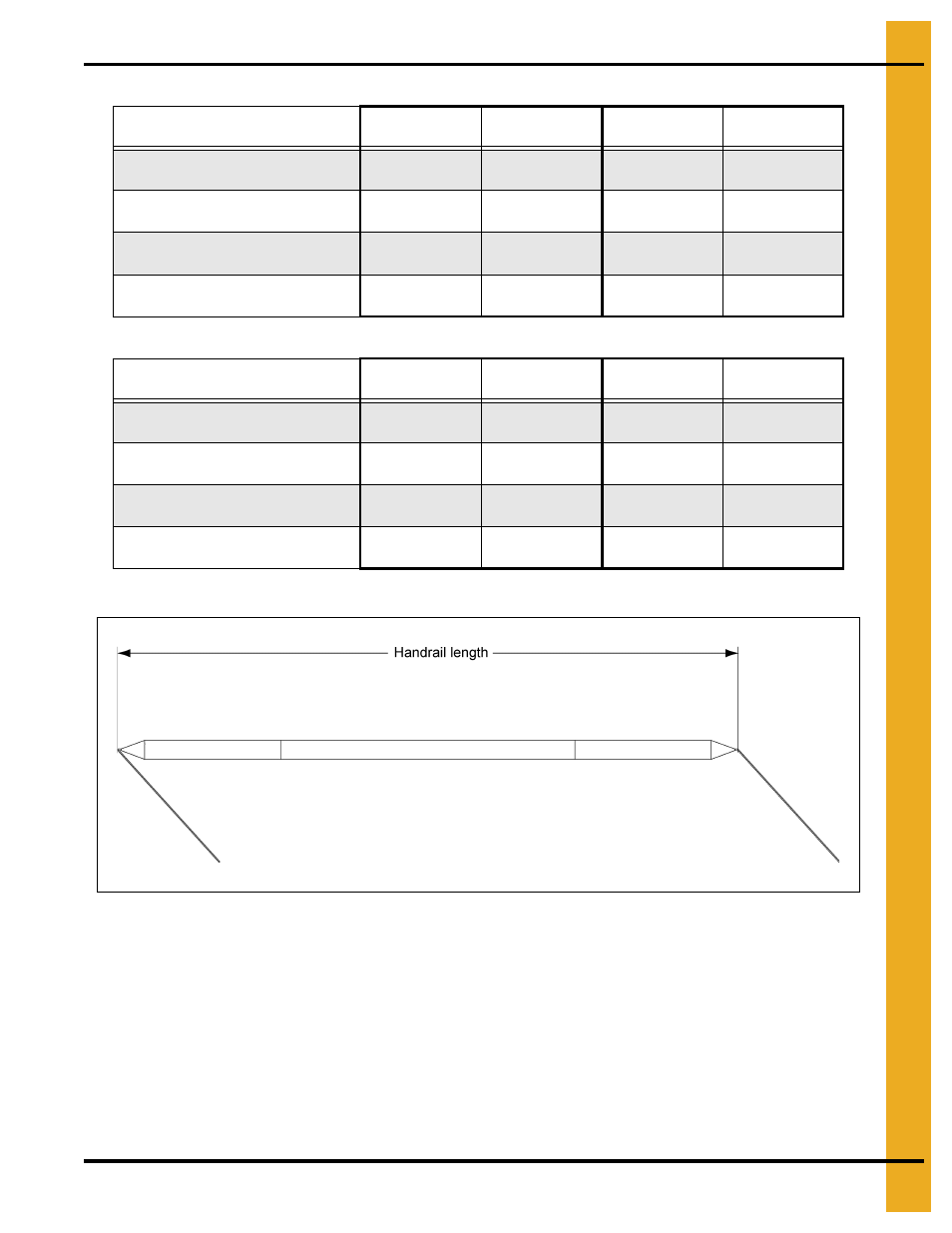

Sidewall Stair Handrail Lengths and Part Numbers
Description
Handrail Length
54' Versions
Handrail Length
60' Versions
Top Section Handrail Outside
47.415"
STX-0270
46.289"
STX-0260
Top Section Handrail Inside
46.289"
STX-0271
45.414"
STX-0261
Standard Section Handrail Outside
52.95"
STX-0269
52.44"
STX-0262
Standard Section Handrail Inside
50.436"
STX-0268
50.125"
STX-0263
Description
Handrail Length
42' Versions
Handrail Length
48' Versions
Top Section Handrail Outside
47.865"
STX-0278
47.415"
STX-0274
Top Section Handrail Inside
46.289"
STX-0279
45.79"
STX-0275
Standard Section Handrail Outside
53.857"
STX-0277
53.181"
STX-0273
Standard Section Handrail Inside
50.613"
STX-0276
50.436"
STX-0272
