X” series platform assembly - reverse – Grain Systems Bin Accessories PNEG-1787 User Manual
Page 23
4. 72'-135' Assembly Instructions
PNEG-1787 42'-135' “X” Series Sidewall Stair and Eave Platform
23
72'-135' Eave Platform and Manway Guard Sub-assemblies
(Continued)
“X” Series Platform Assembly - Reverse

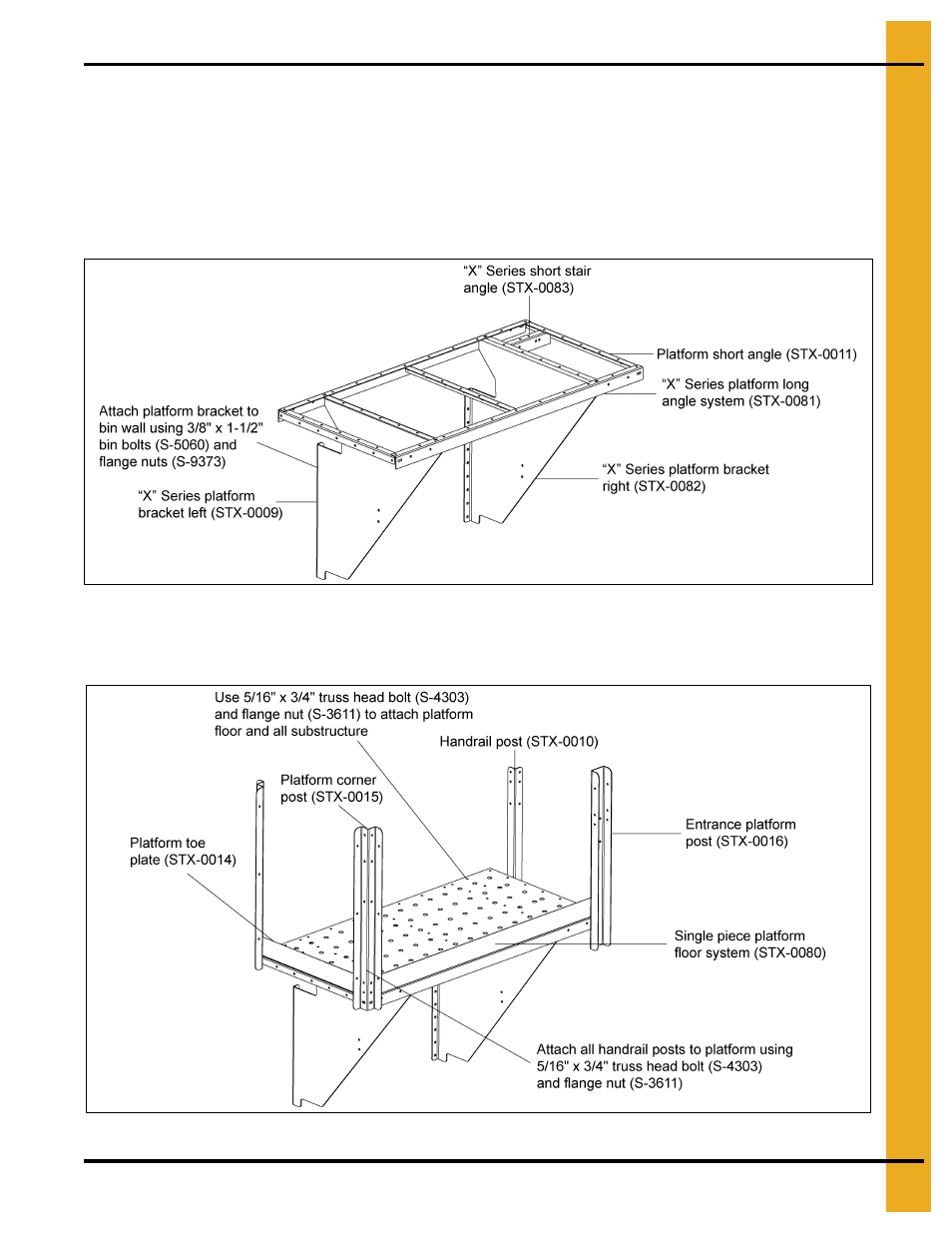

shows the assembly of the platform supports. Use 5/16"
hardware at all the connection
points. (The bin wall and platform floor is hidden for clarity. Platform floor will have to be attached
at the same time as support angles.)
Figure 4J
shows the assembly of the platform toe plate, handrail post, platform post and platform
floor system. This must all be assembled at the same time using 5/16" hardware.
Figure 4K
