PNEG-1787 42'-135' “X” Series Sidewall Stair and Eave Platform
4. 72'-135' Assembly Instructions

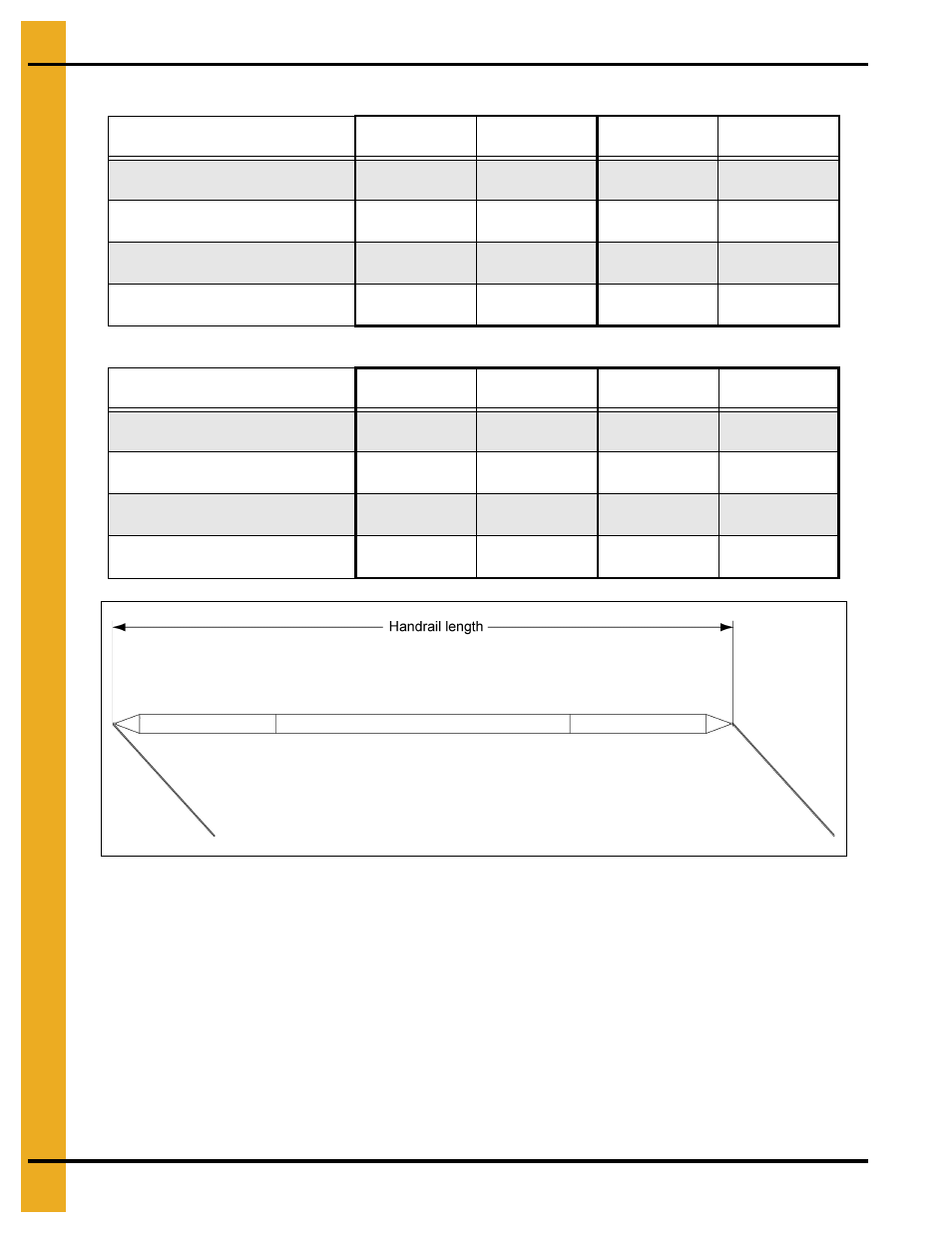

Sidewall Stair Handrail Lengths and Part Numbers
Description
Handrail Length
105' Versions
Handrail Length
135' Versions
Top Section Handrail Outside
49.062"
STX-0030
48.562"
STX-0096
Top Section Handrail Inside
48.187"
STX-0031
48.062"
STX-0093
Standard Section Handrail Outside
50.936"
STX-0032
50.436"
STX-0094
Standard Section Handrail Inside
49.687"
STX-0033
49.562"
STX-0095
Description
Handrail Length
90' Versions
Handrail Length
72'-78' Versions
Top Section Handrail Outside
49.452"
STX-0126
50.125"
STX-0130
Top Section Handrail Inside
48.360"
STX-0127
48.500"
STX-0131
Standard Section Handrail Outside
51.326"
STX-0128
51.854"
STX-0132
Standard Section Handrail Inside
49.860"
STX-0129
50.000"
STX-0133
