4. 72'-135' Assembly Instructions

20

PNEG-1787 42'-135' “X” Series Sidewall Stair and Eave Platform

72'-135' Sidewall Stair Sub-assemblies - Reverse (Continued)

“X” Series Standard Stair Assembly - Reverse

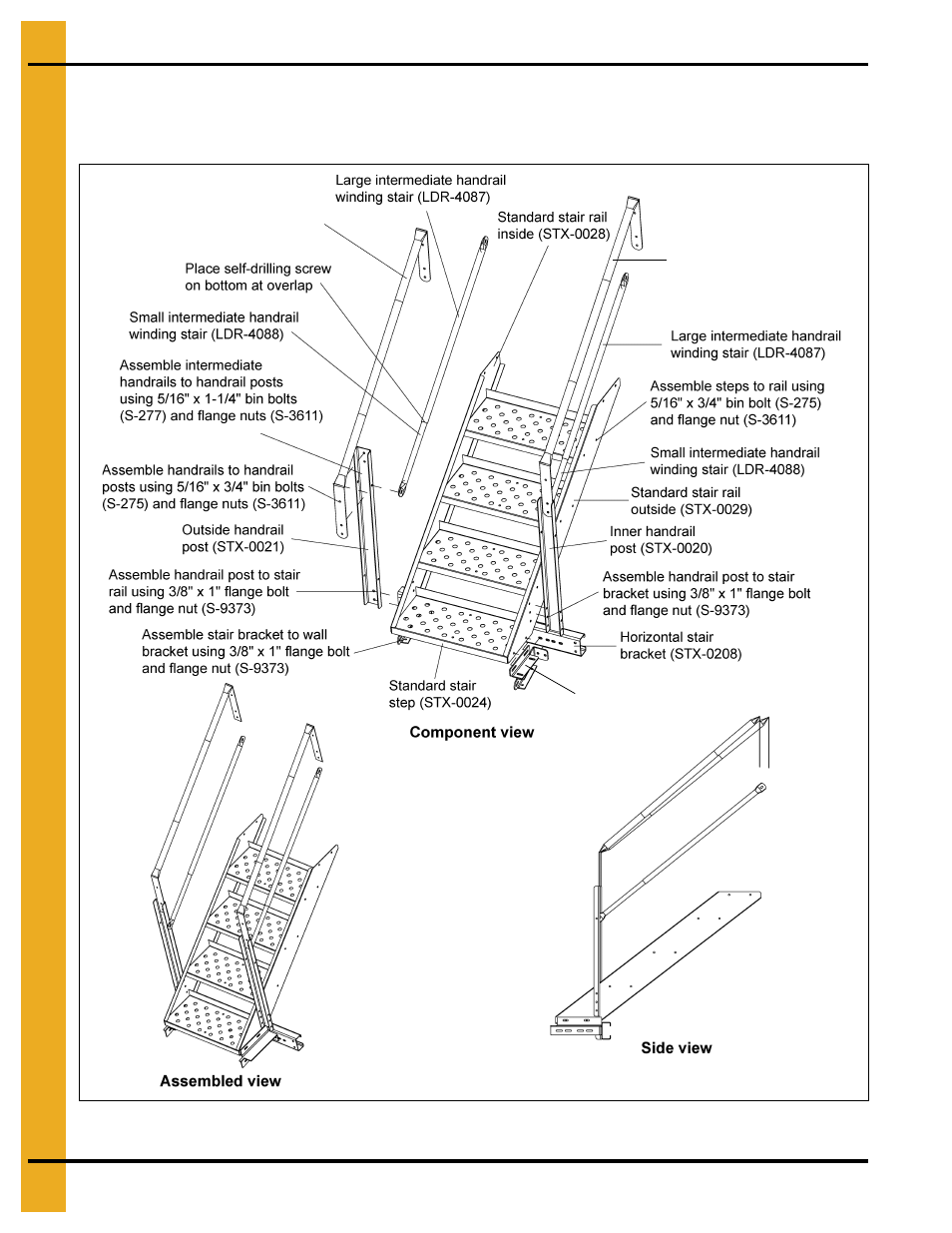

Figure 4F

Standard section handrail
outside (See chart on

for part numbers.)

Standard section handrail
inside (See chart on

for part numbers.)

Stair bracket assembly
(See

for part

numbers.)
