5. 42'-60' Assembly Instructions
42
PNEG-1787 42'-135' “X” Series Sidewall Stair and Eave Platform

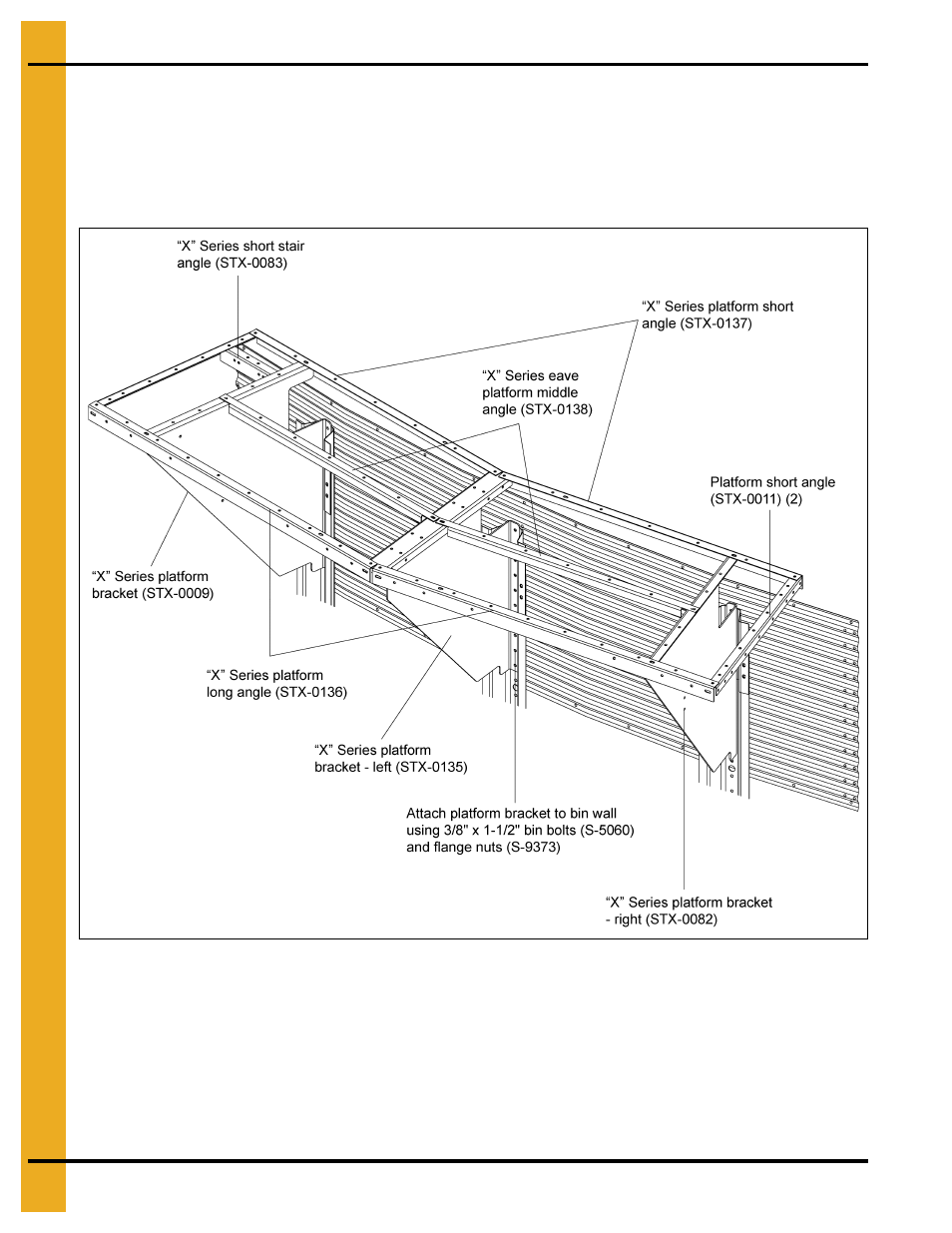

42'-60' Eave Platform Sub-assembly
1.
shows the assembly of the platform bracket to the stiffeners and sidewall. Platform
bracket must line up with a roof rib and roof beam.
2.
also shows the assembly of platform substructure to the platform brackets.
Use 5/16" hardware.
Figure 5G
