PNEG-225 Corrugated Floor and Monorail Layouts

5. Layouts

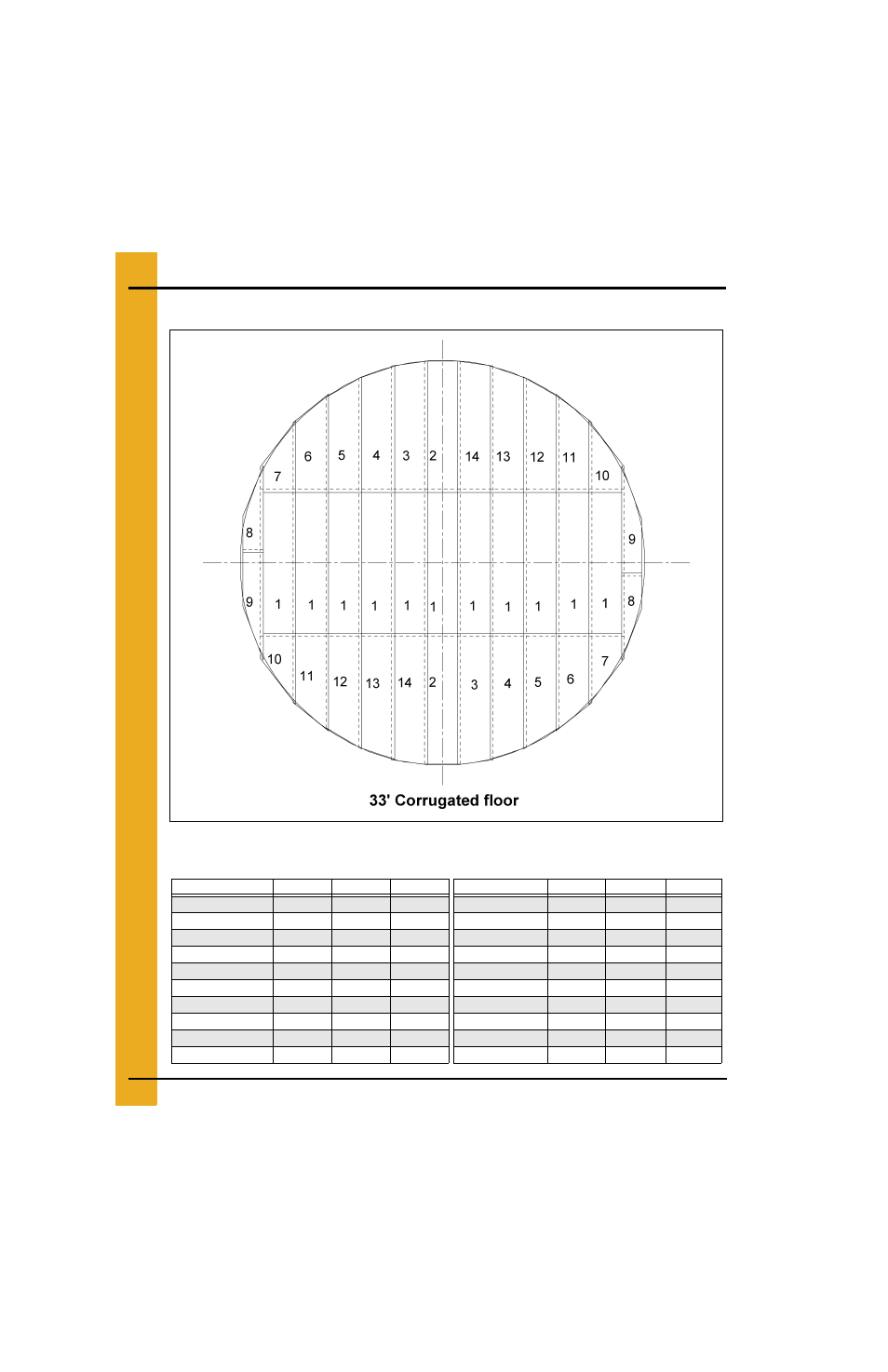

33' Bin Floor Layouts

Figure 5S

33' Diameter Monorail Lengths

Monorail Number

Sec 1

Sec 2

Sec 3

Monorail Number

Sec 1

Sec 2

Sec 3

1

59

264

59

11

159

159

-

2

58

264

58

12

152

152

-

3

57

264

57

13

143

143

-

4

56

264

56

14

134

134

-

5

53

264

53

15

246

-

-

6

51

264

51

16

220

-

-

7

47

264

47

17

189

-

-

8

43

264

43

18

148

-

-

9

38

264

38

19

87

-

-

10

165

165

-

20

36

-

-
